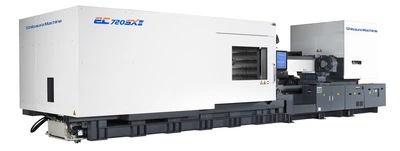

Shibaura Machine EC720SXIIIV70-i78Y
Have one to sell?
ConditionNew
New
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 650 T |
| Barrel Code | Y |
| Shot Volume (PS) | 114.9 oz |
| Shot Volume (PE) | 91.2 oz |
| Screw Diameter | 3.74" |
| Maximum Injection Pressure | 31800 psi |
| Maximum Holding Pressure | 26500 psi |
| Screw Speed STD | 127 rpm |
| Screw Torque STD | 5500 |
| Plasticizing Capacity (PS) STD | 3.5 oz |
| Nozzle Touch Force | 6.6 T |
| Tie Bar Distance H | 41.7" |
| Tie Bar Distance V | 37.8" |
| Platen Dimension H | 59.1" |
| Platen Dimension V | 55.1" |
| Clamp Stroke | 39.4" |
| Maximum Daylight | 80.7" |
| Mold Height Min | 17.7" |
| Mold Height Max | 41.3" |
| Ejector Force | 19.8 T |
| Ejector Stroke | 7.9" |
| Main Breaker Electric Capacity | 350 |
| Heater Capacity | 57.2 kw |
| Control | CNC |
| Dimensions | 33.5 x 8.2 x 8.7 Feet |
| Weight | 45.7 US Ton |
