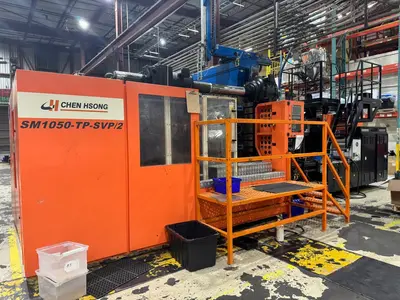

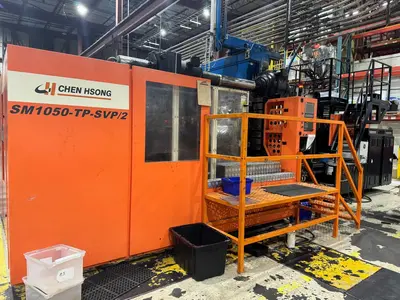

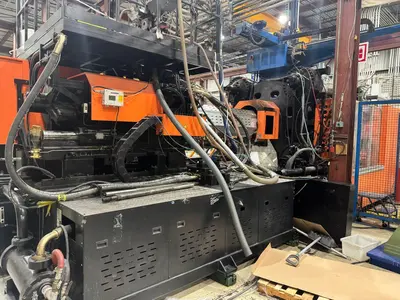

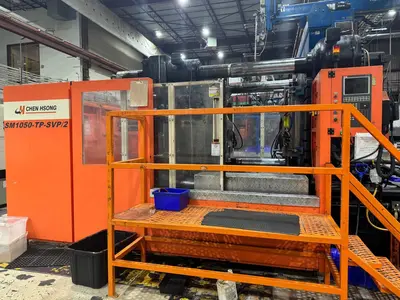

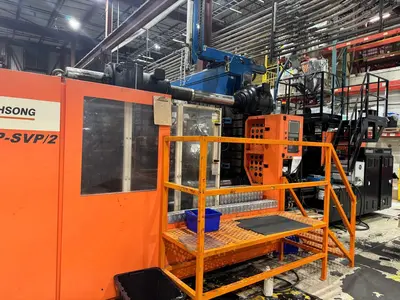

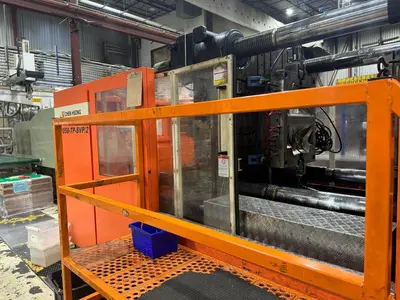

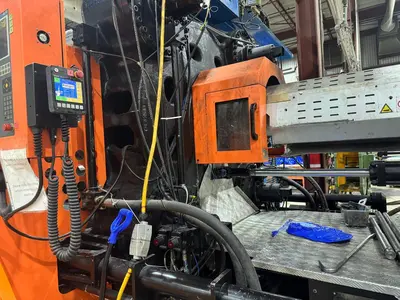

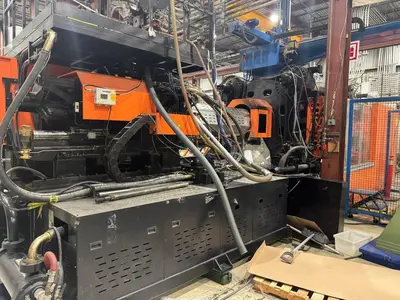

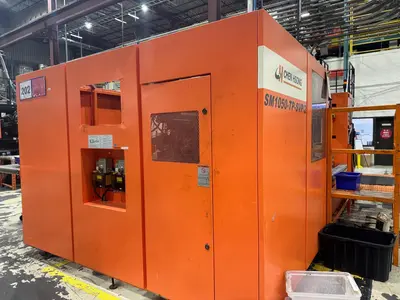

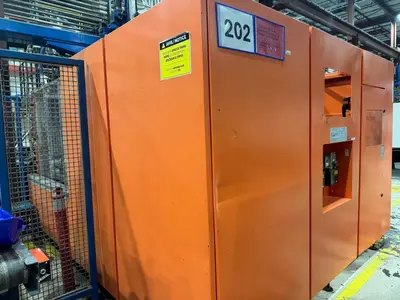

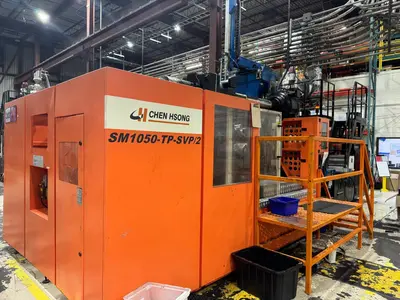

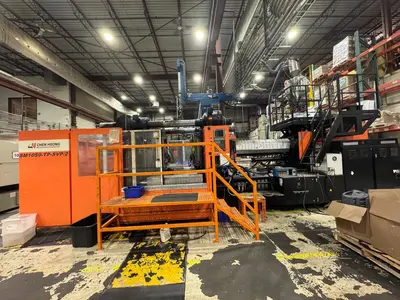

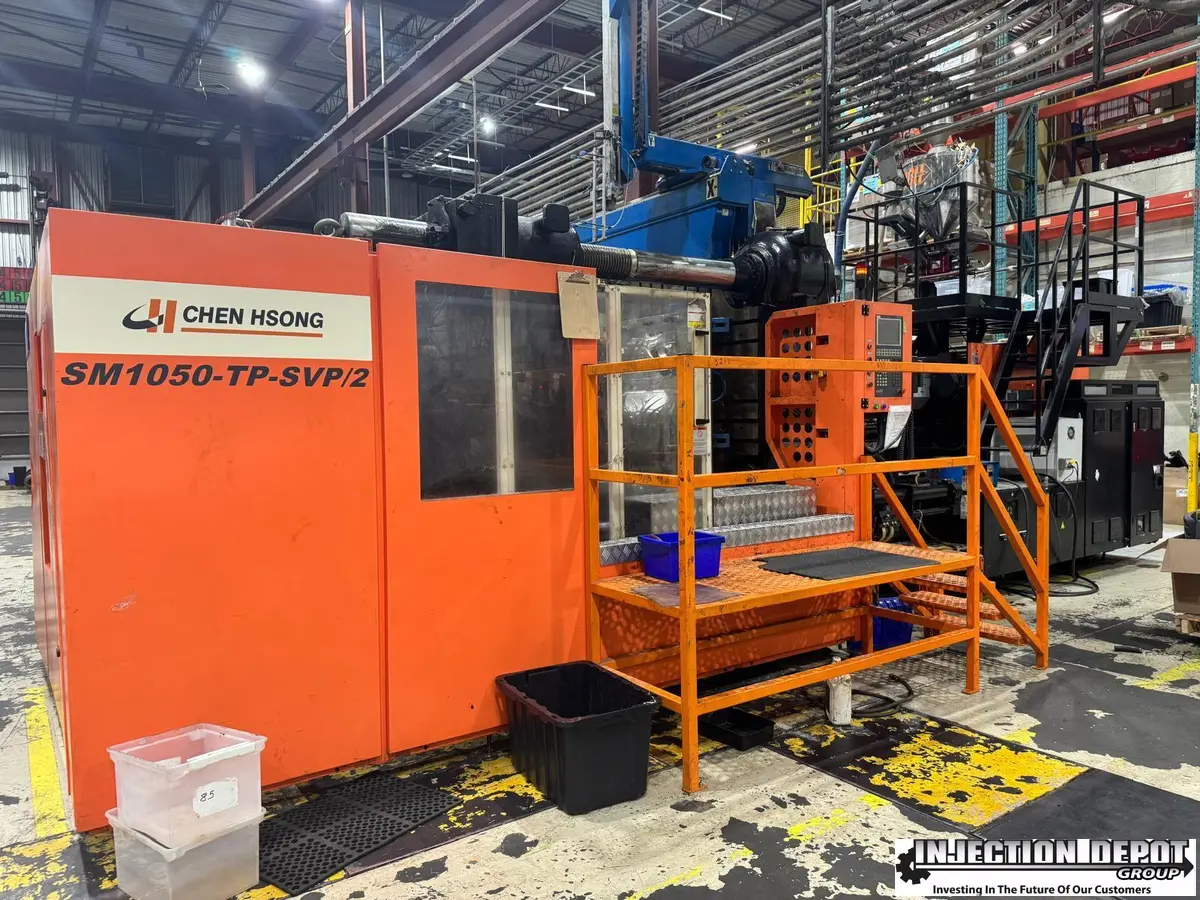

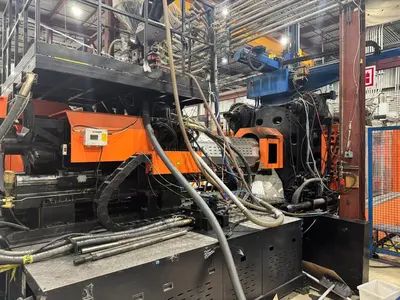

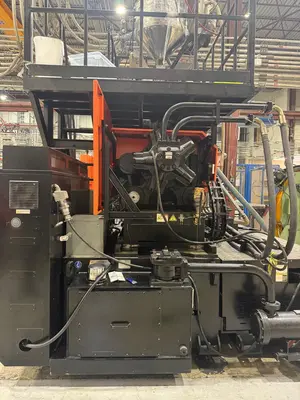

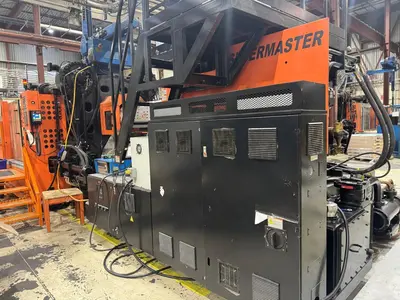

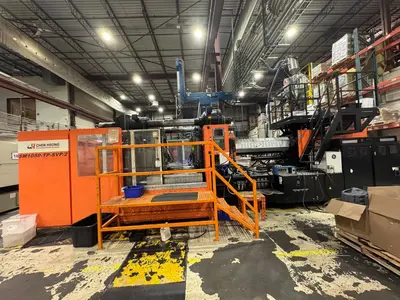

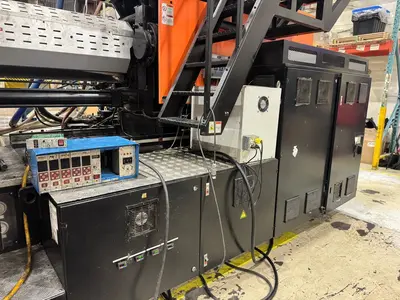

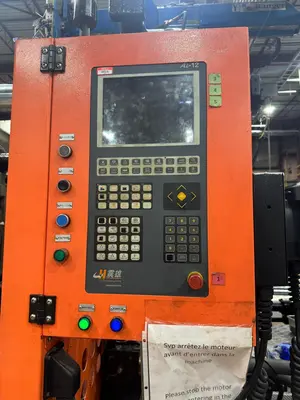

2016 Chen Hsong SM 1050- TP-SVP

⚙️ Chen Hsong SM 1050-TP-SVP — Complete Specification List
Year: 2016
Manufacturer: Chen Hsong
Model: SM 1050-TP-SVP
Series: Supermaster Two-Platen Servo Drive
Machine Type: Hydraulic servo-driven injection molding machine

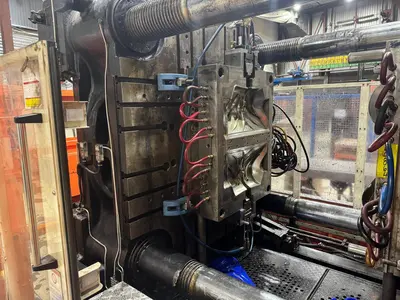

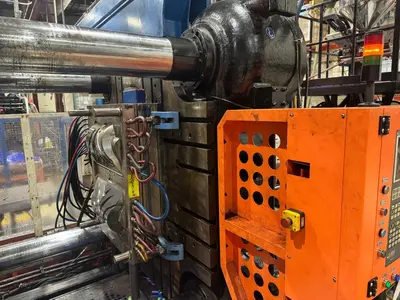

Clamping Unit
Clamping Force: 1,050 tons
Opening Stroke: 1,400 mm / 55.12 in
Space Between Tie Bars (H x V): 1,250 x 1,160 mm / 49.2 x 45.7 in
Platen Size (H x V): 1,820 x 1,730 mm / 71.7 x 68.1 in
Minimum Mold Thickness: 500 mm / 19.69 in
Maximum Mold Thickness: 1,250 mm / 49.21 in
Maximum Daylight: 2,650 mm / 104.33 in
Ejector Stroke: 300 mm / 11.81 in
Ejector Force: 22 tons / approx. 48,500 lb
Injection Unit
Screw Diameter: 98 mm / 3.86 in
Screw L/D Ratio: 22.0
Shot Volume: 3,771 cm³ / 230.1 in³
Shot Weight (PS): 3,430 g / 120.99 oz
Injection Pressure: 184 MPa / 26,687 psi
Injection Stroke: 500 mm / 19.69 in
Maximum Screw Speed: 130 RPM
Power and Electrical
Servo Motor Power: 112 kW
Electrical Heating Power: 48 kW
Heating Zones: 6 + 1
System Pressure: 17.5 MPa / 2,538 psi
Oil Tank Capacity: 1,800 L / 475.5 US gal
General Machine Information
Machine Dimensions (L x W x H): 10.1 x 3.3 x 2.8 m
Machine Dimensions (L x W x H): 33.14 x 10.83 x 9.19 ft
Machine Weight: 42 metric tons / approx. 92,594 lb
Machine Design: Two-platen clamping system
Drive System: Servo hydraulic pump system [Generated files saved to this conversation]
