2012 toshiba EC140SXV50

Name: INJECTION DEPOT
Address: ,, CA
Telephone: 1-877-737-7610

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

HORIZONTAL INJECTION MOULDING MACHINES

Manufacturer:

Model:

EC140SXV50-4

Year:

2012

Status:

For Sale

ImperialMetric

Type	All Electric	All Electric
Clamping Force Tonnage	149 T	135.171 t
Barrel Code	4B	4B
Shot Volume (PS)	8.1 oz	229.6 g
Screw Diameter	1.77"	44.958 mm
Maximum Injection Pressure	22900 psi
Maximum Holding Pressure	22900 psi
Screw Speed STD	285 rpm	285 RPM
Plasticizing Capacity (PS) STD	33.3 g	1.2 oz
Nozzle Touch Force	2 T	1.814 t
Tie Bar Distance H	20.1"	510.54 mm
Tie Bar Distance V	18.1"	459.74 mm
Platen Dimension H	28.3"	718.82 mm
Platen Dimension V	26.4"	670.56 mm
Clamp Stroke	15.7"	398.78 mm
Maximum Daylight	37.4"	949.96 mm
Mold Height Min	7.1"	180.34 mm
Mold Height Max	21.7"	551.18 mm
Ejector Force	3.3 T	2.994 t
Ejector Stroke	3.54"	89.916 mm
Main Breaker Electric Capacity	45	45
Heater Capacity	11.9 kw	11.9 kW
Injection Orientation	Horz	Horz

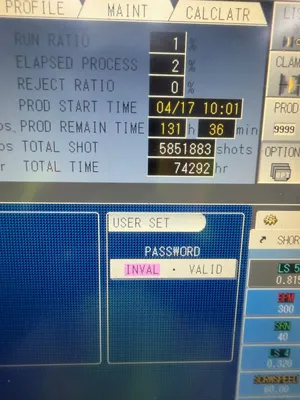

Hours	74,292 hr.	74,292 hr.
Control	CNC (InjectvisorV50)	CNC (InjectvisorV50)
