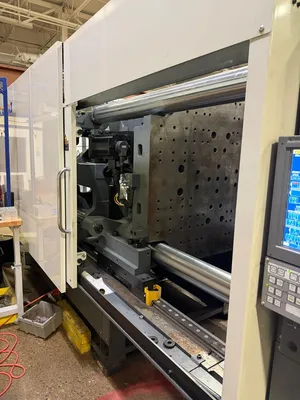

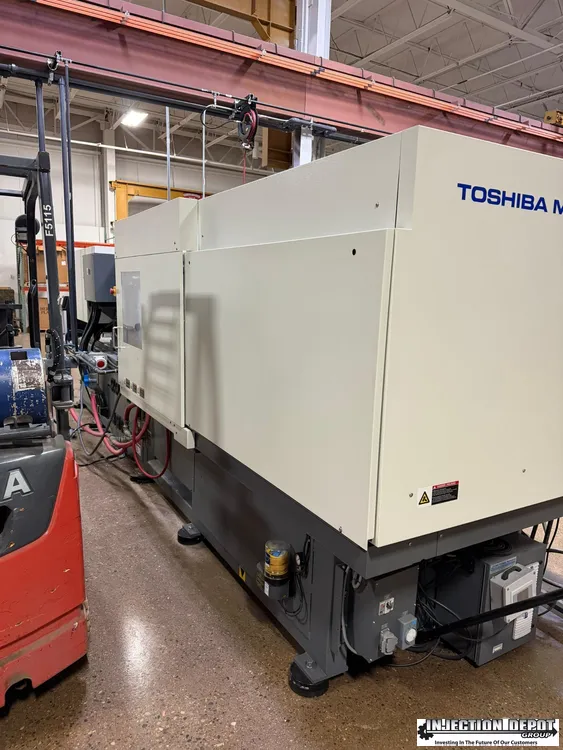

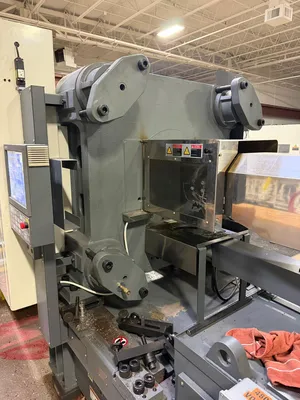

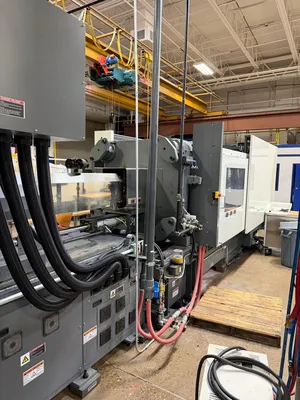

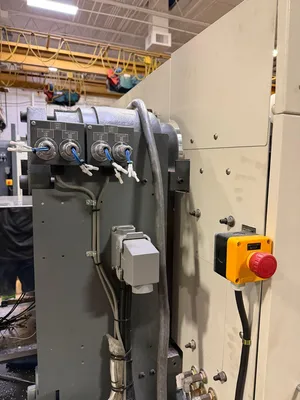

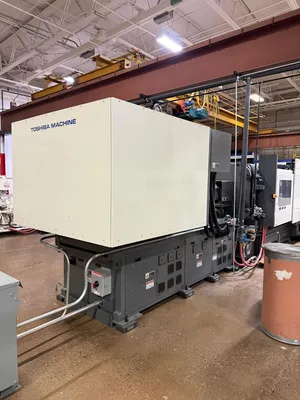

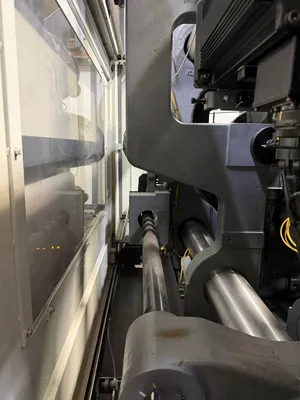

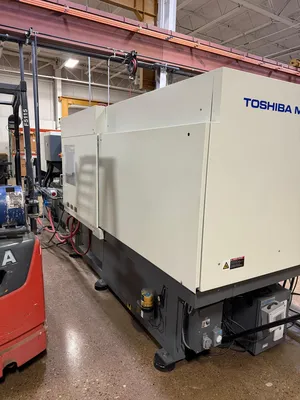

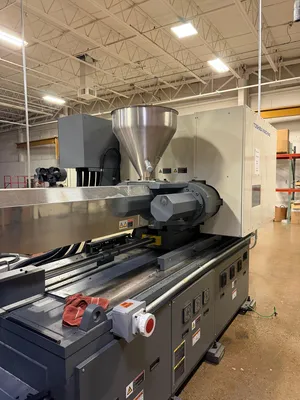

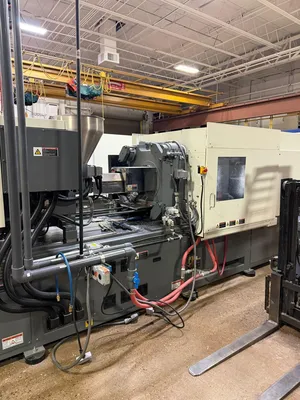

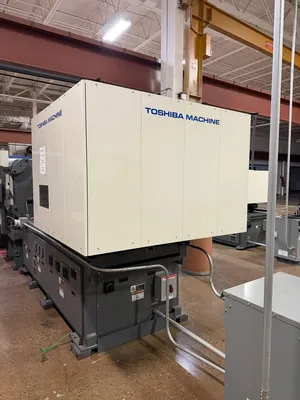

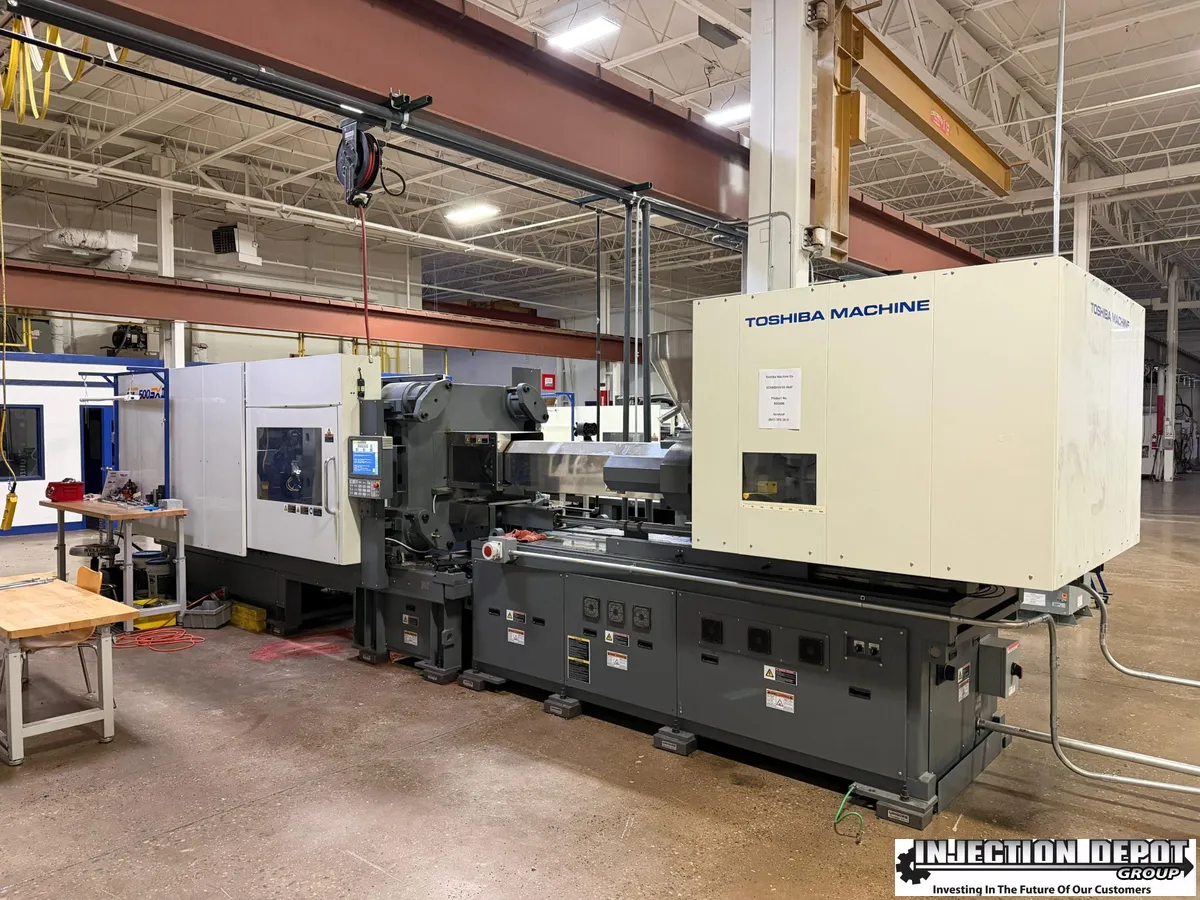

2019 Shibaura Machine EC500SXIIV5036AT

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionUsed
1 available
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC500SXIIV50-36AT
Year:
2019
Status:
For Sale
TypeAll ElectricAll Electric
Clamping Force Tonnage500 T453.593 t
Shot Volume (PS)61 oz1,729.3 g
Shot Volume (PE)48.3 oz1,369.3 g
Screw Diameter3.15"80.01 mm
Maximum Injection Pressure27600 psi
Maximum Holding Pressure27600 psi
Screw Speed STD170 rpm170 RPM
Screw Speed High Torque115 rpm115 RPM
Injection Rate STD8,043 ft³/min.227.8 m³/min.
Screw Torque STD33103310
Screw Torque High Speed46104610
Plasticizing Capacity (PS) STD94.4 oz2,676.2 g
Plasticizing Capacity (PS) High Torque61.1 oz1,732.2 g
Nozzle Touch Force6.6 T5.987 t
Tie Bar Distance H34.2"868.68 mm
Tie Bar Distance V31.8"807.72 mm

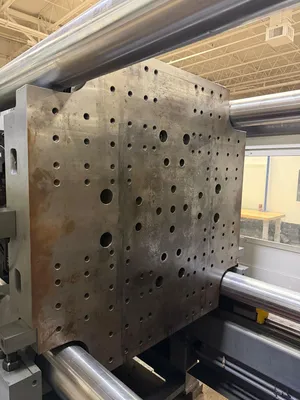

Platen Dimension H48.4"1,229.4 mm
Platen Dimension V45.7"1,160.8 mm
Clamp Stroke31.5"800.1 mm
Maximum Daylight70.9"1,800.9 mm
Mold Height Min13.8"350.52 mm
Mold Height Max39.4"1,000.8 mm
Ejector Force14.3 T12.973 t
Ejector Stroke7.1"180.34 mm
Power supply Volts230230
Main Breaker Electric Capacity200200
Heater Capacity34.3 kw34.3 kW
Injection OrientationHorzHorz

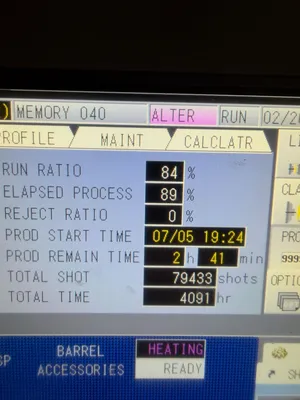

Hours4,091 hr.4,091 hr.

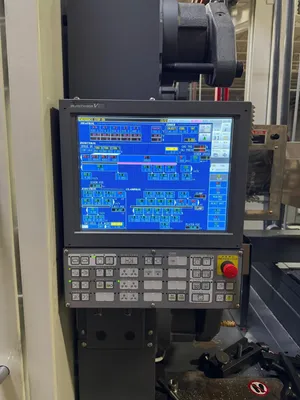

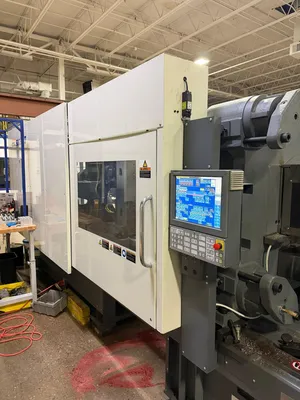

ControlCNC (InjectvisorV50)CNC (InjectvisorV50)
Dimensions28.0 x 7.0 x 7.2 Feet28.0 x 7.0 x 7.2 Feet
Weight26.4 US Ton26.4 US Ton
