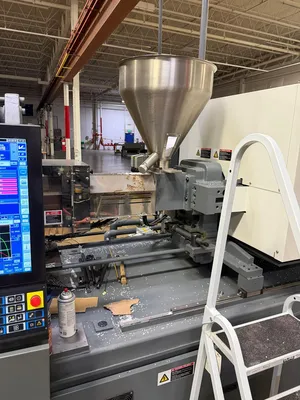

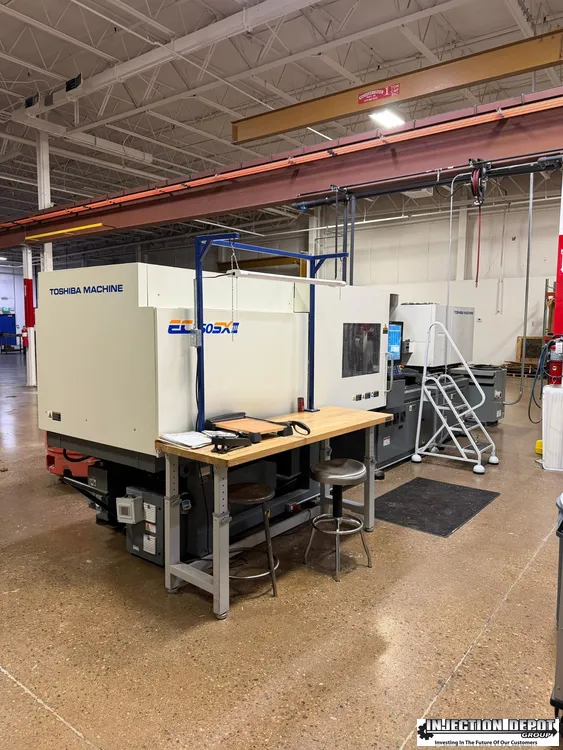

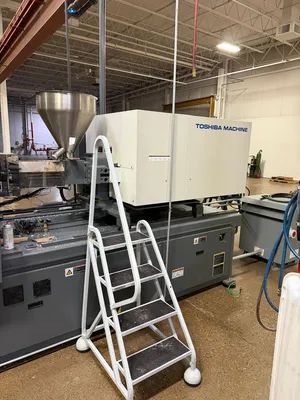

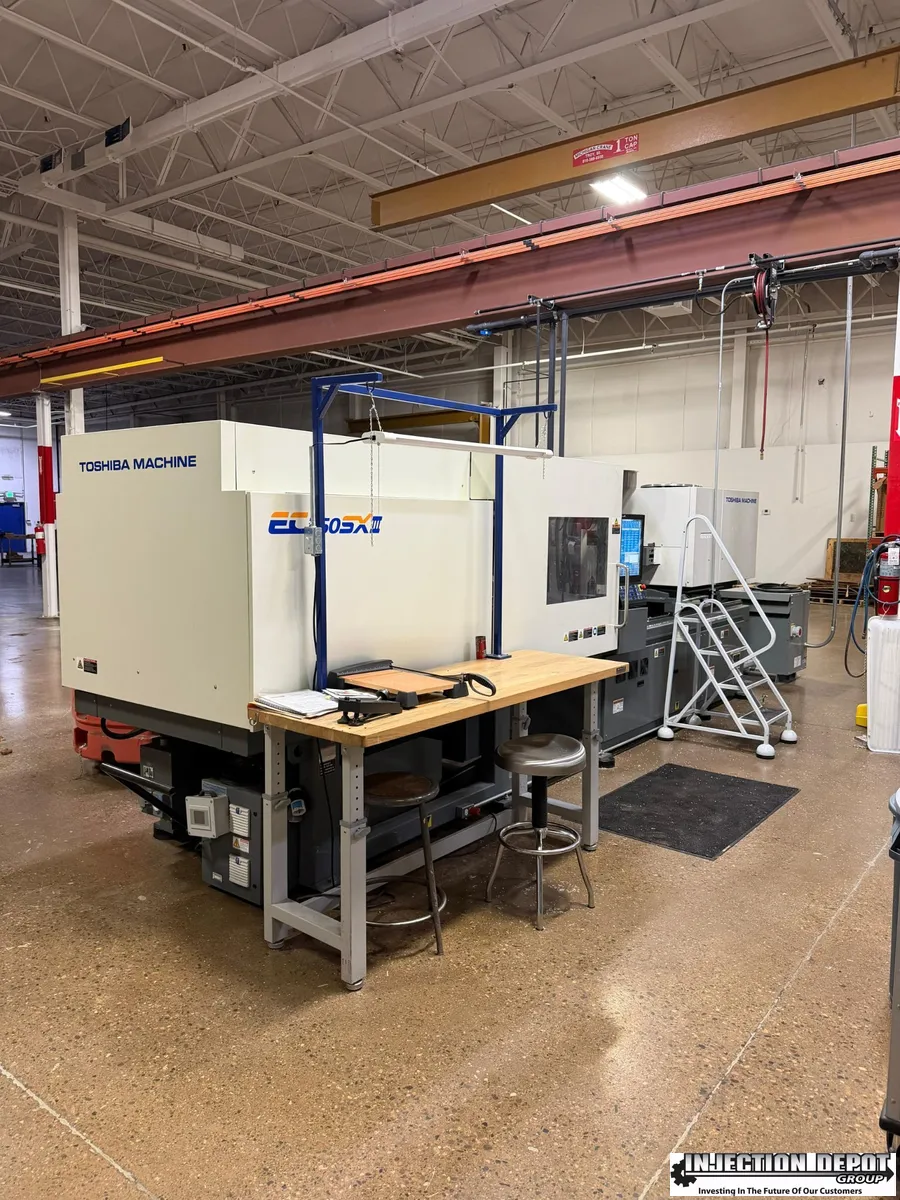

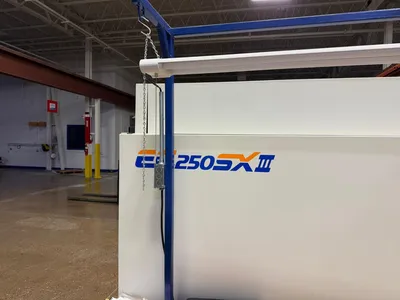

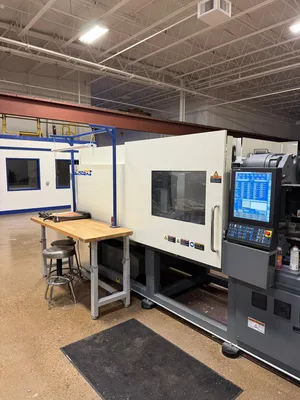

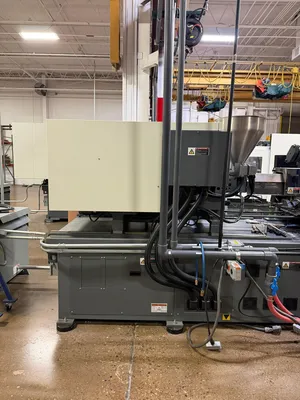

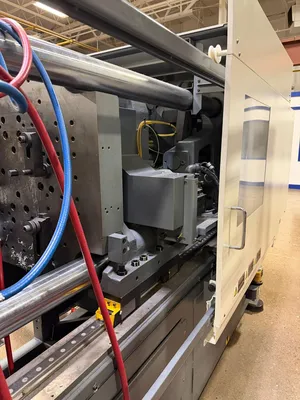

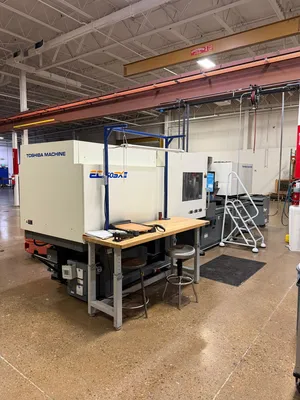

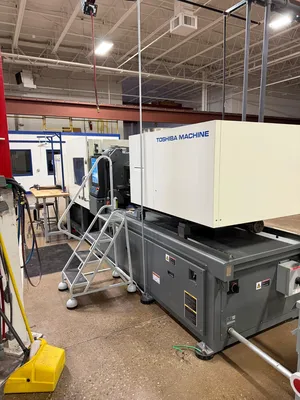

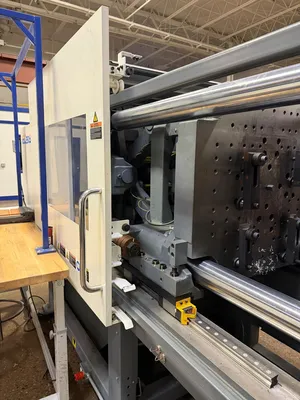

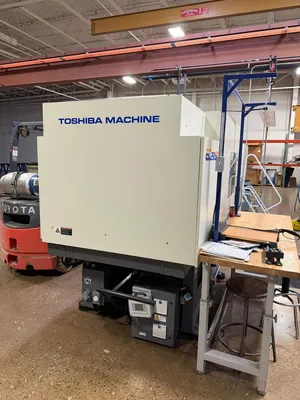

Shibaura Machine EC250SXIIV70-8A
Have one to sell?
ConditionUsed
1 available
DBG Anti Wear Screw Carbide Barrel

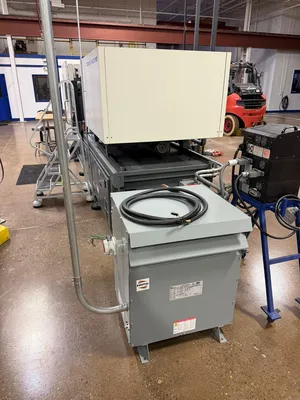

Transformer
Core Pull Unit B
Mounting Pads
Secondary Motor Disconnect
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 250 T |
| Barrel Code | 8A |
| Shot Volume (PS) | 12.7 oz |
| Shot Volume (PE) | 10.1 oz |
| Screw Diameter | 1.97" |
| Maximum Injection Pressure | 29000 psi |
| Maximum Holding Pressure | 29000 psi |
| Screw Speed STD | 255 rpm |
| Tie Bar Distance H | 24" |
| Tie Bar Distance V | 22" |

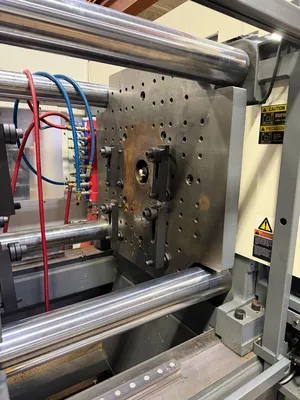

| Platen Dimension H | 34.6" |
| Platen Dimension V | 32.7" |
| Clamp Stroke | 21.7" |
| Maximum Daylight | 48.4" |
| Mold Height Min | 9.84" |
| Mold Height Max | 26.8" |
| Ejector Force | 5.5 T |
| Ejector Stroke | 5.12" |
| Injection Orientation | Horz |

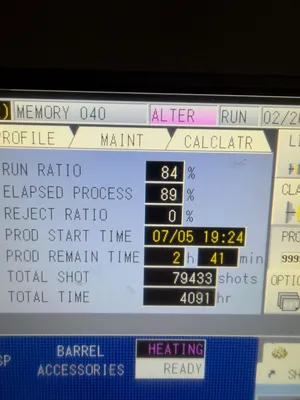

| Hours | 4,091 hr. |

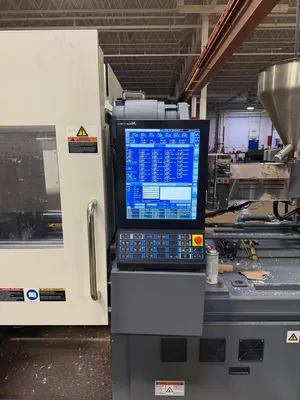

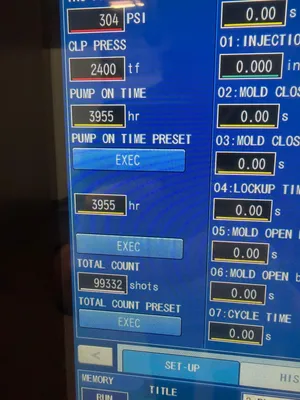

| Control | CNC (INJECTVISOR V 70) |
DBG Anti Wear Screw Carbide Barrel
Transformer
Core Pull Unit B
Mounting Pads
Secondary Motor Disconnect
