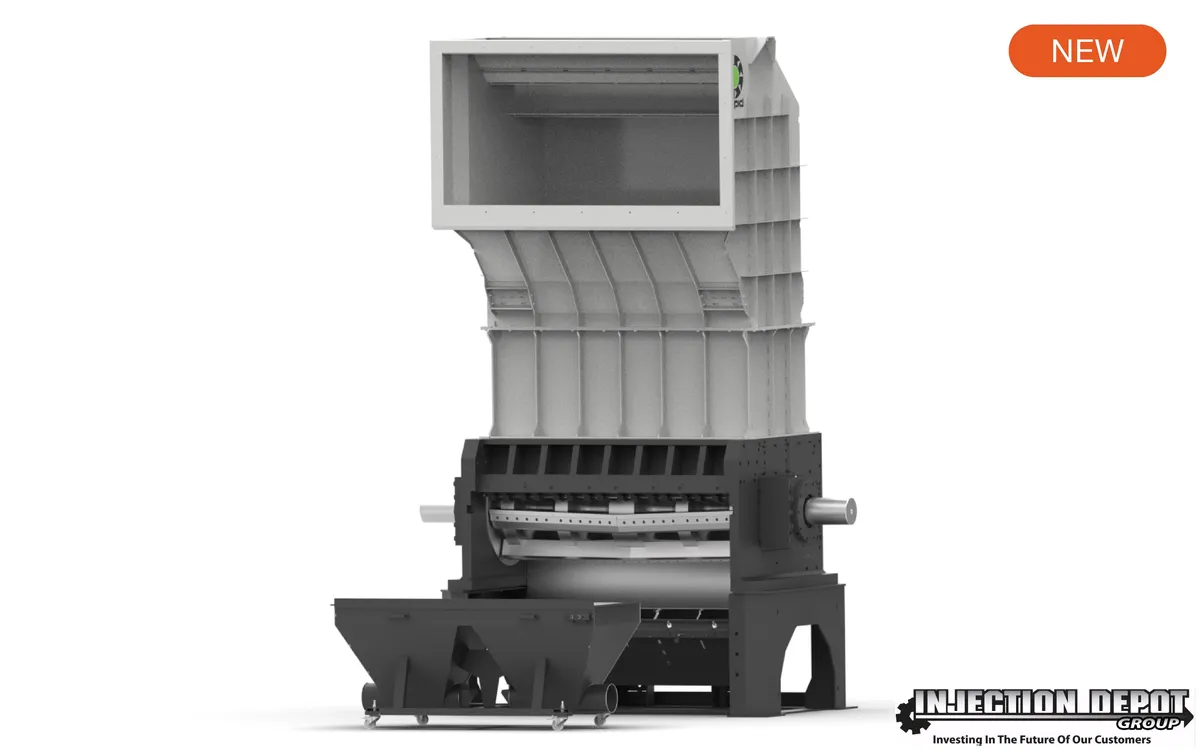

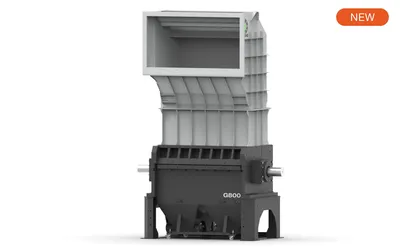

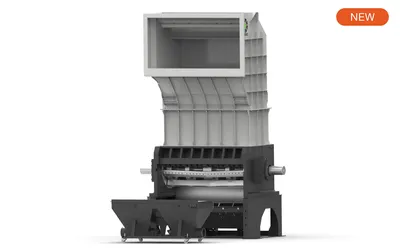

Rapid 800 Series is engineered for high-volume granulation, making it ideal for both central and in-line processing of large products. With a robust construction and advanced cutting technology, it combines reliable performance with safe, efficient maintenance. The series is also optimized for wet granulation applications.
Scissors cut for efficient cutting
Scissor cut technology ensures efficient, energy-saving cutting with less wear, providing consistent, precise results while reducing maintenance needs. This advanced design not only enhances performance over time but also improves overall reliability, making it ideal for both frequent and demanding use.
Patented knife holder system
The 800 Series features our patented knife holder system, allowing safe and fast knife changes from outside the granulator. This reduces physical strain, shortens service stops, lowers maintenance costs, and enhances safety – without compromising cutting precision or performance.
Reversible screen
Most granulation or cutting occurs at the screen surface. Hence it is extremely important to have the screen in good condition. A worn screen gets rounded hole edges and needs to be replaced with a new screen. Screens from Rapid are reversible (excluding special screens) which gives them double the life.
Rotor diameter mm 800
Rotor type 6-blade Beam
Rotating knives 24 (6x4)
Fixed knives 8 (2x4)
Cutterhouse Tagential / Pre cut (Optional) mm 2000x800
Motor (Standard) kW 132
Motor (Optional) kW 110 / 160 / 200 / 250 / 315
