Toshiba Machine EC85SXV50-U22-2A

Name: INJECTION DEPOT GROUP
Address: ,, CA
Telephone: 1-877-737-7610

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

HORIZONTAL INJECTION MOULDING MACHINES

Manufacturer:

Model:

EC85SXV50-U22-2A

Year:

2015

Status:

For Sale

ImperialMetric

Type	All Electric	All Electric
Clamping Force Tonnage	85 T	77.111 t
Shot Volume (PS)	3.3 oz	93.6 g
Screw Diameter	1.26"	32.004 mm
Maximum Injection Pressure	31900 psi
Maximum Holding Pressure	31900 psi
Plasticizing Capacity (PS) STD	6.2 oz	175.8 g
Tie Bar Distance H	16.1"	408.94 mm
Tie Bar Distance V	14.2"	360.68 mm
Platen Dimension H	22.8"	579.12 mm
Platen Dimension V	20.9"	530.86 mm
Clamp Stroke	11.8"	299.72 mm
Maximum Daylight	30.3"	769.62 mm
Mold Height Min	5.9"	149.86 mm
Mold Height Max	18.5"	469.9 mm
Ejector Force	2.2 T	1.996 t
Ejector Stroke	2.8"	71.12 mm
Heater Capacity	6.8 kw	6.8 kW
Injection Orientation	Horz	Horz
Machine under power	Under power running with mould	Under power running with mould

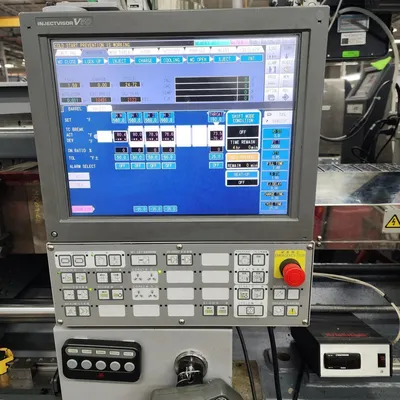

Control	CNC (InjectvisorV50)	CNC (InjectvisorV50)
Dimensions	13.5 x 3.9 x 5.2	13.5 x 3.9 x 5.2
Weight	7,200 lbs	7,200 lbs
