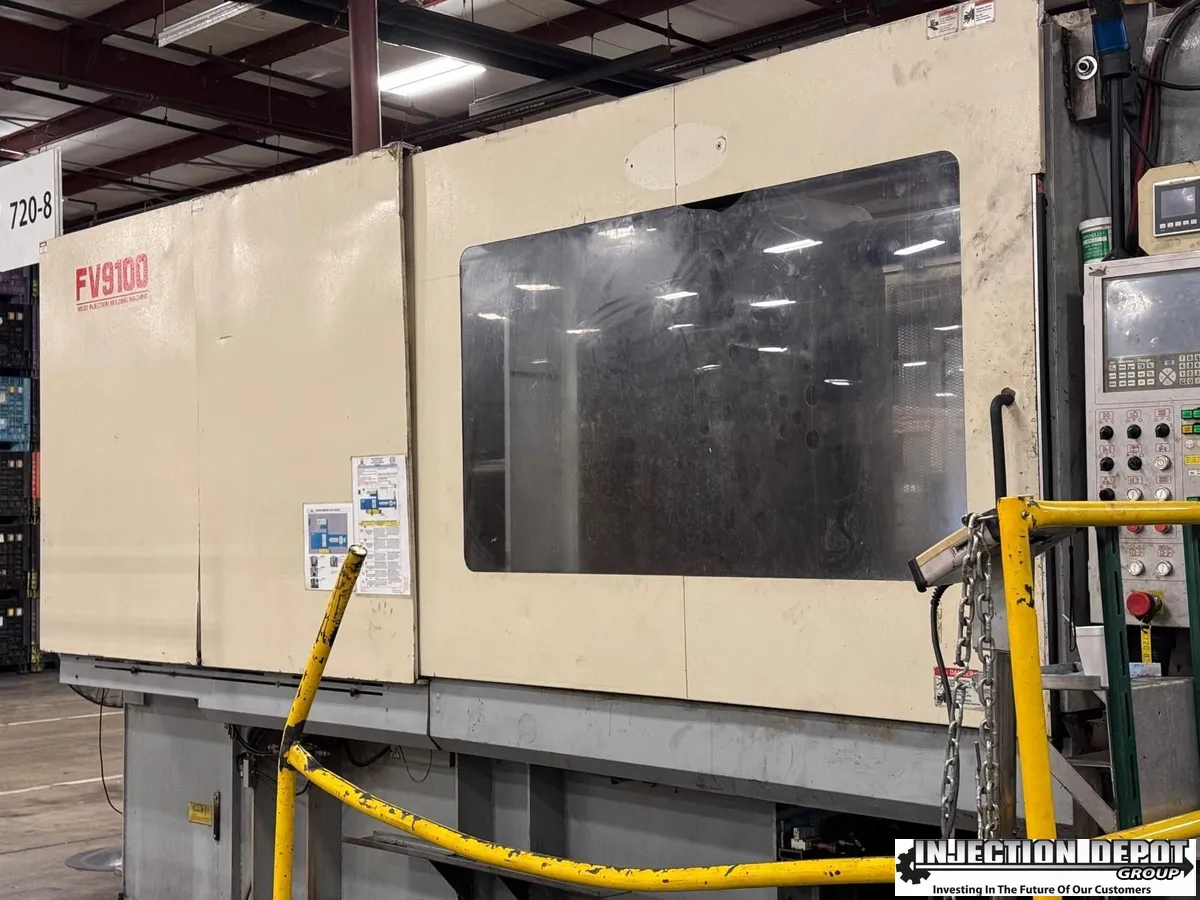

2002 NISSEI FV9100-400L
Have one to sell?
ConditionUsed
1 available
Min Mold Thickness 17.7"
Controls NC9300T
Imperial
| Type | Hydraulic |
| Clamping Force Tonnage | 720 T |
| Shot Volume (PS) | 160 oz |
| Screw Diameter | 4.41" |
| Maximum Injection Pressure | 24225 psi |
| Maximum Holding Pressure | 24225 psi |
| Injection Rate STD | 0.3 ft³/min. |
| Injection Rate High Speed | 0 ft³/min. |
| Tie Bar Distance H | 43.3" |
| Tie Bar Distance V | 43.3" |
| Platen Dimension H | 60.6" |
| Platen Dimension V | 60.6" |
| Clamp Stroke | 37.4" |
| Maximum Daylight | 75.2" |
| Mold Height Min | 17.7" |
| Mold Height Max | 39.4" |
| Ejector Force | 19.8 T |
| Ejector Stroke | 7.6" |
| Power supply Volts | 480 |
| Injection Orientation | Horz |
| Machine under power | not under power in storage |
| Control | CNC (NC9300T) |
Min Mold Thickness 17.7"
Controls NC9300T
