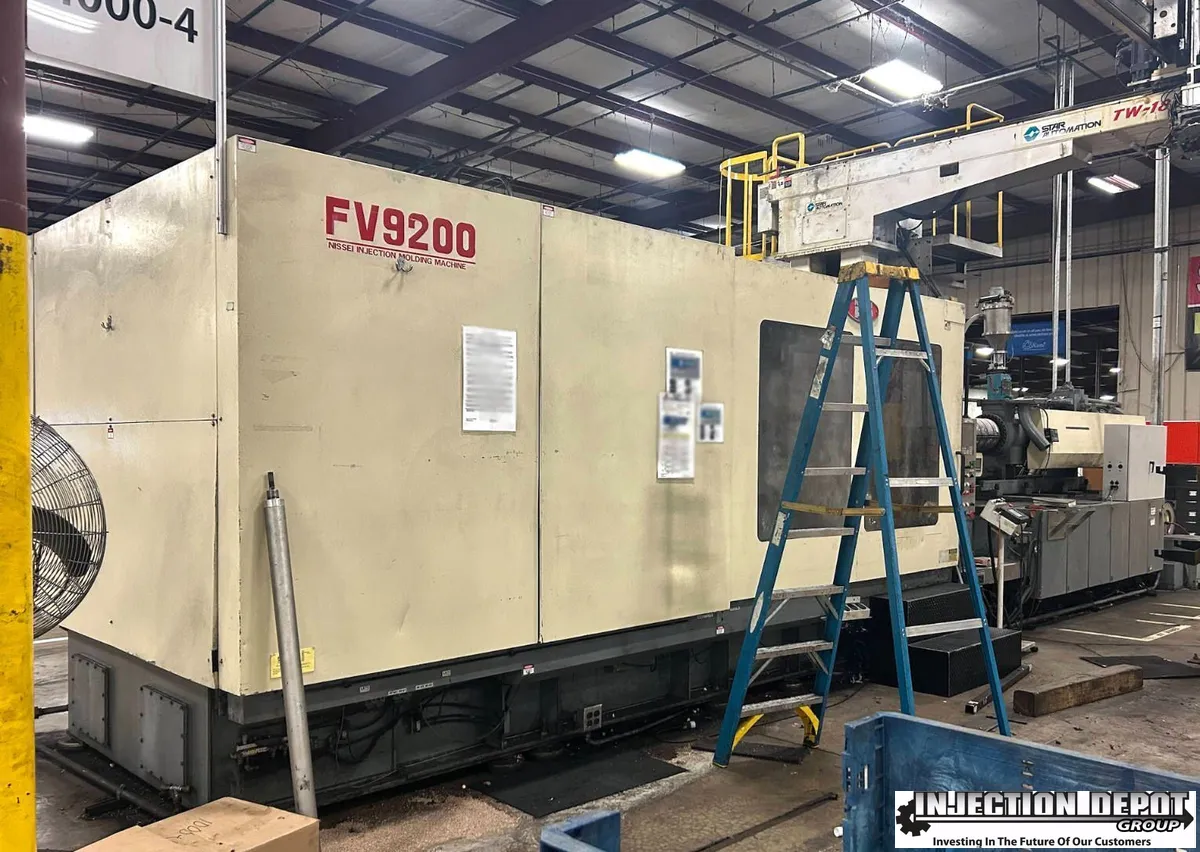

1999 1000 TON NISSEI FV9200-600L
Have one to sell?
ConditionUsed
1 available
| Yushin Robot can be purchased at Additional cost |
Imperial
| Type | Servo Hydraulic |
| Clamping Force Tonnage | 943 T |
| Shot Volume (PS) | 203.9 oz |
| Screw Diameter | 4.92" |
| Maximum Injection Pressure | 24300 psi |
| Maximum Holding Pressure | 24300 psi |
| Tie Bar Distance H | 52.4" |
| Tie Bar Distance V | 52.4" |
| Platen Dimension H | 70.8" |
| Platen Dimension V | 70.8" |
| Maximum Daylight | 88.9" |
| Mold Height Min | 19.7" |
| Mold Height Max | 42.3" |
| Ejector Stroke | 7.8" |
| Power supply Volts | 575 |
| Injection Orientation | Horz |
| Control | CNC (NC9300T) |
| Yushin Robot can be purchased at Additional cost |
