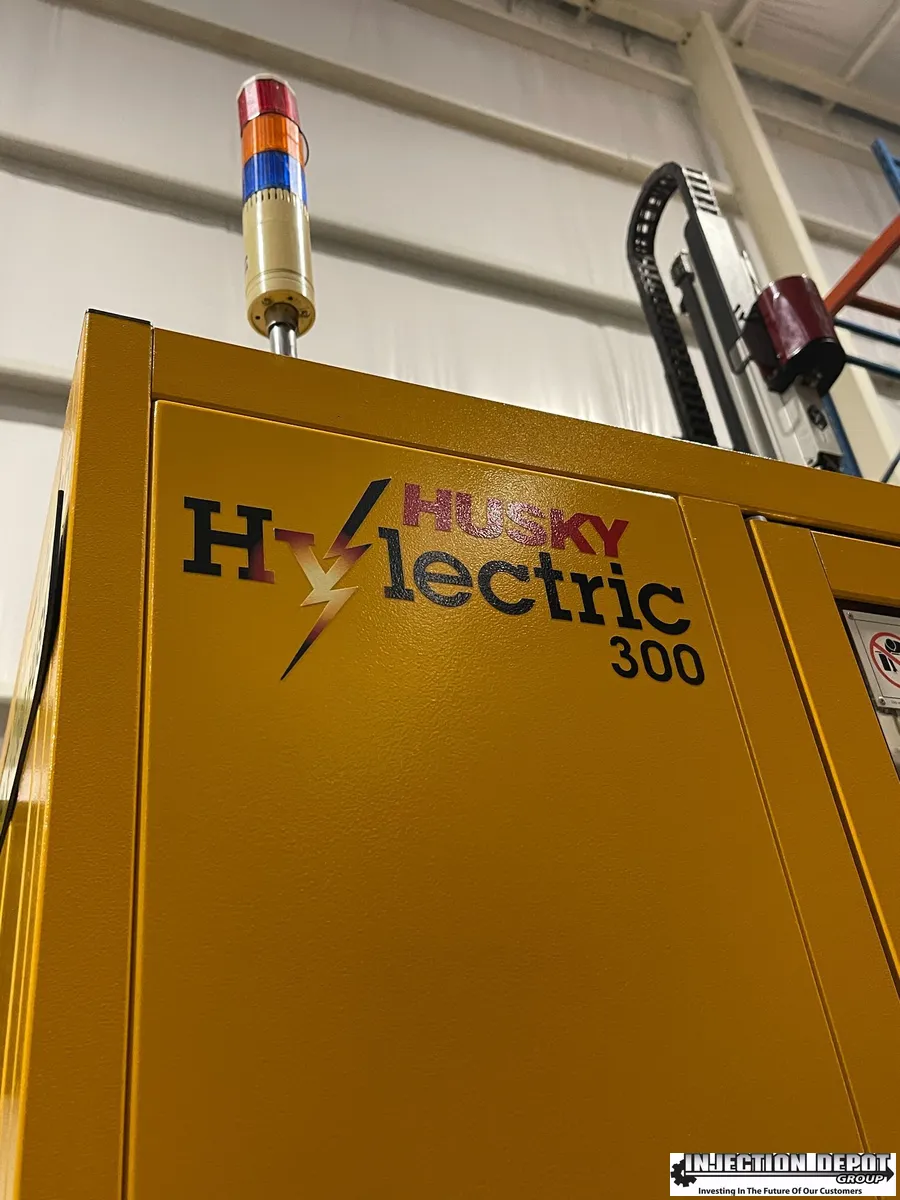

2014 Husky Hyelectric H300 RS80/65
Have one to sell?
ConditionUsed
1 available
Stack mold capable
Good working Order
337 U.S. tons-force
Tie-bar spacing 30.7 × 30.7 in.
Platen size 42.5 × 44.5 in.
Clamp stroke 23.6–42.3 in.
Mold shut height 11.8–30.5 in.
Maximum daylight 54.1 in.
Ejector stroke 5.9 in.
Ejector force 16,400 lbf
Screw diameter 2.56 in.
Screw L/D ratio 25:1
Injection stroke 13.8 in.
Injection capacity 70.9 in³
Maximum shot weight 37.2 oz. of polystyrene
Injection pressure 27,470 psi
Barrel heat capacity 43 kW / 57.6 hp
Control zones 5
Dry-cycle time 2.4 seconds
Overall length 29.8 ft
Overall width 7.0 ft
Overall height 8.3 ft
Approximate machine weight 46,300 lb.
Stack mold capable
Stack mold capable
Good working Order
337 U.S. tons-force
Tie-bar spacing 30.7 × 30.7 in.
Platen size 42.5 × 44.5 in.
Clamp stroke 23.6–42.3 in.
Mold shut height 11.8–30.5 in.
Maximum daylight 54.1 in.
Ejector stroke 5.9 in.
Ejector force 16,400 lbf
Screw diameter 2.56 in.
Screw L/D ratio 25:1
Injection stroke 13.8 in.
Injection capacity 70.9 in³
Maximum shot weight 37.2 oz. of polystyrene
Injection pressure 27,470 psi
Barrel heat capacity 43 kW / 57.6 hp
Control zones 5
Dry-cycle time 2.4 seconds
Overall length 29.8 ft
Overall width 7.0 ft
Overall height 8.3 ft
Approximate machine weight 46,300 lb.
Stack mold capable
