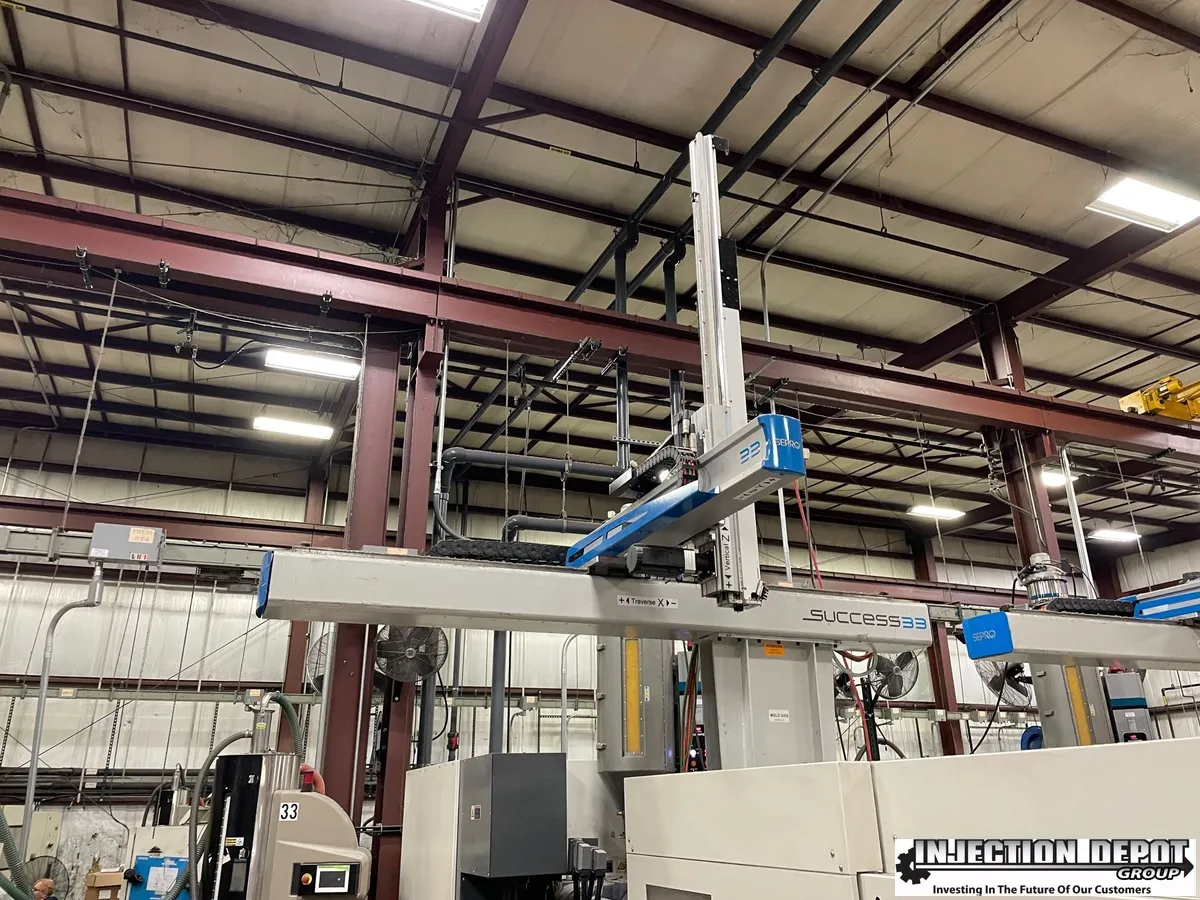

2018 Sepro Success 33

- R1 Rotation supplied but removed for application
- Two (2) Vacuum Circuits required for the application
- Four (4) Pressure Circuits required for the application
- Orientation - The main beam of the robot will be perpendicular to the IMM
- Mounting - The robot will be mounted to the top of the stationary
platen of IMM through a riser weldment.

- External Support Leg or Reinforced Riser is required and included
- Mold clamping force– Indications: US tons 350 - 900
- Horizontal stroke (inches) : 78.7 - 275.6
- Kick Stroke – 35.43 inches
- Maximum instantaneous speed (ft/s) : 6.56
- Demold stroke (inches): 35.4 - 43.3 (LD)
- Maximum instantaneous speed (ft/s): 6.56
- Vertical direct arm : YES
- Vertical stroke (inches) : 63
- Maximum instantaneous speed (ft/s) : 9.84
- R1 pneumatic rotation: (0-90°)
- Maximum load (parts + EOAT) (lbs): 33 - 44 lbs
- Compact beam-mounted control cabinet
- TOUCH 2 control system
