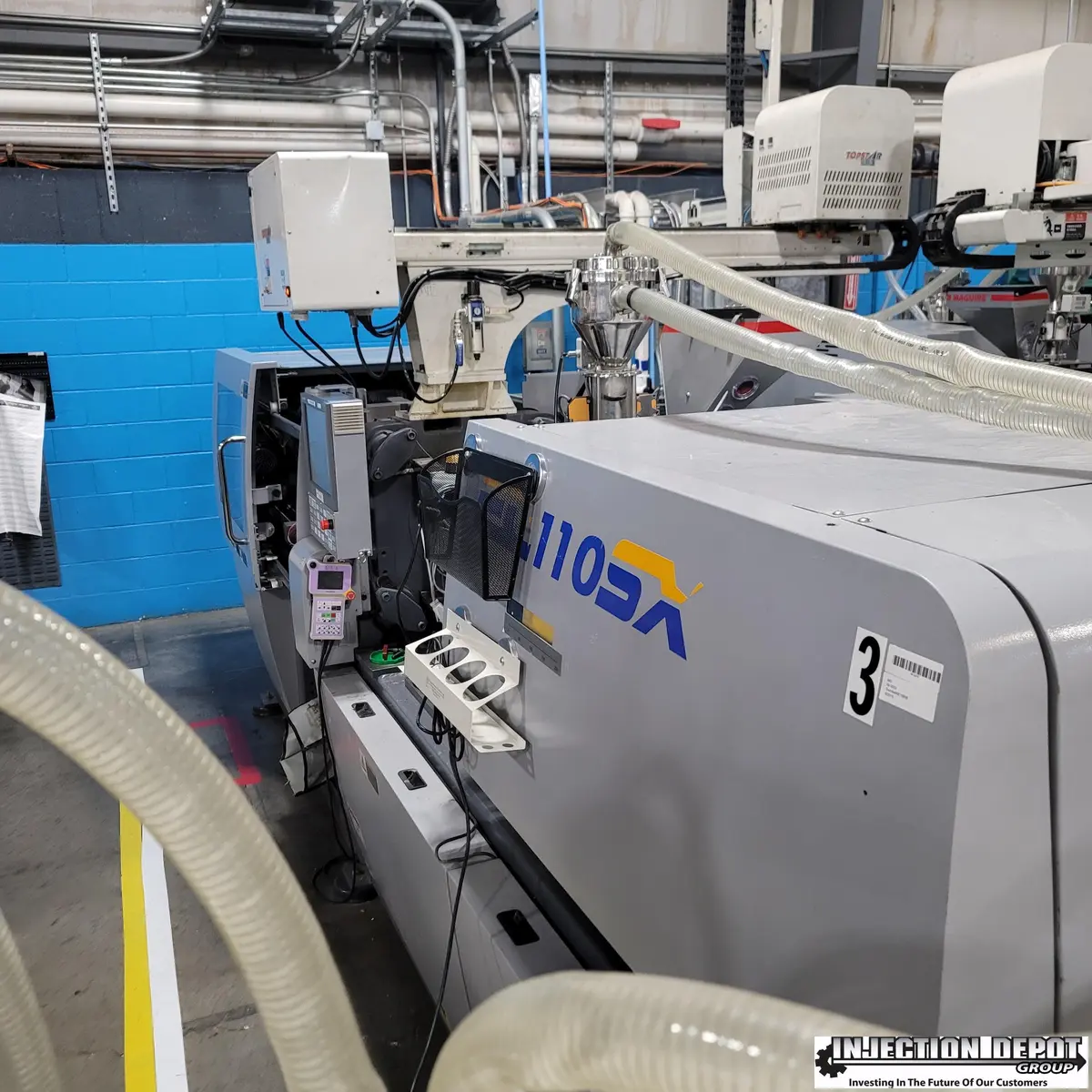

2015 TOSHIBA MACHINE EC110SXV-4

Name: INJECTION DEPOT GROUP
Address: ,, CA
Telephone: 1-877-737-7610

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

HORIZONTAL INJECTION MOULDING MACHINES

Manufacturer:

Model:

EC110SXIIV50-U34-4A

Year:

2015

Status:

For Sale

ImperialMetric

Type	All Electric	All Electric
Clamping Force Tonnage	110 T	99.79 t
Barrel Code	4A	4A
Shot Volume (PS)	6.5 oz	184.3 g
Shot Volume (PE)	6.5 oz	184.3 g
Screw Diameter	1.57"	39.878 mm
Maximum Injection Pressure	22900 psi
Maximum Holding Pressure	22900 psi
Screw Speed STD	320 RPM	320 rpm
Injection Rate STD	15.3 ft³/min.	0.4 m³/min.
Injection Rate High Speed	26.8 ft³/min.	0.8 m³/min.
Plasticizing Capacity (PS) STD	1.1 oz	31.2 g
Nozzle Touch Force	1.3 T	1.179 t
Tie Bar Distance H	18.1"	459.74 mm
Tie Bar Distance V	16.1"	408.94 mm
Platen Dimension H	26"	660.4 mm
Platen Dimension V	24"	609.6 mm
Clamp Stroke	13.8"	350.52 mm
Maximum Daylight	35.4"	899.16 mm
Mold Height Min	7.1"	180.34 mm
Mold Height Max	21.7"	551.18 mm
Ejector Force	3.3 T	2.994 t
Ejector Stroke	3.5"	88.9 mm
Power supply Volts	230	230
Injection Orientation	Horz	Horz
Hours	40,000 hr.	40,000 hr.
Machine under power	Under Power no Mould in Machine	Under Power no Mould in Machine
Control	CNC (InjectvisorV50)	CNC (InjectvisorV50)
Dimensions	16.1 x 4.3 x 5.6	16.1 x 4.3 x 5.6
Weight	9400 LBS	9400 LBS

Hydraulic Core-Pull Power Unit 7GPM @ 1,000psi
Anti-wear single flight screw & Tungsten Carbide Barrel
