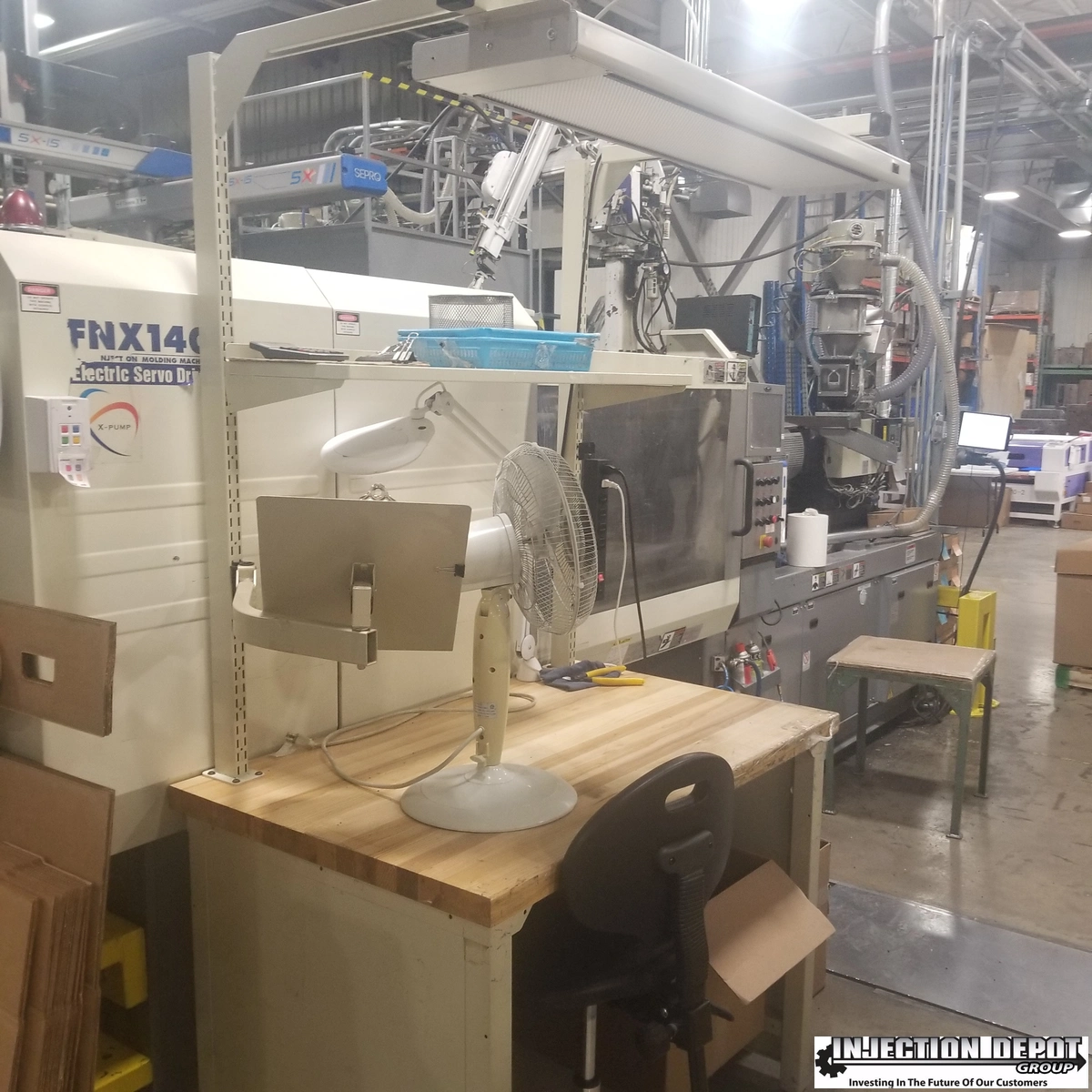

2011 Nissei FNX140-36A

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionUsed
1 available
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
NISSEI
Model:
FNX 140-36A
Condition:
Good
Year:
2011
Status:
For Sale
TypeServo HydraulicServo Hydraulic
Clamping Force Tonnage154 T139.707 t
Barrel CodeAA
Shot Volume (PS)9.6 oz272.2 g
Screw Diameter1.77"44.958 mm
Maximum Injection Pressure30080 psi
Screw Speed STD240 RPM240 rpm
Injection Rate STD0 ft³/min.238 SCCM
Plasticizing Capacity (PS) STD181 lb82,100.3 g
Nozzle Touch Force3.8 T3.447 t
Tie Bar Distance H20.1"510.54 mm
Tie Bar Distance V20.1"510.54 mm
Platen Dimension H28.7"728.98 mm
Platen Dimension V28.7"728.98 mm
Clamp Stroke23.6"599.44 mm
Maximum Daylight33.5"850.9 mm
Mold Height Min13.4"340.36 mm
Ejector Force5.4 T4.899 t
Ejector Stroke3.5"88.9 mm
Power supply Volts230230
Heater Capacity15.5 kW15.53 kw
Injection OrientationHorzHorz
Hours47,506 hr.47,506 hr.
Machine under powernot under power in plantnot under power in plant
ControlCNC (TACT)CNC (TACT)
DimensionsFT. L17.6 X W4.0 X H 6.15FT. L17.6 X W4.0 X H 6.15

Double core pull
Air blow
