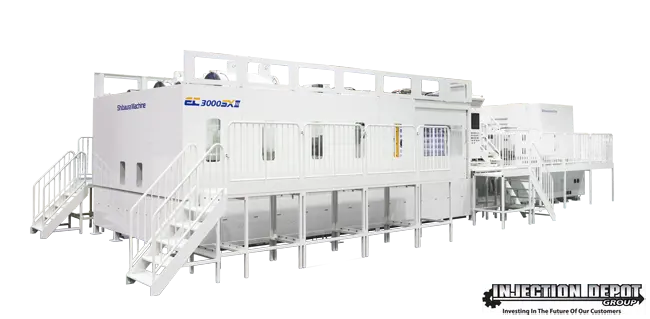

Shibaura Machine EC3350SXIIIV70-i215A

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC3350SXIIIV70-i215A
Condition:
Build To Order
Status:
For Sale
TypeAll ElectricAll Electric
Clamping Force Tonnage3,350 T3,039.072 t
Barrel CodeAA
Shot Volume (PS)384 oz10,886.2 g
Shot Volume (PE)304 oz8,618.2 g
Screw Diameter5.51"139.95 mm
Maximum Injection Pressure26100 psi
Maximum Holding Pressure21700 psi
Screw Speed STD90 RPM90 rpm
Screw Speed High Torque11,720 RPM11720 rpm
Injection Rate STD122 ft³/min.3.5 m³/min.
Tie Bar Distance H83"2,108.2 mm
Tie Bar Distance V71.2"1,808.5 mm
Platen Dimension H118.1"2,999.7 mm
Platen Dimension V92.5"2,349.5 mm
Clamp Stroke70.8"1,798.3 mm
Maximum Daylight145.6"3,698.2 mm
Mold Height Min39.3"998.22 mm
Mold Height Max74.8"1,899.9 mm
Ejector Force48.5 T43.999 t
Ejector Stroke13.7"347.98 mm
Heater Capacity85 kW85 kw
Injection OrientationHorzHorz
ControlCNC (V70)CNC (V70)
Dimensions54.1 x 15.1 x 13.2 FT54.1 x 15.1 x 13.2 FT
Weight221 US TON221 US TON
