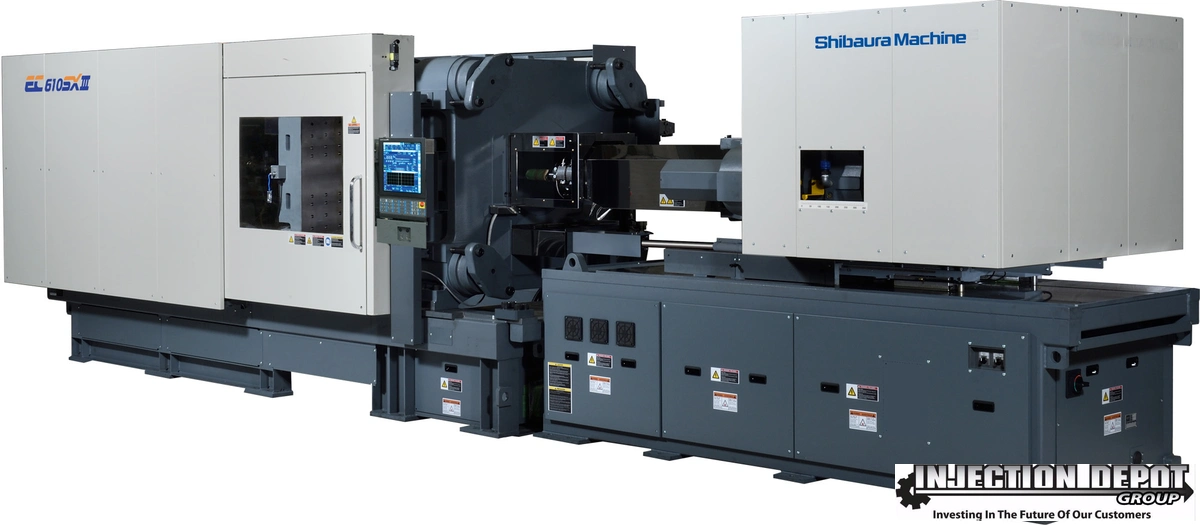

Shibaura Machine EC610SXIIIV70-i61Y

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC610SXIIIV70-i61Y
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market.

TypeAll ElectricAll Electric
Clamping Force Tonnage610549.755 t
Barrel CodeYY
Shot Volume (PS)72.5 oz2,055.3 g
Shot Volume (PE)57.5 oz1,630.1 g
Screw Diameter3.1496"80 mm
Maximum Injection Pressure36300 psi
Maximum Holding Pressure30400 psi
Screw Speed STD140 RPM140 rpm
Injection Rate STD1063 cm3/sec21.3 m³/min.
Screw Torque STD5500 NxM5500 NxM
Plasticizing Capacity (PS) STD77.8 g/sec77.7 g
Plasticizing Capacity (PS) High Torque80.6 g/sec0 g
Nozzle Touch Force6.6 T5.987 t
Tie Bar Distance H38.1"967.74 mm
Tie Bar Distance V35.8"909.32 mm
Platen Dimension H53.7"1,364 mm
Platen Dimension V51.2"1,300.5 mm
Clamp Stroke35.4"899.16 mm
Maximum Daylight74.8"1,899.9 mm
Mold Height Min15.7"398.78 mm
Mold Height Max39.4"1,000.8 mm
Ejector Force14.3 T12.973 t
Ejector Stroke7.1"180.34 mm
Power supply Volts230230
Main Breaker Electric Capacity200 va
Heater Capacity34.3 kW34.3 kw
ControlCNCCNC
Dimensions29.0 x 7.5 x 7.7 Feet29.0 x 7.5 x 7.7 Feet
Weight31.4 US Ton31.4 US Ton
