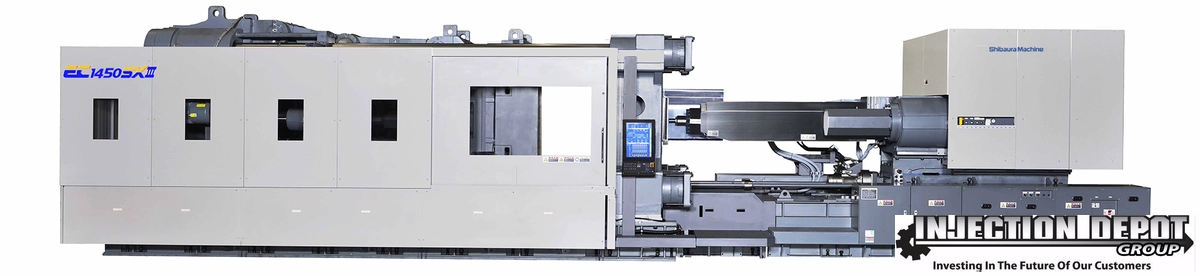

Shibaura Machine EC1600SXIIIV70-i155B

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC1600SXIIIV70-i155B
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage16001,776.27 t
Barrel CodeBB
Shot Volume (PS)343.5 oz9,738.1 g
Shot Volume (PE)272.3 oz7,719.6 g
Screw Diameter5.51"139.95 mm
Maximum Injection Pressure20700 psi
Maximum Holding Pressure17200 psi
Screw Speed STD90 RPM90 rpm
Screw Speed High Torque114 RPM114 rpm
Injection Rate STD2070 cm3/sec3.6 m³/min.
Screw Torque STD14500 NxM14500 NxM
Plasticizing Capacity (PS) STD192 g/sec589,981.3 g
Plasticizing Capacity (PS) High Torque222 g/sec6,293.6 g
Nozzle Touch Force10.5 T9.525 t
Platen Dimension H90.5"2,298.7 mm
Platen Dimension V78.7"1,999 mm
Clamp Stroke59.1"1,501.1 mm
Maximum Daylight110.2"2,799.1 mm
Mold Height Min25.6"650.24 mm
Mold Height Max51.2"1,300.5 mm
Ejector Force31.5 T28.576 t
Ejector Stroke9.8"248.92 mm
Power supply Volts230230
Main Breaker Electric Capacity500 va
Heater Capacity69.6 kW69.6 kw
ControlCNCCNC
Dimensions42.8 x 11.3 x 10.8 Feet42.8 x 11.3 x 10.8 Feet
Weight123.5 US Ton123.5 US Ton
