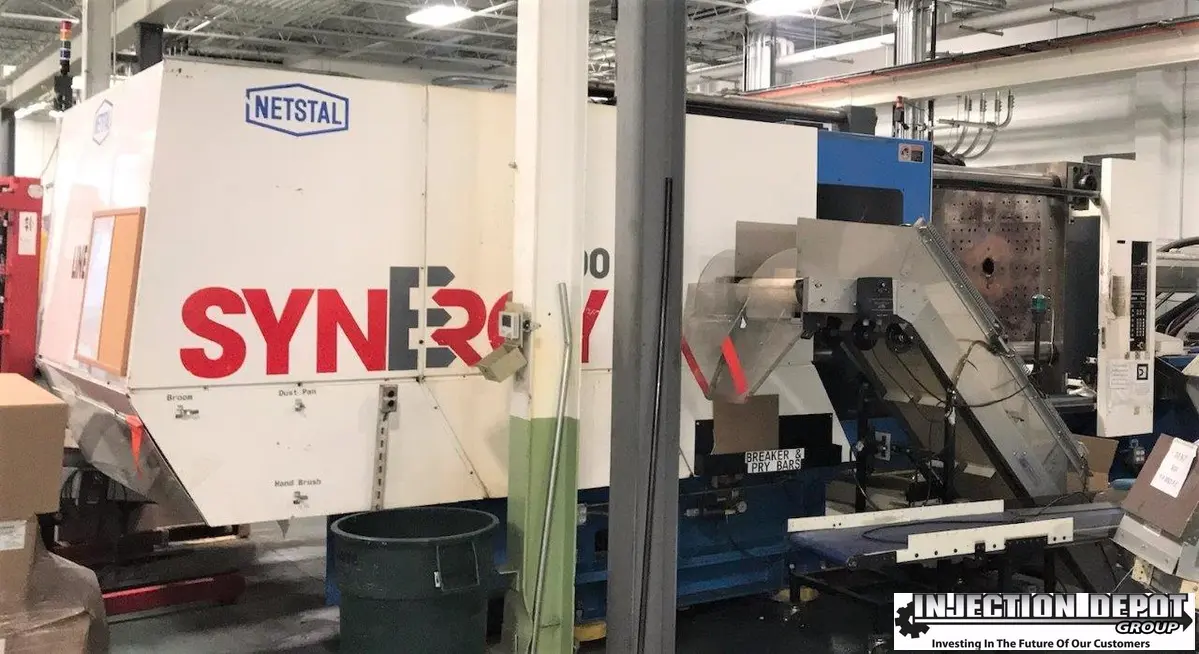

2002 Netstal Synergy S-5000-3700-E
Have one to sell?
ConditionUsed
1 available
- 90 mm HiMelt (Barrier) Screw/24D
- Ejector Force increased to 300 kn (30 tons)
- 4 hydraulic controls / V+P programmable [2xNMP/2x]
- 2 air control circuits (2 valves/output)
- 108 hot runner controls integrated
- core pull
- high speed injection-accumulator
- robot interface
Imperial
| Type | Hydraulic |
| Clamping Force Tonnage | 550 T |
| Shot Volume (PS) | 69 oz |
| Screw Diameter | 90 mm |
| Tie Bar Distance H | 36.22" |
| Tie Bar Distance V | 36.22" |
| Platen Dimension H | 57.5" |
| Platen Dimension V | 57.5" |
| Clamp Stroke | 0" |
| Mold Height Min | 660 mm |
| Mold Height Max | 1,250 mm |
| Ejector Force | 30 T |
| Injection Orientation | Horz |
| Hours | 50,649 hr. |
- 90 mm HiMelt (Barrier) Screw/24D
- Ejector Force increased to 300 kn (30 tons)
- 4 hydraulic controls / V+P programmable [2xNMP/2x]
- 2 air control circuits (2 valves/output)
- 108 hot runner controls integrated
- core pull
- high speed injection-accumulator
- robot interface
