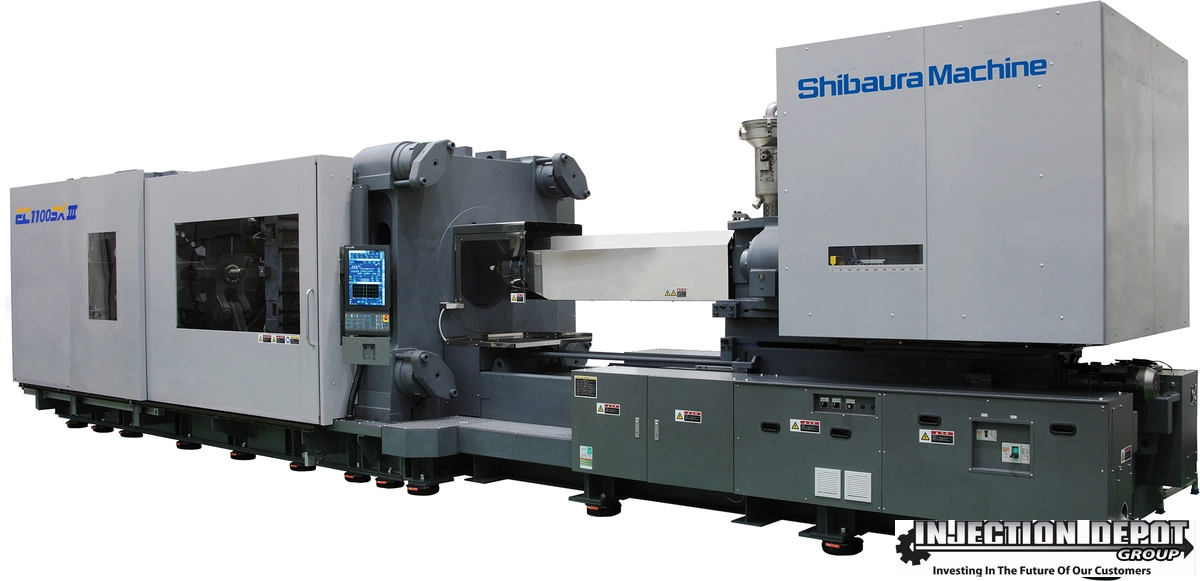

Shibaura Machine EC1100SXIIIV70-i61 B

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC1100SXIIIV70-i61 B
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage1100999.719 t
Barrel CodeBB
Shot Volume (PS)124.9 oz3,540.9 g
Shot Volume (PE)99.1 oz2,809.4 g
Screw Diameter4.13"104.9 mm
Maximum Injection Pressure21300 psi
Maximum Holding Pressure17800 psi
Screw Speed STD127 RPM127 rpm
Screw Speed High Torque95 RPM95 rpm
Injection Rate STD1299 cm3/sec36.8 m³/min.
Screw Torque STD5500 NxM5500 NxM
Screw Torque High Speed7090 NxM7090 NxM
Plasticizing Capacity (PS) STD136.1 g/sec3,858.4 g
Plasticizing Capacity (PS) High Torque102.8 g/sec2,914.3 g
Nozzle Touch Force6.6 T5.987 t
Tie Bar Distance H51.1"1,297.9 mm
Tie Bar Distance V51.1"1,297.9 mm
Platen Dimension H70.4"1,788.2 mm
Platen Dimension V70.4"1,788.2 mm
Clamp Stroke47.2"1,198.9 mm
Maximum Daylight40.6"1,031.2 mm
Mold Height Min19.7"500.38 mm
Mold Height Max43.3"1,099.8 mm
Ejector Force19.8 T17.962 t
Ejector Stroke7.9"200.66 mm
Power supply Volts230230
Main Breaker Electric Capacity300 va
Heater Capacity44.4 kW44.4 kw
ControlCNC (V70)CNC (V70)
Dimensions34.8 x 9.5 x 8.9 Feet34.8 x 9.5 x 8.9 Feet
Weight60.6 US Ton60.6 US Ton
