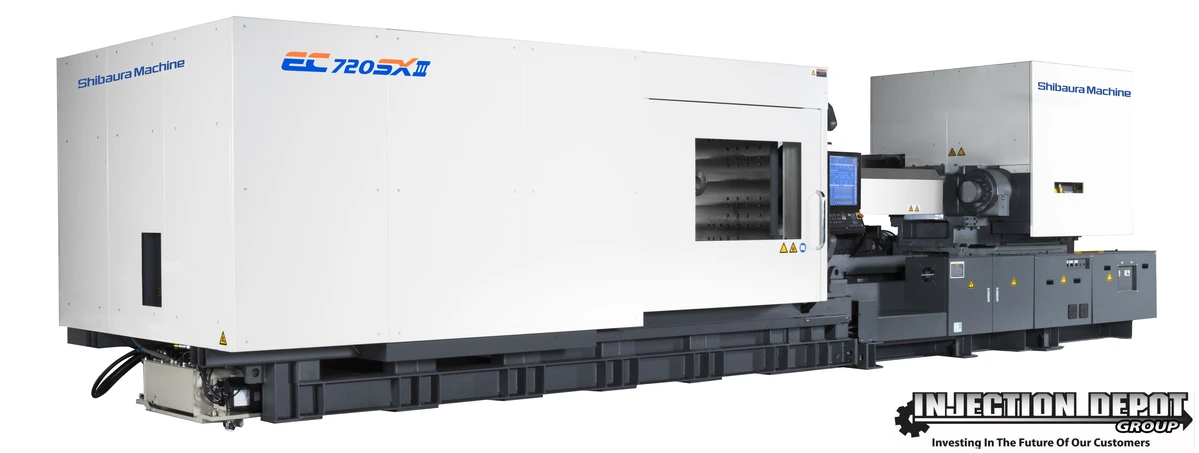

Shibaura Machine EC720SXIIIV70-i61 AT

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC720SXIIIV70-i61 AT
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage720650.452 t
Barrel CodeATAT
Shot Volume (PS)102.3 oz2,900.2 g
Shot Volume (PE)81.1 oz2,299.1 g
Screw Diameter3.74"94.996 mm
Maximum Injection Pressure26100 psi
Maximum Holding Pressure21800 psi
Screw Speed STD140 RPM140 rpm
Screw Speed High Torque95 RPM95 rpm
Injection Rate STD1063 cm3/sec30.1 m³/min.
Screw Torque STD5500 NxM5500 NxM
Screw Torque High Speed7090 NxM7090 NxM
Plasticizing Capacity (PS) STD116.7 g/sec3,308.4 g
Plasticizing Capacity (PS) High Torque80.6 g/sec2,285 g
Nozzle Touch Force6.6 T5.987 t
Tie Bar Distance H41.7"1,059.2 mm
Tie Bar Distance V37.8"960.12 mm
Platen Dimension H59.1"1,501.1 mm
Platen Dimension V55.1"1,399.5 mm
Clamp Stroke39.4"1,000.8 mm
Maximum Daylight80.7"2,049.8 mm
Mold Height Min17.7"449.58 mm
Mold Height Max41.3"1,049 mm
Ejector Force19.8 T17.962 t
Ejector Stroke7.9"200.66 mm
Power supply Volts230230
Main Breaker Electric Capacity300 va
Heater Capacity44.4 kW44.4 kw
ControlCNC (V70)CNC (V70)
Dimensions31.8 x 8.2 x 8.6 Feet31.8 x 8.2 x 8.6 Feet
Weight44.1 US Ton44.1 US Ton
