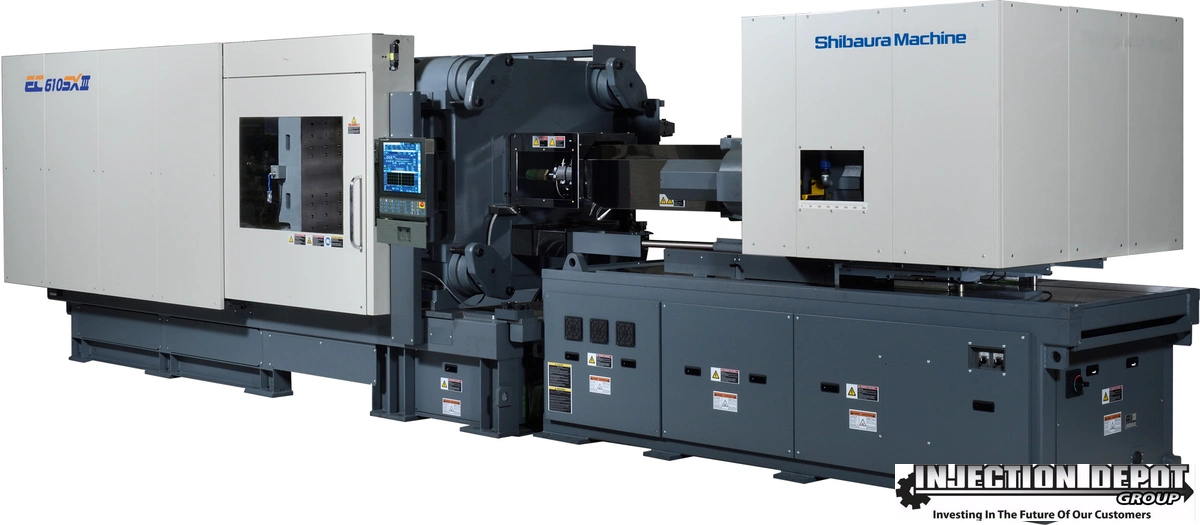

Shibaura Machine EC610SXIIIV70-i26AT

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC610SXIIIV70-i26AT
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage610549.755 t
Barrel CodeATAT
Shot Volume (PS)43.4 oz1,230.4 g
Shot Volume (PE)34.6 oz980.9 g
Screw Diameter2.76"70.104 mm
Maximum Injection Pressure27500 psi
Maximum Holding Pressure23200 psi
Screw Speed STD180 rpm180 RPM
Screw Speed High Torque120 rpm120 RPM
Injection Rate STD615 cm3/sec17.4 m³/min.
Screw Torque STD2580 NxM2580 NxM
Screw Torque High Speed3310 NxM3310 NxM
Plasticizing Capacity (PS) STD72.2 g/sec2,046.8 g
Plasticizing Capacity (PS) High Torque47.2 g/sec1,338.1 g
Nozzle Touch Force5 T4.536 t
Tie Bar Distance H38.1"967.74 mm
Tie Bar Distance V35.8"909.32 mm
Platen Dimension H53.7"1,364 mm
Platen Dimension V51.2"1,300.5 mm
Clamp Stroke35.4"899.16 mm
Maximum Daylight74.8"1,899.9 mm
Mold Height Min15.7"398.78 mm
Mold Height Max39.4"1,000.8 mm
Ejector Force14.3 T12.973 t
Ejector Stroke7.1"180.34 mm
Power supply Volts230230
Main Breaker Electric Capacity200 va
Heater Capacity26.5 kw26.5 kW
ControlCNC (V70)CNC (V70)
Dimensions27.5 x 7.5 x 7.3 Feet27.5 x 7.5 x 7.3 Feet
Weight29.9 US Ton29.9 US Ton
