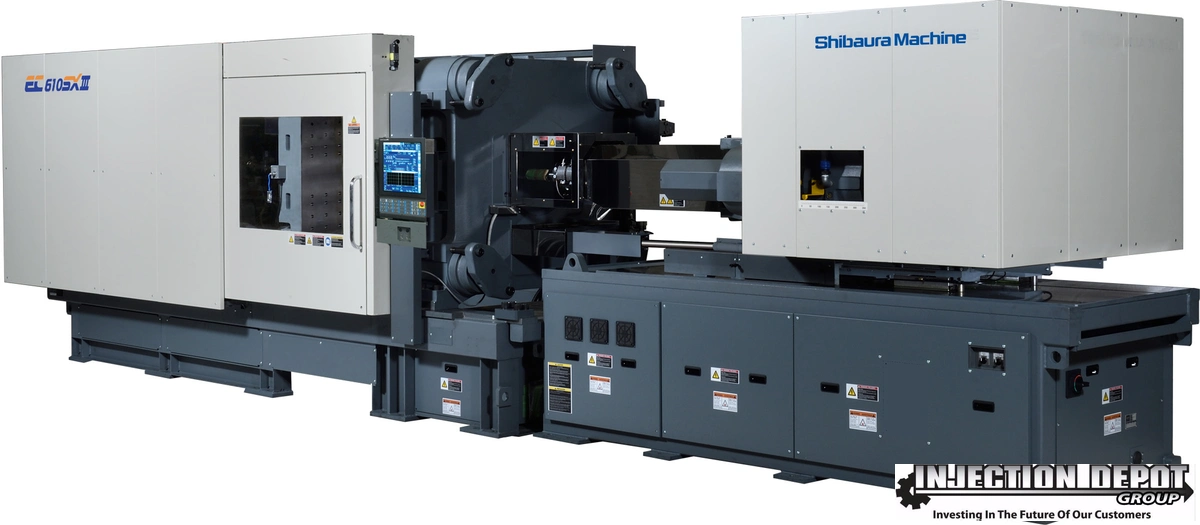

Shibaura Machine EC610SXIIIV70-i17B

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC610SXIIIV70-i17B
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage610549.755 t
Barrel CodeBB
Shot Volume (PS)37.5 oz1,063.1 g
Shot Volume (PE)29.7 oz842 g
Screw Diameter2.76"70.104 mm
Maximum Injection Pressure21300 psi
Maximum Holding Pressure21300 psi
Screw Speed STD180 RPM180 rpm
Screw Speed High Torque155 RPM155 rpm
Injection Rate STD616 cm3/sec17.4 m³/min.
Injection Rate High Speed1155 cm3/sec32.7 m³/min.
Screw Torque STD2360 NxM2360 NxM
Screw Torque High Speed2900 NxM2900 NxM
Plasticizing Capacity (PS) STD75 g/sec2,126.2 g
Plasticizing Capacity (PS) High Torque64.6 g/sec1,831.4 g
Nozzle Touch Force3.3 T2.994 t
Tie Bar Distance H38.1"967.74 mm
Tie Bar Distance V35.8"909.32 mm
Platen Dimension H53.7"1,364 mm
Platen Dimension V51.2"1,300.5 mm
Clamp Stroke35.4"899.16 mm
Maximum Daylight74.8"1,899.9 mm
Mold Height Min15.7"398.78 mm
Mold Height Max39.4"1,000.8 mm
Ejector Force14.3 T12.973 t
Ejector Stroke7.1"180.34 mm
Power supply Volts230230
Main Breaker Electric Capacity175 va
Heater Capacity25.5 kW25.5 kw
ControlCNC (V70)CNC (V70)
Dimensions27.3 x 7.5 x 7.3 Feet27.3 x 7.5 x 7.3 Feet
Weight29.0 US Ton29.0 US Ton
