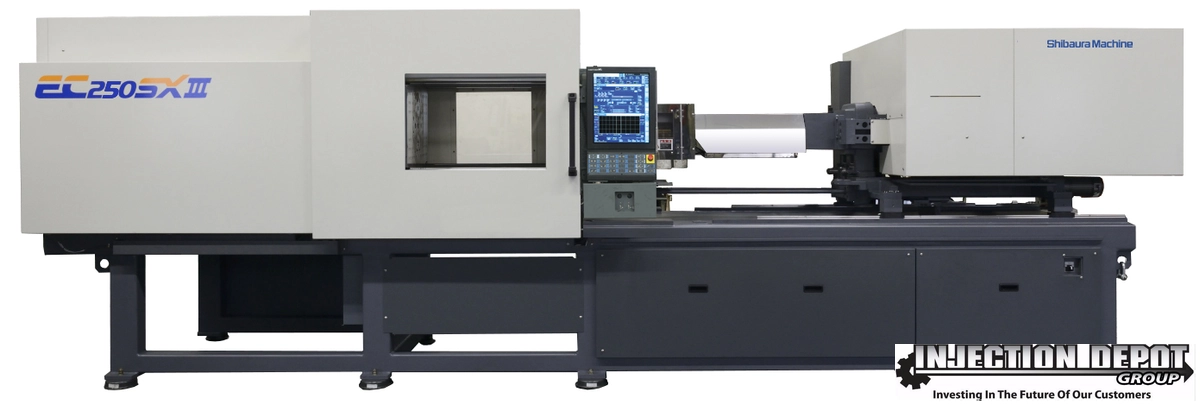

Shibaura Machine EC250SXIIIV70-U48 6Y
Have one to sell?
ConditionNew
New
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 250 |
| Barrel Code | 6Y |
| Shot Volume (PS) | 7.3 oz |
| Shot Volume (PE) | 5.8 oz |
| Screw Diameter | 1.57" |
| Maximum Injection Pressure | 36700 psi |
| Maximum Holding Pressure | 36700 psi |
| Screw Speed STD | 320 rpm |
| Injection Rate STD | 201 cm3/sec |
| Injection Rate High Speed | 440 cm3/sec |
| Screw Torque STD | 761 NxM |
| Plasticizing Capacity (PS) STD | 30.6 g/sec |
| Nozzle Touch Force | 3.3 T |
| Tie Bar Distance H | 24" |
| Tie Bar Distance V | 22" |
| Platen Dimension H | 34.6" |
| Platen Dimension V | 32.7" |
| Clamp Stroke | 21.7" |
| Maximum Daylight | 48.4" |
| Mold Height Min | 9.84" |
| Mold Height Max | 26.8" |
| Ejector Force | 5.5 T |
| Ejector Stroke | 5.12" |
| Main Breaker Electric Capacity | 59 kva |
| Heater Capacity | 13.6 kw |
| Control | CNC (V70) |
| Dimensions | 20.4 x 5.4 x 6.5 Feet |
| Weight | 10.2 US Ton |
