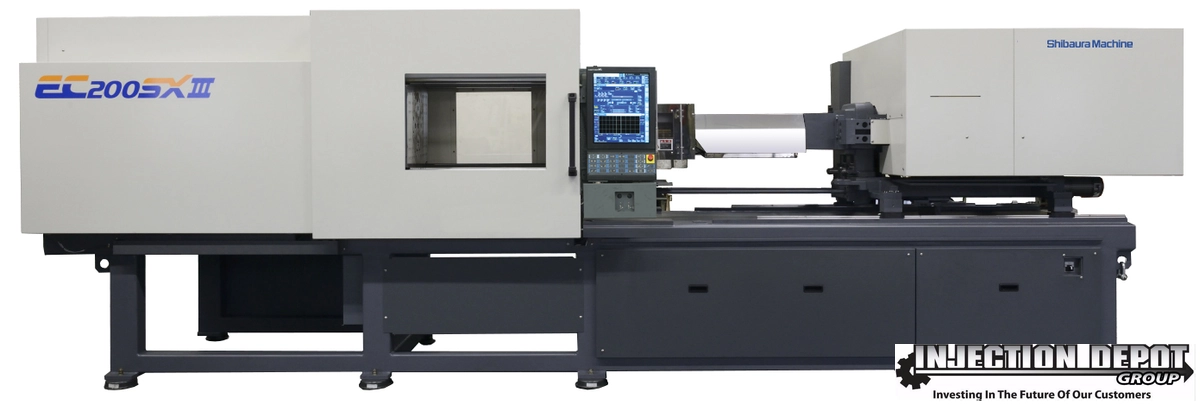

Shibaura Machine EC200SXIIIV70-U48 4Y

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC200SXIIIV70-U48 4Y
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage200179.623 t
Barrel Code4Y4Y
Shot Volume (PS)5.1 oz144.9 g
Shot Volume (PE)4.1 oz115.1 g
Screw Diameter1.42"36.068 mm
Maximum Injection Pressure35800 psi
Maximum Holding Pressure35800 psi
Screw Speed STD350 RPM350 rpm
Injection Rate STD163 cm3/sec4.6 m³/min.
Injection Rate High Speed356 cm3/sec10.1 m³/min.
Screw Torque STD566 NxM566 NxM
Plasticizing Capacity (PS) STD23.1 g/sec654.9 g
Nozzle Touch Force3.3 T2.994 t
Tie Bar Distance H22"558.8 mm
Tie Bar Distance V20.1"510.54 mm
Platen Dimension H31.1"789.94 mm
Platen Dimension V29.1"739.14 mm
Clamp Stroke17.7"449.58 mm
Maximum Daylight41.3"1,049 mm
Mold Height Min7.87"199.9 mm
Mold Height Max23.6"599.44 mm
Ejector Force5.5 T4.99 t
Ejector Stroke5.12"130.05 mm
Main Breaker Electric Capacity48 kva
Heater Capacity11.2 kW11.2 kw
ControlCNC (V70)CNC (V70)
Dimensions18.7 x 5.1 x 5.9 Feet18.7 x 5.1 x 5.9 Feet
Weight8.0 US Ton8.0 US Ton
