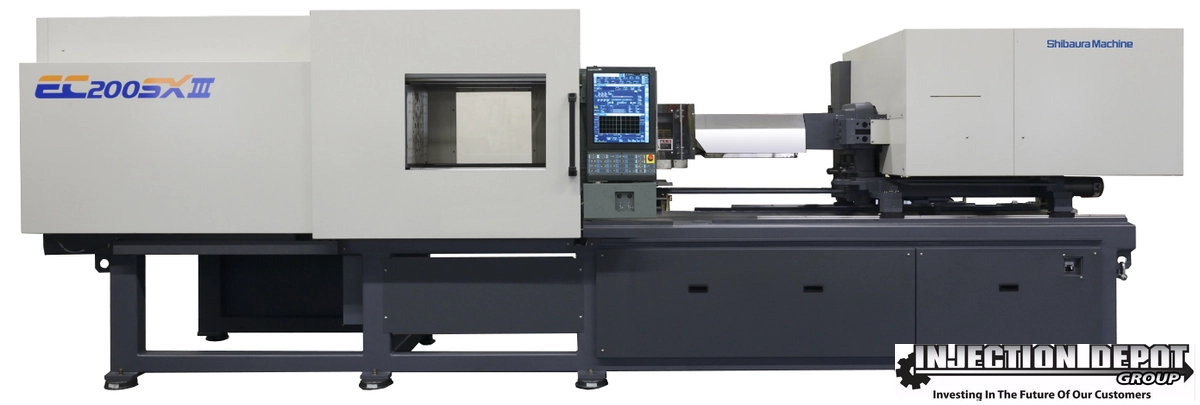

Shibaura Machine EC200SXIIIV70-U34 4B

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC200SXIIIV70-U34 4B
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage200179.623 t
Barrel Code4B4B
Shot Volume (PS)8.1 oz229.9 g
Shot Volume (PE)6.5 oz184.8 g
Screw Diameter1.77"44.958 mm
Maximum Injection Pressure22900 psi
Maximum Holding Pressure22900 psi
Screw Speed STD285 RPM285 rpm
Injection Rate STD318 cm3/sec9 m³/min.
Injection Rate High Speed636 cm3/sec18 m³/min.
Screw Torque STD761 NxM761 NxM
Plasticizing Capacity (PS) STD33.3 g/sec944 g
Nozzle Touch Force3.3 T2.994 t
Tie Bar Distance H22"558.8 mm
Tie Bar Distance V20.1"510.54 mm
Platen Dimension H31.1"789.94 mm
Platen Dimension V29.1"739.14 mm
Clamp Stroke17.7"449.58 mm
Maximum Daylight41.3"1,049 mm
Mold Height Min7.87"199.9 mm
Mold Height Max23.6"599.44 mm
Ejector Force5.5 T4.99 t
Ejector Stroke5.12"130.05 mm
Main Breaker Electric Capacity48 kva
Heater Capacity11.9 kW11.9 kw
ControlCNC (V70)CNC (V70)
Dimensions18.7 x 5.1 x 5.9 Feet18.7 x 5.1 x 5.9 Feet
Weight7.7 US Ton7.7 US Ton
