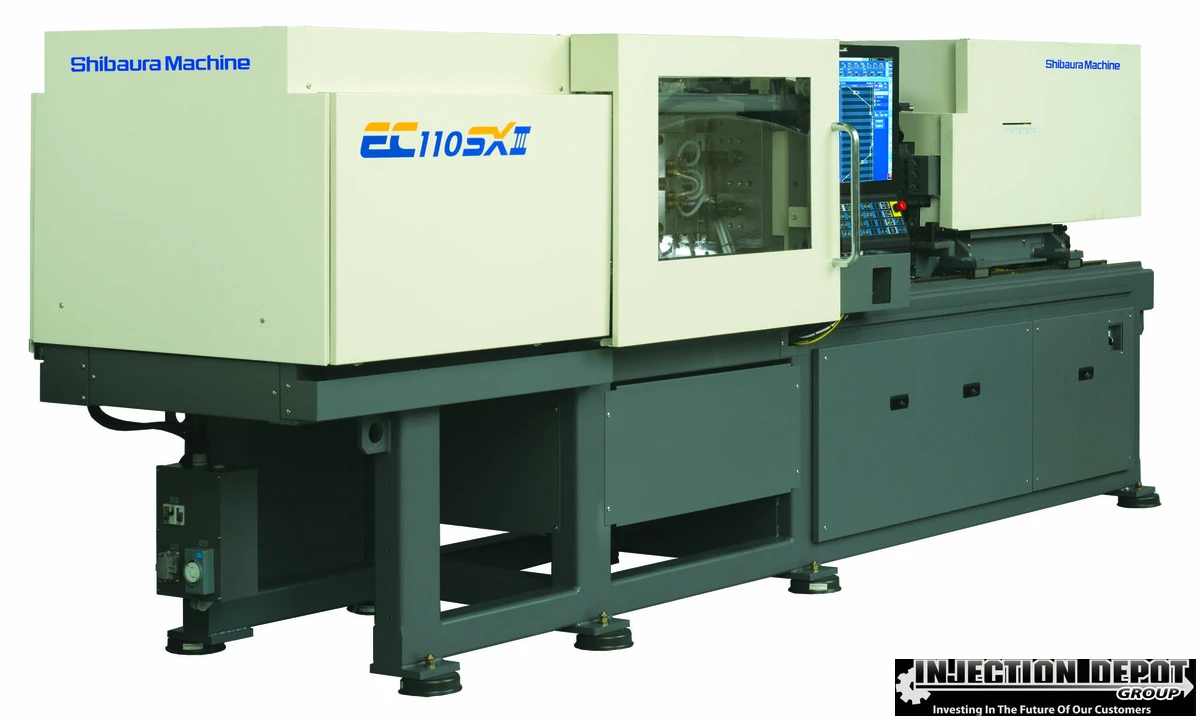

Shibaura Machine EC110SXIIIV70-U34 4B

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC110SXIIIV70-U34 4B
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage11099.79 t
Barrel Code4B4B
Shot Volume (PS)8.1 oz229.9 g
Shot Volume (PE)6.5 oz184.8 g
Screw Diameter1.77"44.958 mm
Maximum Injection Pressure22900 psi
Maximum Holding Pressure22900 psi
Screw Speed STD285 RPM285 rpm
Injection Rate STD318 cm3/sec9 m³/min.
Injection Rate High Speed636 cm3/sec18 m³/min.
Screw Torque STD761 NxM761 NxM
Plasticizing Capacity (PS) STD33.3 g/sec944 g
Nozzle Touch Force2 T1.814 t
Tie Bar Distance H18.1"459.74 mm
Tie Bar Distance V16.1"408.94 mm
Platen Dimension H26"660.4 mm
Platen Dimension V24"609.6 mm
Clamp Stroke13.8"350.52 mm
Maximum Daylight35.4"899.16 mm
Mold Height Min7.1"180.34 mm
Mold Height Max21.7"551.18 mm
Ejector Force3.3 T2.994 t
Ejector Stroke3.54"89.916 mm
Main Breaker Electric Capacity45 kva
Heater Capacity11.9 kW11.9 kw
ControlCNC (V70)CNC (V70)
Dimensions16.1 x 4.2 x 5.4 Feet16.1 x 4.2 x 5.4 Feet
Weight4.7 US Ton4.7 US Ton
