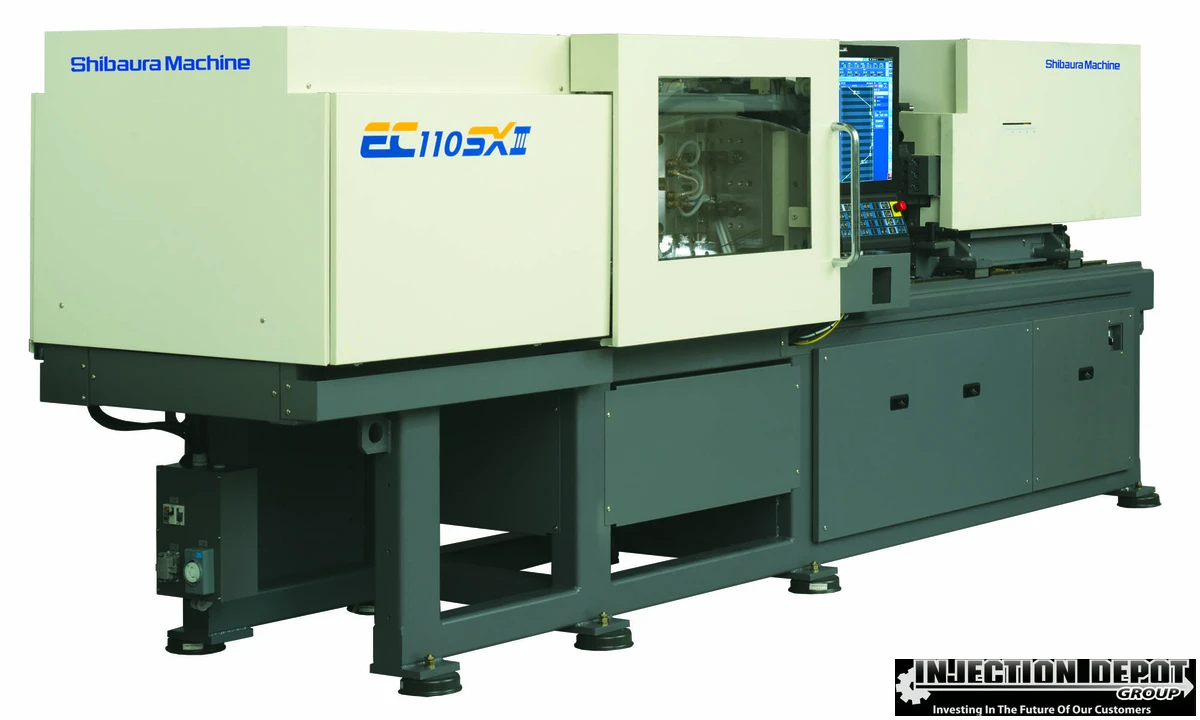

Shibaura Machine EC110SXIIIV70-U32 2A
Have one to sell?
ConditionNew
New
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 110 |
| Barrel Code | 2A |
| Shot Volume (PS) | 3.3 oz |
| Shot Volume (PE) | 2.6 oz |
| Screw Diameter | 1.26" |
| Maximum Injection Pressure | 31900 psi |
| Maximum Holding Pressure | 31900 psi |
| Screw Speed STD | 390 rpm |
| Injection Rate STD | 161 cm3/sec |
| Screw Torque STD | 407 NxM |
| Plasticizing Capacity (PS) STD | 16.9 g/sec |
| Nozzle Touch Force | 2 T |
| Tie Bar Distance H | 18.1" |
| Tie Bar Distance V | 16.1" |
| Platen Dimension H | 26" |
| Platen Dimension V | 24" |
| Clamp Stroke | 13.8" |
| Maximum Daylight | 35.4" |
| Mold Height Min | 7.1" |
| Mold Height Max | 21.7" |
| Ejector Force | 3.3 T |
| Ejector Stroke | 3.54" |
| Main Breaker Electric Capacity | 35 kva |
| Heater Capacity | 6.8 kw |
| Control | CNC (V70) |
| Dimensions | 15.2 x 4.2 x 5.4 Feet |
| Weight | 4.6 US Ton |
