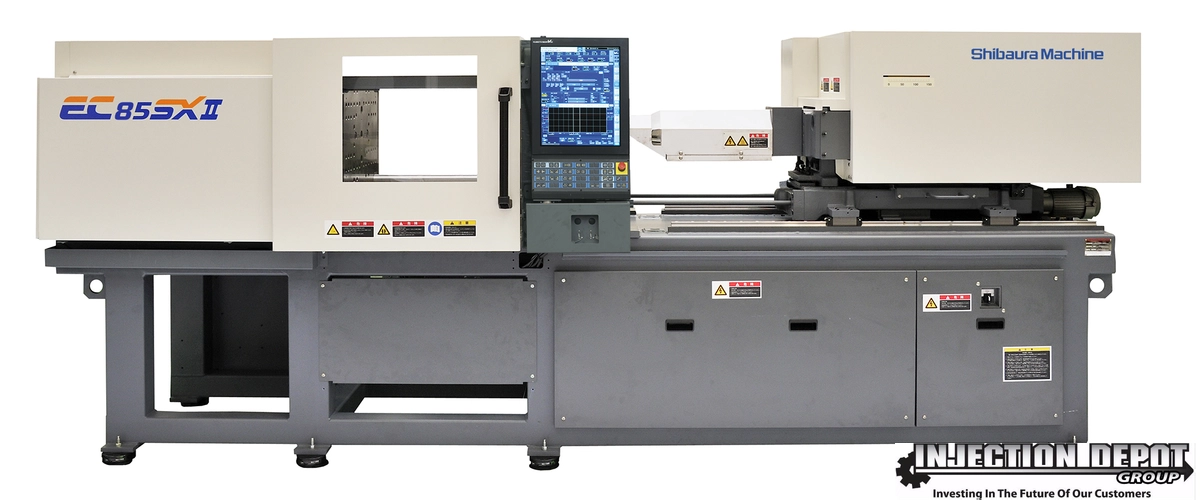

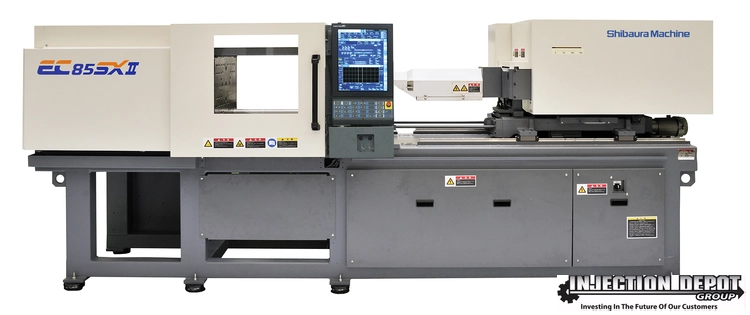

Shibaura Machine EC85SXIIIV70-U22-2B

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC85SXIIIV70-U22-2B
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage8575.296 t
Barrel Code2B2B
Shot Volume (PS)4.2 oz119.9 g
Shot Volume (PE)3.4 oz95 g
Screw Diameter1.42"36.068 mm
Maximum Injection Pressure25200 psi
Maximum Holding Pressure25200 psi
Screw Speed STD350 RPM350 rpm
Injection Rate STD204 cm3/sec5.8 m³/min.
Screw Torque STD407 NxM407 NxM
Plasticizing Capacity (PS) STD23.1 g/sec654.9 g
Nozzle Touch Force2 T1.814 t
Tie Bar Distance H16.1"408.94 mm
Tie Bar Distance V14.2"360.68 mm
Platen Dimension H22.8"579.12 mm
Platen Dimension V20.9"530.86 mm
Clamp Stroke11.8"299.72 mm
Maximum Daylight30.3"769.62 mm
Mold Height Min5.9"149.86 mm
Mold Height Max18.5"469.9 mm
Ejector Force2.2 T1.996 t
Ejector Stroke2.76"70.104 mm
Main Breaker Electric Capacity35 kva
Heater Capacity7.6 kW7.6 kw
ControlCNC (V70)CNC (V70)
Dimensions13.7 x 4.0 x 5.2 Feet13.7 x 4.0 x 5.2 Feet
Weight3.6 US Ton3.6 US Ton
