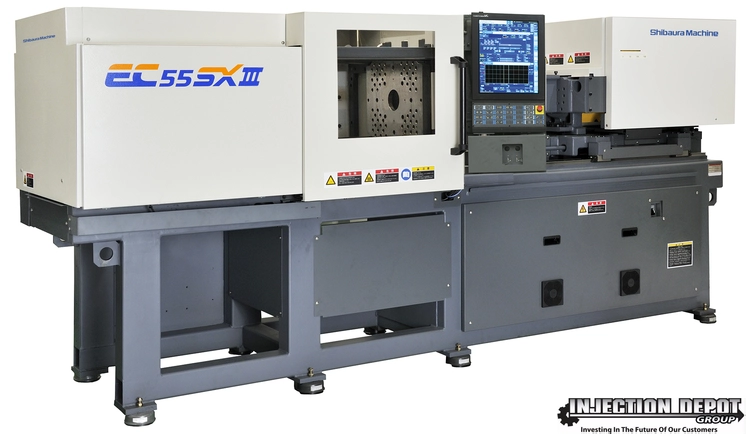

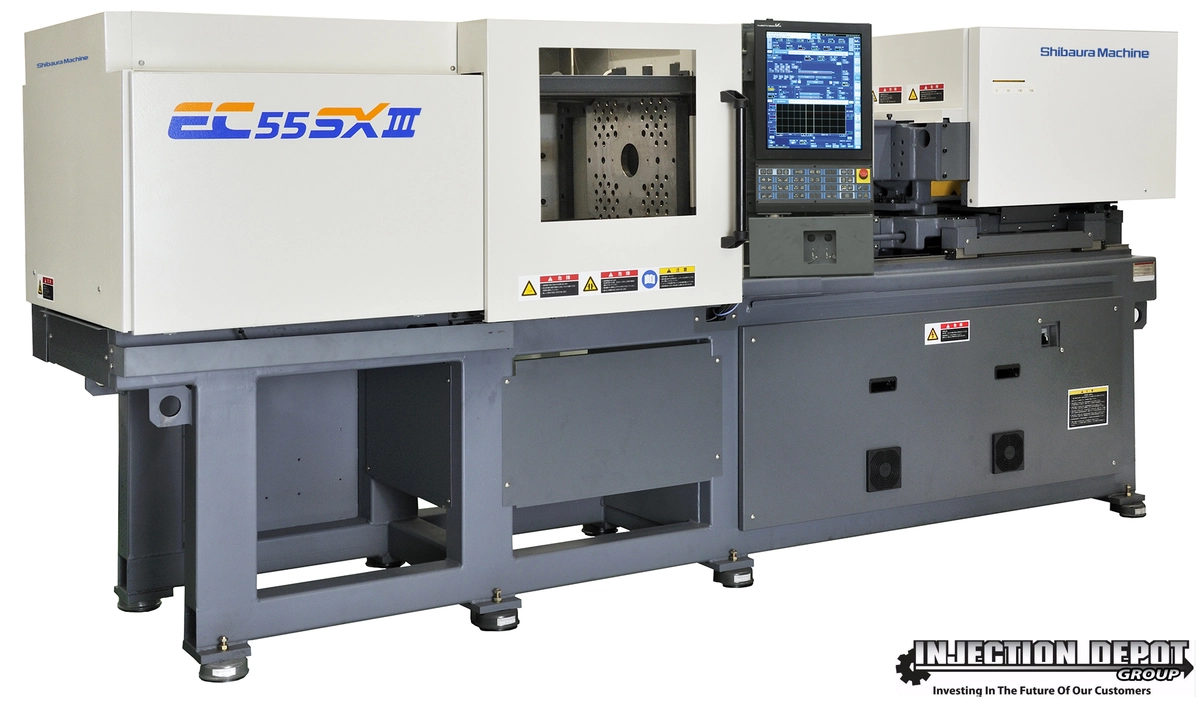

Shibaura Machine EC55SXIIIV70-U1.5 1.5A

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC55SXIIIV70-U1.5 1.5A
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage55 T49.895 t
Barrel Code1.5A1.5A
Shot Volume (PS)2.2 oz62.9 g
Shot Volume (PE)1.8 oz49.9 g
Screw Diameter1.1"27.94 mm
Maximum Injection Pressure31900 psi
Maximum Holding Pressure31900 psi
Screw Speed STD390 RPM390 rpm
Injection Rate STD123 cm3/sec3.5 m³/min.
Screw Torque STD280 NxM280 NxM
Plasticizing Capacity (PS) STD9.7 g/sec275 g
Nozzle Touch Force2 T1.814 t
Tie Bar Distance H16.1"408.94 mm
Tie Bar Distance V14.2"360.68 mm
Platen Dimension H20.1"510.54 mm
Platen Dimension V18.1"459.74 mm
Clamp Stroke11.8"299.72 mm
Maximum Daylight57.9"1,470.7 mm
Mold Height Min5.9"149.86 mm
Mold Height Max14.5"368.3 mm
Ejector Force2.2 T1.996 t
Ejector Stroke2.76"70.104 mm
Main Breaker Electric Capacity28 kva
Heater Capacity6.6 kW6.6 kw
ControlCNC (V70)CNC (V70)
Dimensions12.6 x 4.0 x 5.2 Feet12.6 x 4.0 x 5.2 Feet
Weight3.4 US Ton3.4 US Ton
