Sepro 7X-55 5-axis robot

Sepro 7X-55 5-axis robot

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
ROBOTS
Manufacturer:
SEPRO
Model:
7X-55
Condition:
Build To Order
Status:
For Sale

Description

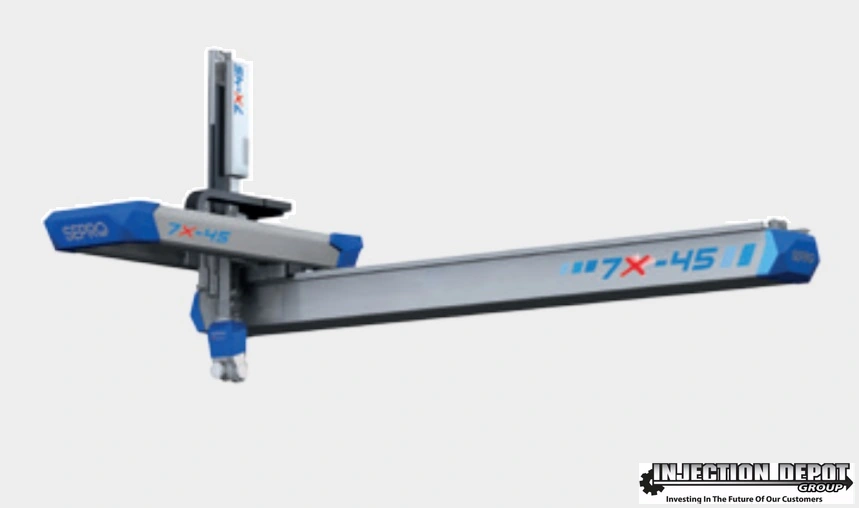

7X Line 5-axis robots are a powerful combination of a 3-axis Cartesian robot and an accurate and reliable dual Stäubli servo-rotation.

Sepro and Stäubli are expanding the robotic range in the plastics industry with a unique and original combination ranging from a 3-axis Cartesian robot to a 5-axis robot, to equip large tonnage injection molding machines.

Traverse (Horiz) Stroke Min137.8"3,500 mm
Traverse (Horiz) Stroke Max1000010000
Max Speed (Traverse)5,905.5 in/min.2.5 m/s
Kick (Ejector) Stroke Min59.055"1,500 mm
Kick (Ejector) Stroke Max1700 mm
Max Speed (Kick)4,724.4 in/min.2 m/s
Vertical Stroke118.11"3,000 mm
Max Speed (Vertical)7,086.6 in/min.3 m/s
Machine Tonnage Min1,322.772 T1200 t
Machine Tonnage Max2,755.775 T2500 t
