Used 2002 TOSHIBA EC65 | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available

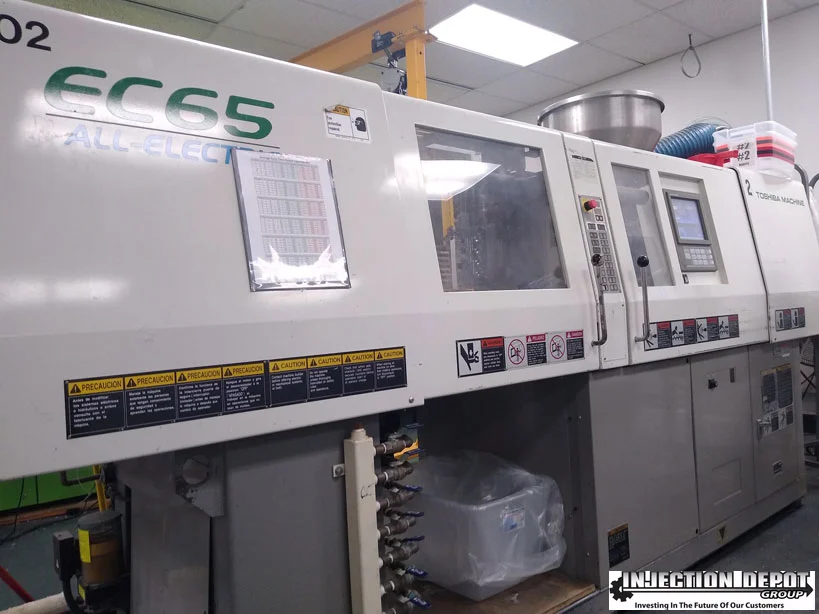

2002 Toshiba EC65 ,65 Ton 2.9 oz
Clamp tonnage…………………………………………………………65
Distance between tie bars………………………...…………….13.8 x 13.8”
Platen size…………………………………………….…………………21.2 x 21.2”
Clamp stroke…………………………………………….……………11.4”
Mold thickness – Min/Max…………….………..………….. .5.9/14.5”
Max. daylight…………………………………………………………….26.0”
Shot size………………………………………………………………… 2.9 oz.
Max. injection pressure……………………………………………21,800 psi
Max. holding pressure…………………….………………………..21,800 psi
Weight……………………………………………………………………..6,700 lbs.
Dimensions……………………………………………………….12.5 x 3.9 x 5.3’H
Equipped with:
Injectvisor V21 enhanced Touch Screen control
Motion/No Motion Circuit
Dual Airblow
Hopper
57,446 Hours Under power
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 65 T |
| Shot Volume (PS) | 2.9 oz |
| Maximum Injection Pressure | 21800 psi |
| Maximum Holding Pressure | 21800 psi |
| Tie Bar Distance H | 13.8" |
| Tie Bar Distance V | 13.8" |
| Platen Dimension H | 21.2" |
| Platen Dimension V | 21.2" |
| Clamp Stroke | 11.4" |
| Maximum Daylight | 26" |
| Mold Height Min | 5.9" |
| Mold Height Max | 14.5" |
| Injection Orientation | Horz |
| Hours | 57,446 hr. |
| Machine under power | Under Power no Mould in Machine |
| Control | CNC (Injectvisor V21) |
| Dimensions | 12.5 x 3.9 x 5.3 |
| Weight | 6700 |
2002 Toshiba EC65 ,65 Ton 2.9 oz
Clamp tonnage…………………………………………………………65
Distance between tie bars………………………...…………….13.8 x 13.8”
Platen size…………………………………………….…………………21.2 x 21.2”
Clamp stroke…………………………………………….……………11.4”
Mold thickness – Min/Max…………….………..………….. .5.9/14.5”
Max. daylight…………………………………………………………….26.0”
Shot size………………………………………………………………… 2.9 oz.
Max. injection pressure……………………………………………21,800 psi
Max. holding pressure…………………….………………………..21,800 psi
Weight……………………………………………………………………..6,700 lbs.
Dimensions……………………………………………………….12.5 x 3.9 x 5.3’H
Equipped with:
Injectvisor V21 enhanced Touch Screen control
Motion/No Motion Circuit
Dual Airblow
Hopper
57,446 Hours Under power
