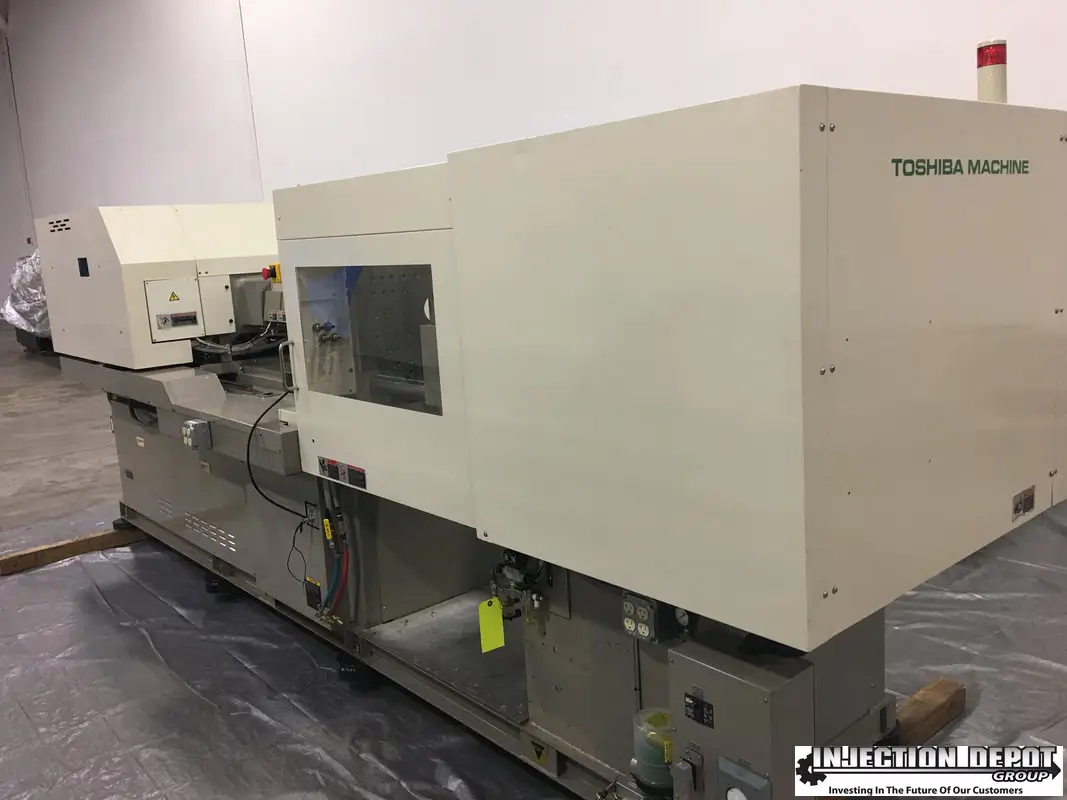

Used 2007 TOSHIBA EC110NIIV30-4A | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available
SPEC INFORMATION:
MODEL: EC110NIIV30-4A
TONNAGE: 110 TON
SHOT SIZE: 6.35 OZ/PS
PLATEN DIMENSIONS: 26.0." x 24.0"
TIE BAR SPACING: 18.1" x 16.1"
CLAMP STROKE: 13.8"
EJECTOR STROKE: 3.54"
MOLD HEIGHT (MIN-MAX): 7.1"-17.7"
MAX DAYLIGHT: 31.5"
MACHINE DIMENSIONS : 15.7 L x 4.2 W x 6.2 H
MACHINE WEIGHT: 11,700 LBS
EQUIPPED WITH:
INJECTVISOR V30 CONTROL
SPI Robot 32
Air Blow – Dual
Valve Gate Signal
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 110 T |
| Shot Volume (PS) | 6.4 oz |
| Tie Bar Distance H | 18.1" |
| Tie Bar Distance V | 16.1" |
| Platen Dimension H | 26" |
| Platen Dimension V | 24" |
| Clamp Stroke | 13.8" |
| Maximum Daylight | 31.5" |
| Mold Height Min | 7.1" |
| Mold Height Max | 17.7" |
| Ejector Stroke | 3.54" |
| Injection Orientation | Horz |
| Control | CNC (INJECTVISOR V30) |
| Dimensions | 15.7 L x 4.2 W x 6.2 H |
| Weight | 11,700 LBS |
SPEC INFORMATION:
MODEL: EC110NIIV30-4A
TONNAGE: 110 TON
SHOT SIZE: 6.35 OZ/PS
PLATEN DIMENSIONS: 26.0." x 24.0"
TIE BAR SPACING: 18.1" x 16.1"
CLAMP STROKE: 13.8"
EJECTOR STROKE: 3.54"
MOLD HEIGHT (MIN-MAX): 7.1"-17.7"
MAX DAYLIGHT: 31.5"
MACHINE DIMENSIONS : 15.7 L x 4.2 W x 6.2 H
MACHINE WEIGHT: 11,700 LBS
EQUIPPED WITH:
INJECTVISOR V30 CONTROL
SPI Robot 32
Air Blow – Dual
Valve Gate Signal
