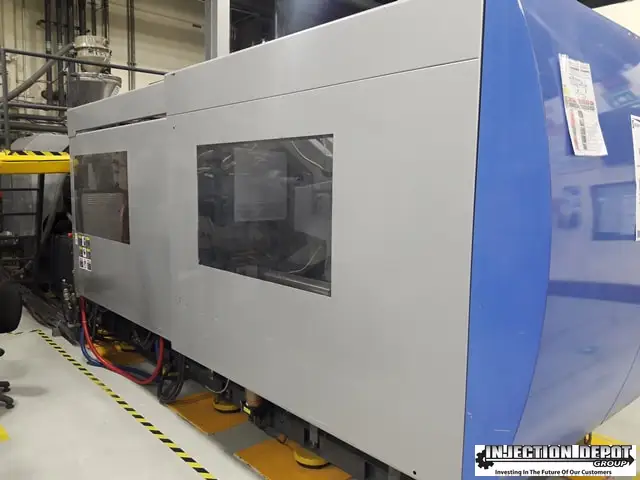

Used 2007 SUMITOMO SE450HD-1700 | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available
USED 495 TON, 33.2 OZ SUMITOMO MODEL SE450HD- 1700 ELECTRIC
INJECTION MOLDING MACHINE MFG NEW IN 2007
SPECIFICATIONS:
TONNAGE: 495 US TON
SHOT SIZE: 33.4 OZ (71 MM)
DISTANCE BETWEEN TIE BAR: 34.2" X 32.2"
PLATEN SIZE: 50.7" X 47.24"
MAXIMUM OPEN DAYLIGHT: 62.9"
MOLD SPACE (MIN/MAX): 21.6"/ 35.4" ( EXTENDED MOLD SPACE OPTION)
MAXIMUM MOLD OPENING STROKE: 31.50"
EJECTOR STROKE: 6.89"
DIMENSIONS: 332" X 83" X 89"
WEIGHT: 53,000 LBS
EQUIPPED WITH:
SUMITOMO NVIII CONTROL
AIR BLOW
(2) VALVE GATES
WIRED FOR CORE PULL
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 495 T |
| Shot Volume (PS) | 33.4 oz |
| Tie Bar Distance H | 34.2" |
| Tie Bar Distance V | 32.2" |
| Platen Dimension H | 50.7" |
| Platen Dimension V | 47.24" |
| Clamp Stroke | 31.5" |
| Maximum Daylight | 62.9" |
| Mold Height Min | 21.6" |
| Mold Height Max | 35.4" |
| Ejector Stroke | 6.89" |
| Injection Orientation | Horz |
| Control | CNC (SUMITOMO NVIII) |
| Dimensions | 332" x 83" x 89" |
| Weight | 53000 |
USED 495 TON, 33.2 OZ SUMITOMO MODEL SE450HD- 1700 ELECTRIC
INJECTION MOLDING MACHINE MFG NEW IN 2007
SPECIFICATIONS:
TONNAGE: 495 US TON
SHOT SIZE: 33.4 OZ (71 MM)
DISTANCE BETWEEN TIE BAR: 34.2" X 32.2"
PLATEN SIZE: 50.7" X 47.24"
MAXIMUM OPEN DAYLIGHT: 62.9"
MOLD SPACE (MIN/MAX): 21.6"/ 35.4" ( EXTENDED MOLD SPACE OPTION)
MAXIMUM MOLD OPENING STROKE: 31.50"
EJECTOR STROKE: 6.89"
DIMENSIONS: 332" X 83" X 89"
WEIGHT: 53,000 LBS
EQUIPPED WITH:
SUMITOMO NVIII CONTROL
AIR BLOW
(2) VALVE GATES
WIRED FOR CORE PULL
