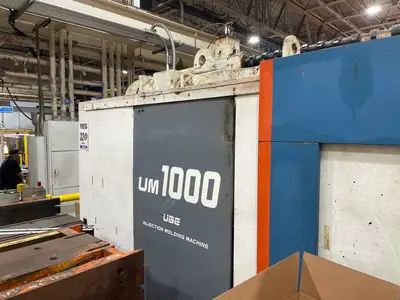

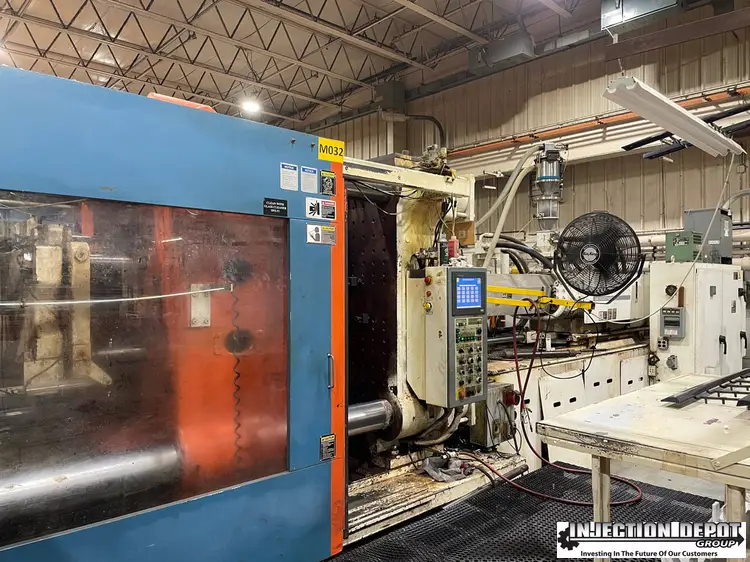

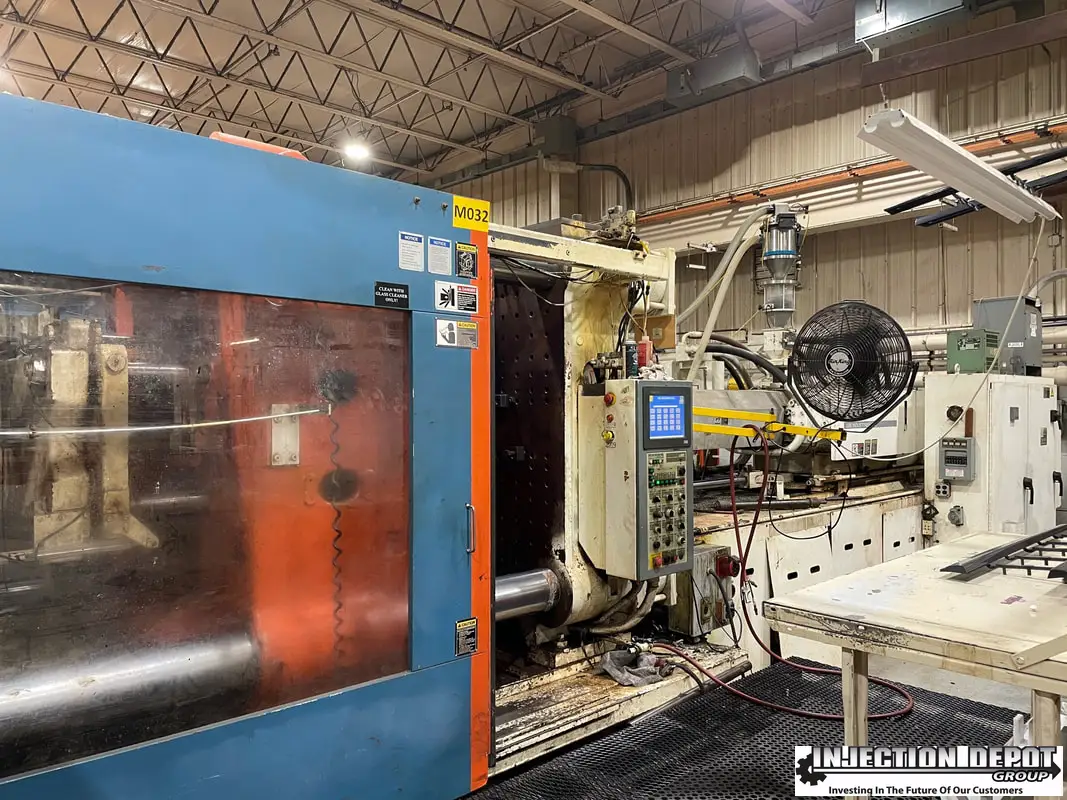

Used 1999 UBE UM1000US | HORIZONTAL INJECTION MOULDING MACHINES
Have one to sell?
ConditionUsed
1 available
1999 UBE UM 1000ton
MODEL: UM1000US
TONNAGE: 1000 ton
SHOT SIZE: i80 (185 oz)
PLATEN DIMENSIONS: 66.93 x 66.93
TIE BAR SPACING: 50.00 x 50.00
CLAMPING STROKE: 55.11
DAYLIGHT STANDARD: 74.80 ~ 102.35 inch
EJECTION FORCE: 47.6 uston
EJECTOR STROKE: 7.87 inch
​INJECTION PRESSURE: 19,820 psi
INJECTION RATE: 64.20
Imperial
| Clamping Force Tonnage | 1,000 T |
| Shot Volume (PS) | 185 oz |
| Maximum Injection Pressure | 19820 psi |
| Tie Bar Distance H | 50" |
| Tie Bar Distance V | 50" |
| Platen Dimension H | 66.93" |
| Platen Dimension V | 66.93" |
| Clamp Stroke | 55.11" |
| Maximum Daylight | 102.35" |
| Ejector Force | 47.6 T |
| Ejector Stroke | 7.87" |
| Control | CNC |
1999 UBE UM 1000ton
MODEL: UM1000US
TONNAGE: 1000 ton
SHOT SIZE: i80 (185 oz)
PLATEN DIMENSIONS: 66.93 x 66.93
TIE BAR SPACING: 50.00 x 50.00
CLAMPING STROKE: 55.11
DAYLIGHT STANDARD: 74.80 ~ 102.35 inch
EJECTION FORCE: 47.6 uston
EJECTOR STROKE: 7.87 inch
​INJECTION PRESSURE: 19,820 psi
INJECTION RATE: 64.20
