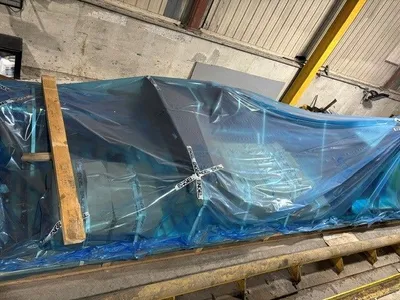

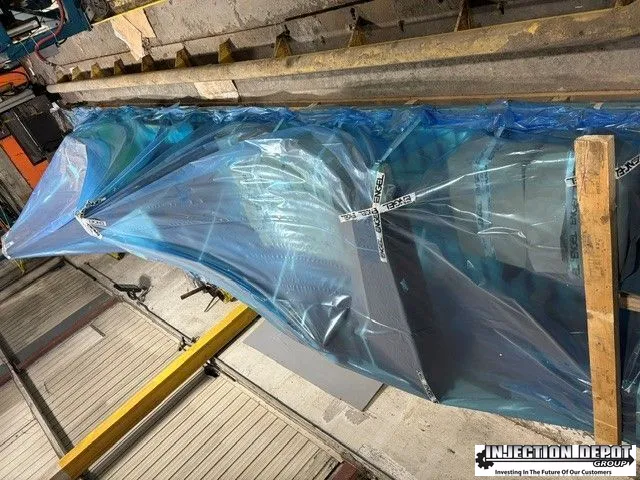

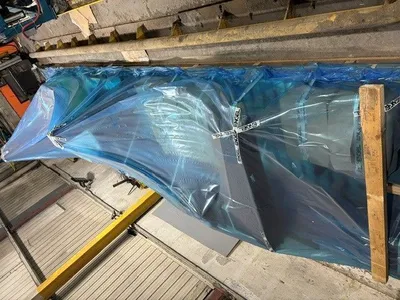

2023 ENGEL VIPER 90 LINEAR ROBOT
Have one to sell?
ConditionUsed
1 available
STROKES
X-Axis (demolding drive): 2,000 mm, servo-driven
Y-Axis (vertical removal): 2,400 mm, telescopic servo configuration
Z-Axis (longitudinal travel): 8,120 mm, extended overhead travel frame
SERVO WRIST AXES
B-Axis: rotation +90° to -180°, compact XL servo drive, 450 Nm
C-Axis: rotation 0° to +180°, compact XL servo drive, 450 Nm
Imperial
| Traverse (Horiz) Stroke Max | 319.69 |
| Kick (Ejector) Stroke Max | 78.74 |
| Vertical Stroke | 94.49" |
| Vertical Stroke Max | 94.49" |
STROKES
X-Axis (demolding drive): 2,000 mm, servo-driven
Y-Axis (vertical removal): 2,400 mm, telescopic servo configuration
Z-Axis (longitudinal travel): 8,120 mm, extended overhead travel frame
SERVO WRIST AXES
B-Axis: rotation +90° to -180°, compact XL servo drive, 450 Nm
C-Axis: rotation 0° to +180°, compact XL servo drive, 450 Nm
