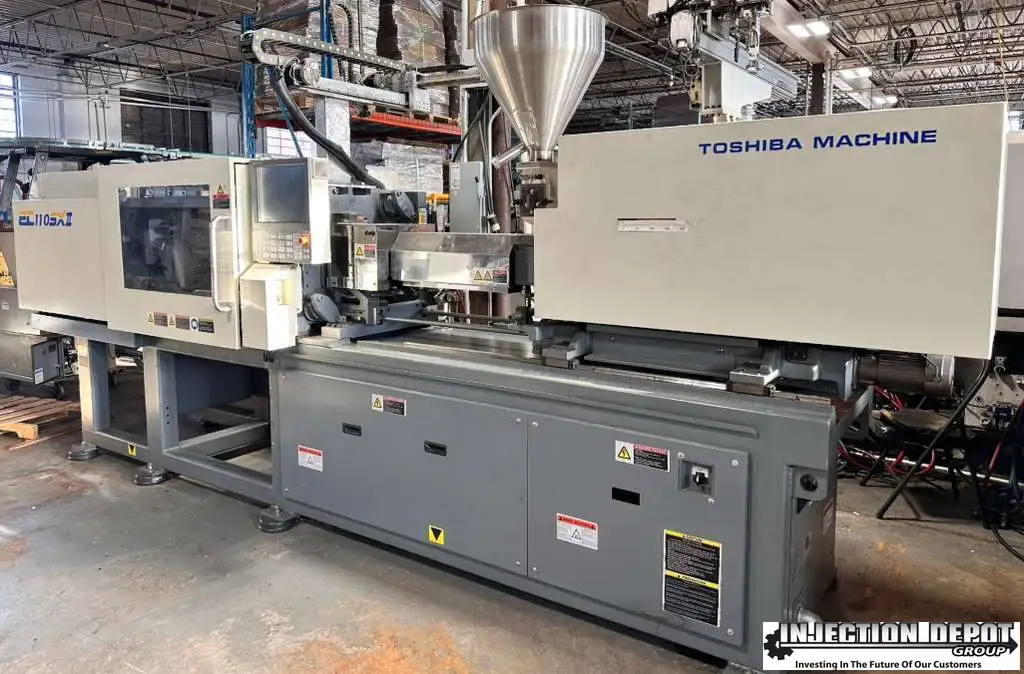

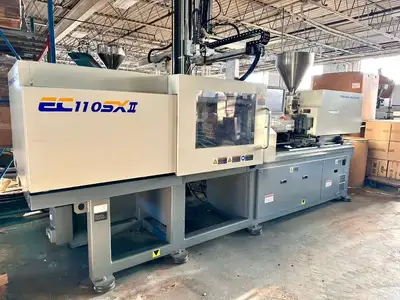

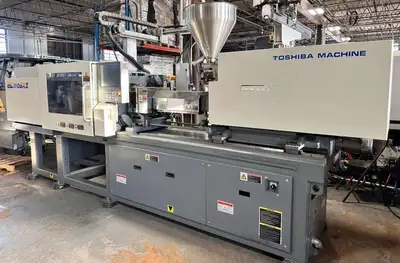

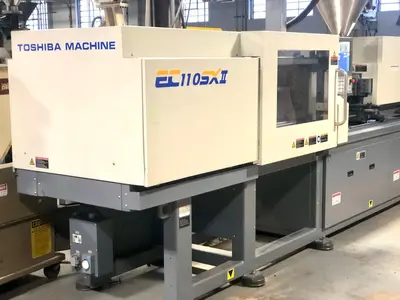

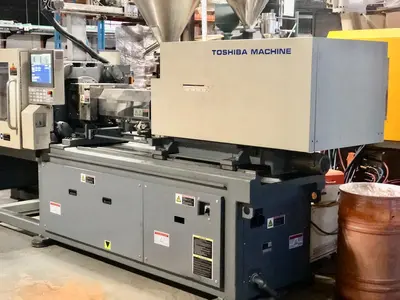

2017 Toshiba EC110SXIIV50-4B

Name: INJECTION DEPOT
Address: ,, CA
Telephone: 1-877-737-7610

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

HORIZONTAL INJECTION MOULDING MACHINES

Manufacturer:

Model:

EC110SXIIV50-4B

Year:

2017

Status:

For Sale

ImperialMetric

Clamping Force Tonnage	110 T	99.79 t
Barrel Code	4B	4B
Screw Diameter	1.77"	44.958 mm
Maximum Injection Pressure	22900 psi
Maximum Holding Pressure	22900 psi
Screw Speed STD	285 rpm	285 RPM
Screw Torque STD	761	761
Plasticizing Capacity (PS) STD	1.2 oz	33.2 g
Nozzle Touch Force	2 T	1.814 t
Tie Bar Distance H	18.1"	459.74 mm
Tie Bar Distance V	16.1"	408.94 mm
Platen Dimension H	26"	660.4 mm
Platen Dimension V	24"	609.6 mm
Clamp Stroke	13.8"	350.52 mm
Maximum Daylight	35.4"	899.16 mm
Mold Height Min	7.1"	180.34 mm
Mold Height Max	21.7"	551.18 mm
Ejector Force	3.3 T	2.994 t
Ejector Stroke	3.54"	89.916 mm
Main Breaker Electric Capacity	45	45
Heater Capacity	11.9 kw	11.9 kW
Injection Orientation	Horz	Horz

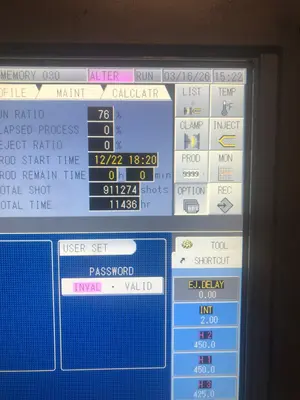

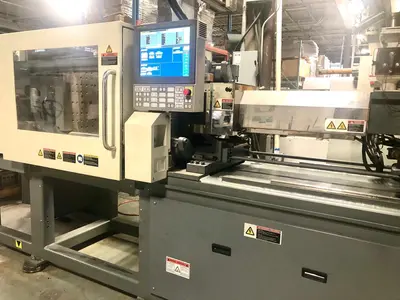

Control	CNC (InjectvisorV50)	CNC (InjectvisorV50)
Dimensions	16.1 x 4.2 x 5.4 Feet	16.1 x 4.2 x 5.4 Feet
