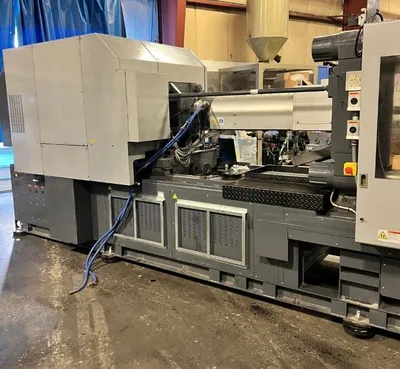

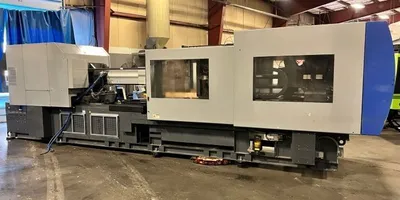

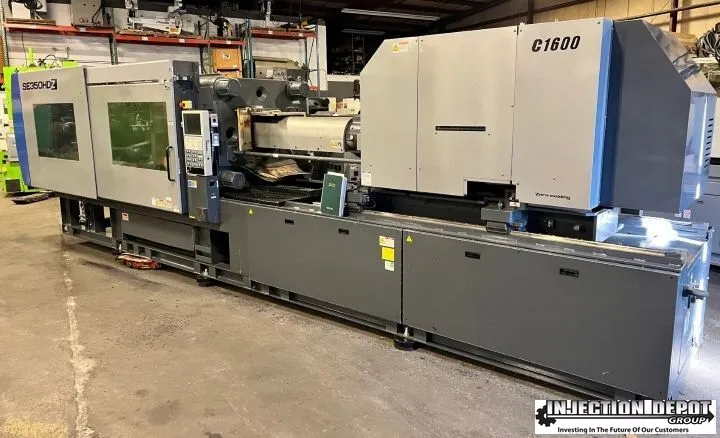

2012 Sumitomo SE350HDZ-1600
Have one to sell?
ConditionUsed
1 available
Robot Interface
Wired for core pull
Air Blow
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 385 T |
| Shot Volume (PS) | 30.2 oz |
| Screw Diameter | 2.48" |
| Maximum Injection Pressure | 25235 psi |
| Maximum Holding Pressure | 25235 psi |
| Screw Speed STD | 250 rpm |
| Screw Speed High Torque | 250 rpm |
| Tie Bar Distance H | 29.9" |
| Tie Bar Distance V | 27.9" |
| Platen Dimension H | 42.13" |
| Platen Dimension V | 40.16" |
| Maximum Daylight | 53.94" |
| Mold Height Min | 15.75" |
| Mold Height Max | 26.38" |
| Ejector Force | 6 T |
| Ejector Stroke | 5.91" |
| Power supply Volts | 230 |
| Injection Orientation | Horz |
| Hours | 77,430 hr. |
| Control | CNC (STEC-480) |
| Dimensions | (L) 24.64 ft. X (W) 5.81 ft X (H) 7.40 ft |
| Weight | 39,909.42 lbs |
Robot Interface
Wired for core pull
Air Blow
