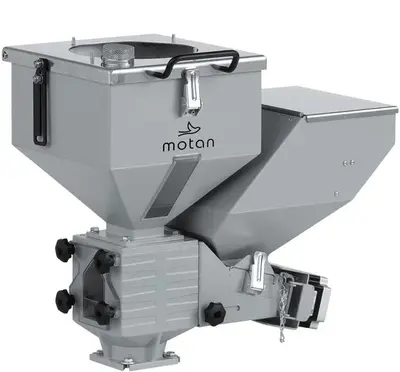

MOTAN MiniColor SG V
Have one to sell?
ConditionNew
1 available
New
The MINICOLOR SG V is auxiliary equipment for injection moulding — more precisely a volumetric additive dosing and mixing unit that integrates at the feed of an injection moulding machine to meter additives into the material stream with high accuracy and create a homogeneous mixture before moulding.
Motan MINICOLOR SG V – Technical Specification Sheet
Equipment Type
Volumetric dosing and mixing unit for injection moulding
Dosing Process
Volumetric – synchronous (mass flow corresponds to recipe)
Number of Dosing Modules
1 or 2 (for additive + main or two additives)
Dosing Capacity (Screw Dosing)
G1S: 0.13 – 4.7 kg/h | G2S: 0.34 – 26.6 kg/h | G3S: 0.7 – 49.2 kg/h
Supply Hopper Volume
12 L standard (screw version)
Power Supply
1/N/PE 100-240 V, 50-60 Hz
Connected Load
350 W (standard) / 500 W (with mixer option)
Weight
~15 kg (1 module) / ~25 kg (2 modules)
Colour / Finish
RAL 7040 grey / electro-polished
Mounting
Mounted directly on machine feed throat
Control System
VOLUnet MSG / VOLUnet MSG mix with touch panel, Ethernet, recipe storage
Applications
Injection moulding and extrusion – accurate additive dosing and mixing for colour and material consistency
Optional Features
Mixer module for improved additive distribution • Ethernet integration for automation • Quick-change colour cassette design
