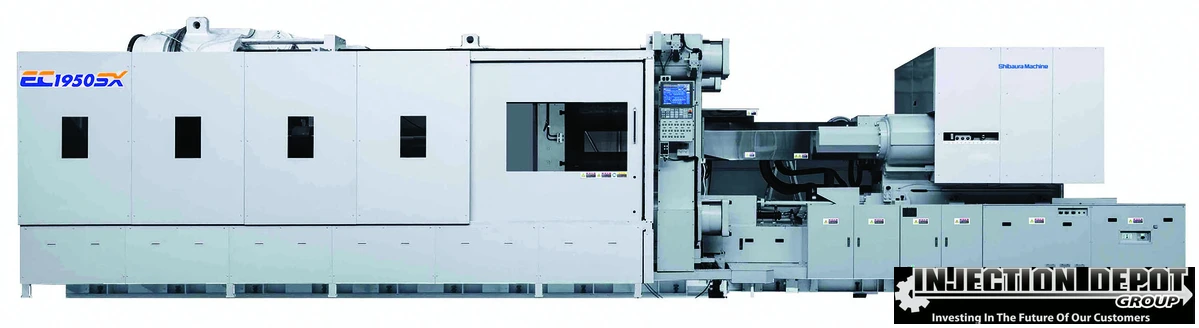

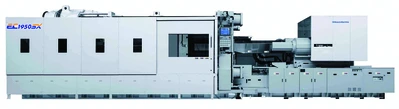

Shibaura Machine EC1750SXIIIWV70-i120 AT

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionNew
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC1750SXIIIWv70-i120AT
Condition:
Build To Order
Status:
For Sale

Description

In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market

TypeAll ElectricAll Electric
Clamping Force Tonnage19501,799.857 t
Barrel CodeATAT
Shot Volume (PS)213 oz6,038.4 g
Shot Volume (PE)169 oz4,791.1 g
Screw Diameter4.52"114.81 mm
Maximum Injection Pressure26100 psi
Maximum Holding Pressure21700 psi
Screw Speed STD110 rpm110 RPM
Screw Speed High Torque78 rpm78 RPM
Injection Rate STD1450 cm3/sec41.1 m³/min.
Screw Torque STD9150 NxM9150 NxM
Screw Torque High Speed13700 NxM13700 NxM
Plasticizing Capacity (PS) STD144 g/sec4,082.3 g
Plasticizing Capacity (PS) High Torque103 g/sec2,920 g
Nozzle Touch Force10.4 T9.435 t
Tie Bar Distance H72.8"1,849.1 mm
Tie Bar Distance V65.4"1,661.2 mm
Platen Dimension H102.4"2,601 mm
Platen Dimension V92.5"2,349.5 mm
Clamp Stroke66.9"1,699.3 mm
Maximum Daylight126"3,200.4 mm
Mold Height Min31.5"800.1 mm
Mold Height Max59.1"1,501.1 mm
Ejector Force48.5 T43.999 t
Ejector Stroke11.8"299.72 mm
Power supply Volts230230
Main Breaker Electric Capacity500 va
Heater Capacity67.9 kw67.9 kW
ControlCNCCNC
Dimensions45.1 x 12.5 x 11.6 Feet45.1 x 12.5 x 11.6 Feet
Weight145 US Ton145 US Ton
