The ZERMA ZBS 600 is a compact single-shaft shredder engineered for the efficient processing of sprues, small parts, and production waste. Designed for in-house recycling, it offers a cost-effective and reliable solution for reducing waste volume, making reintegration into the production process simple and efficient.
Key Features:
Single-Shaft Design with Tangential Infeed: The ZBS 600 is equipped with a single-shaft rotor and tangential infeed, eliminating the need for a hydraulic feeding system. This simplifies operation and reduces ongoing maintenance requirements.
* Compact Footprint: Its smaller size allows the ZBS 600 to be installed easily into existing production environments, making it ideal for applications where floor space is limited.
* Low-Speed, High-Torque Operation: Running at low speed, the shredder delivers high torque to ensure effective size reduction while minimizing energy consumption and noise levels.
* Robust Construction: Built with outboard bearings and a durable rotor, the ZBS 600 is designed to withstand continuous operation and demanding recycling conditions.
* Easy Maintenance: The machine’s user-friendly design provides quick access for cleaning, rotor inspection, and servicing, reducing downtime and improving efficiency.

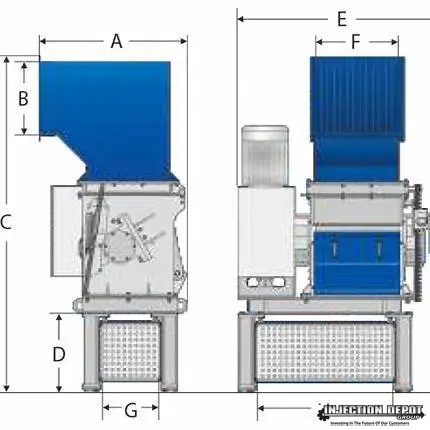

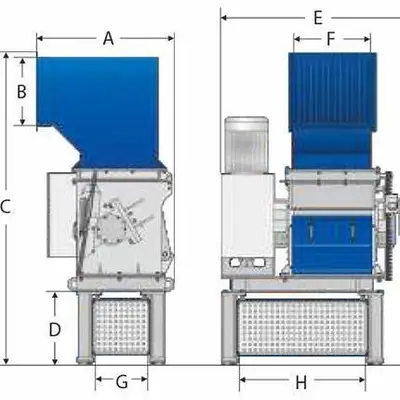

ZERMA ZBS 600 Specifications
Rotor width: 560 mm (22")
Rotor diameter: 310 mm (12")
Rotor speed: 61 rpm
Drive capacity: 11 kW (≈ 15 HP)
Screen size: ≥ 16 mm
Number of rotor knives: 26
Rows of stator knives: 1
Effective working area: 490 × 550 mm
