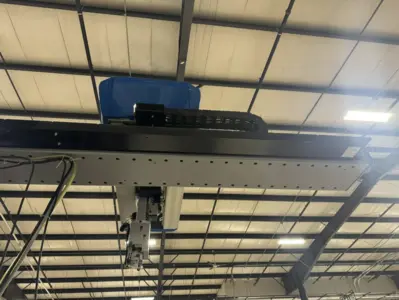

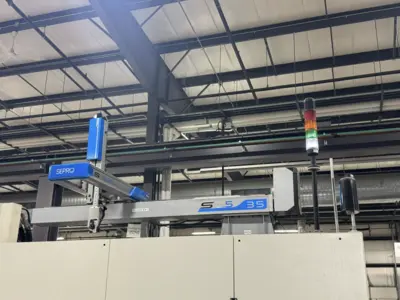

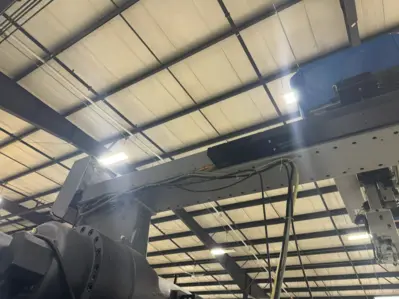

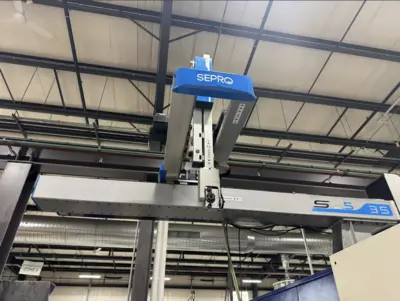

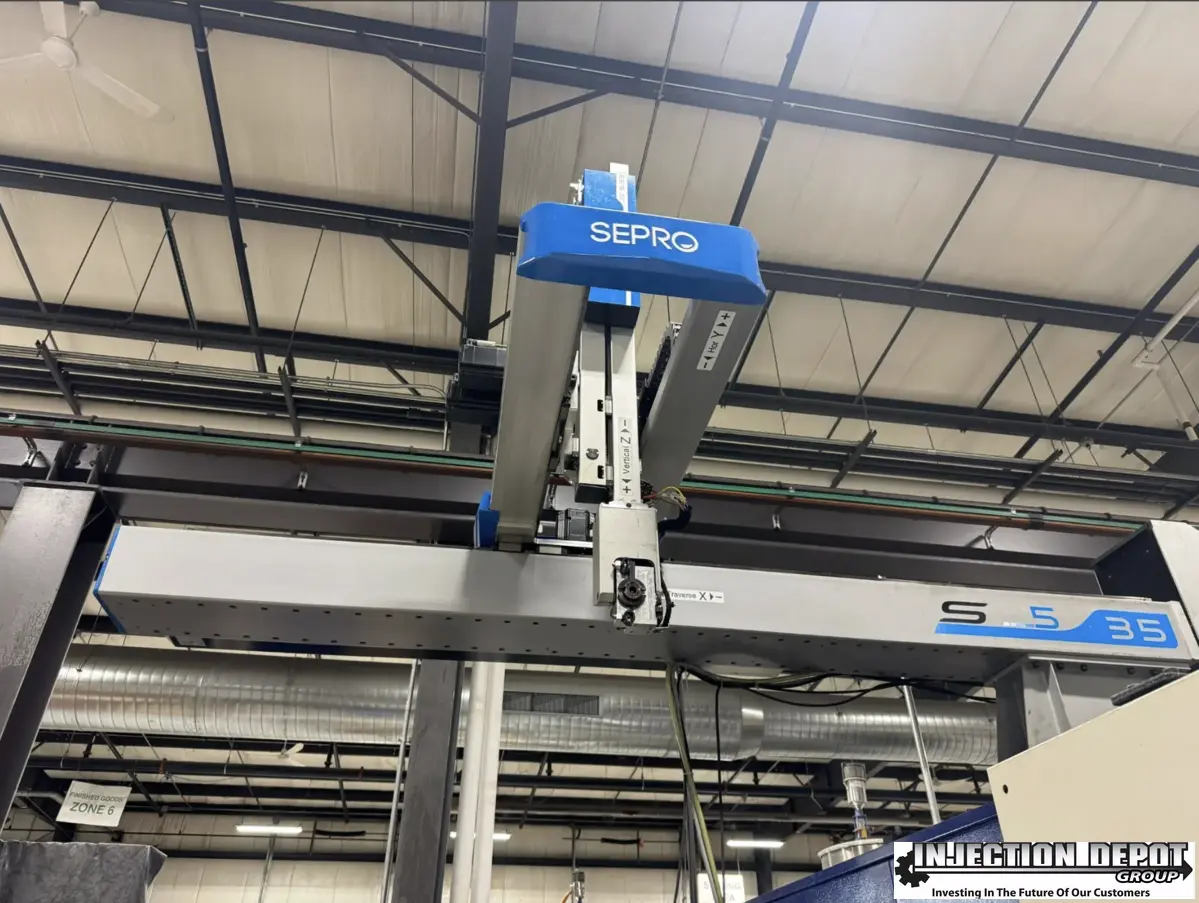

2015 Sepro S5-35 Servo Robot

Sepro Servo Robot – Model S5-35 (SR S5-35 S3)

- Horizontal Movement of Carriage on Beam X

Stroke: 2500 mm

Motorization: Servo-controlled brushless

Instantaneous linear speed: 3.50 m/s

Stop control: PTP linear numerical

Display resolution: 0.1 mm

Positioning precision DLx: ±0.5 mm

Placing repeatability rx: ±0.1 mm

Unloading side: See layout drawing (file B)

Spacer between robot and platen: Fixed under beam

- Horizontal Demoulding Movement Y

Stroke: 900 mm

Motorization: Servo-controlled brushless

Instantaneous linear speed: 3.00 m/s

Stop control: PTP linear numerical

Display resolution: 0.1 mm

Positioning precision DLy: ±0.5 mm

Placing repeatability ry: ±0.1 mm

- Vertical Movement Z

Stroke: 1800 mm

Motorization: Servo-controlled brushless

Instantaneous linear speed: 4.00 m/s

Stop control: PTP linear numerical

Display resolution: 0.1 mm

Positioning precision DLz: ±0.5 mm

Placing repeatability rz: ±0.1 mm
