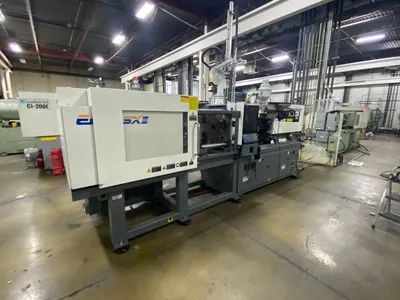

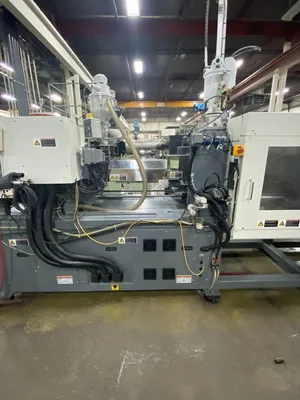

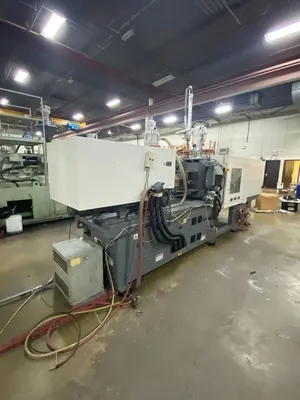

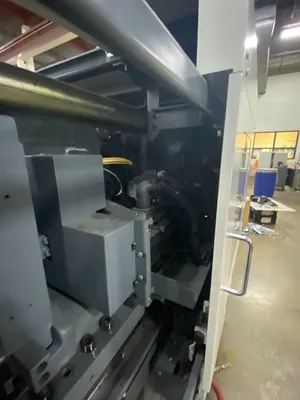

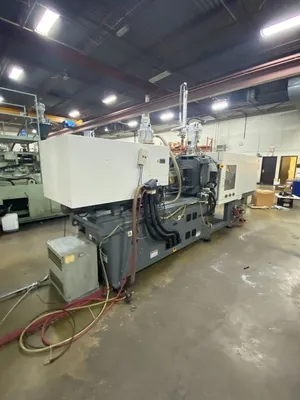

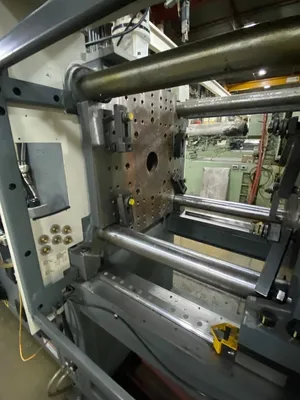

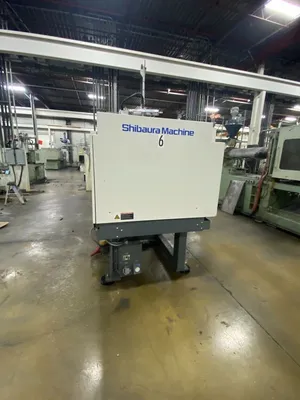

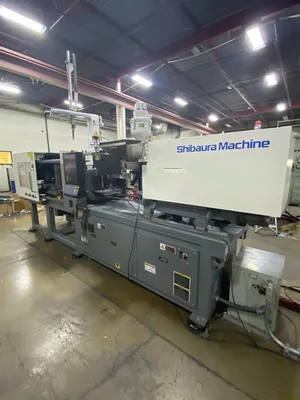

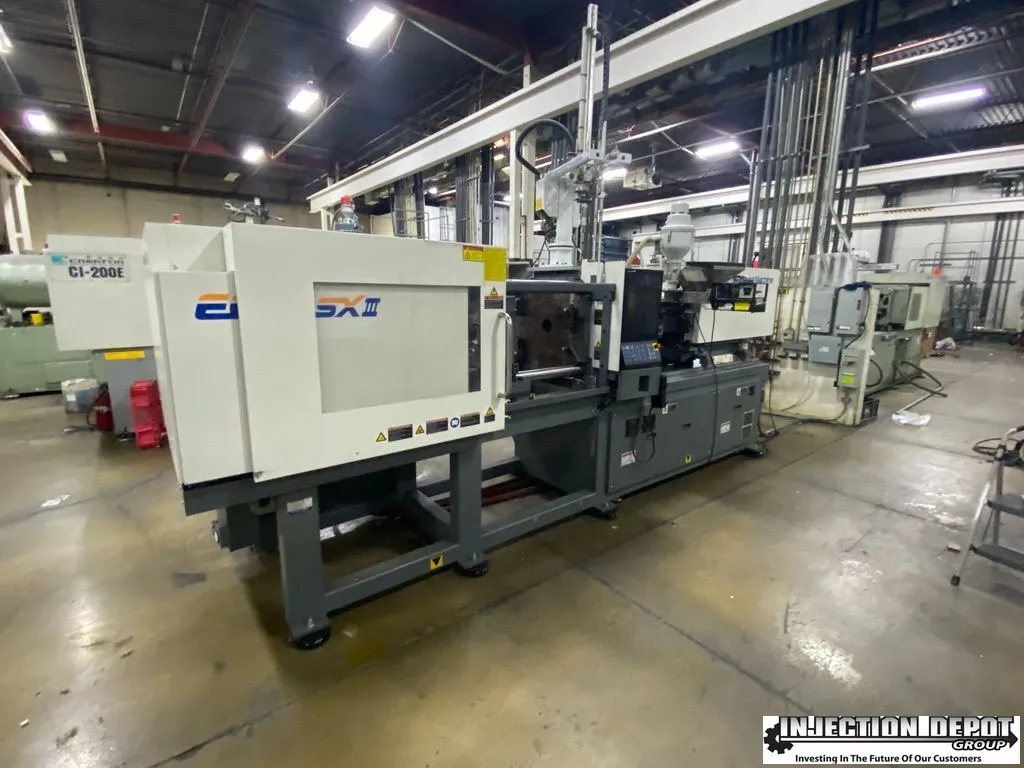

2020 Shibaura Machine EC140SXIIIV70-U34-4A

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionUsed
1 available
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC140SXIIIV70-U34-4A
Year:
2020
Status:
For Sale
TypeAll ElectricAll Electric
Clamping Force Tonnage140 T127.006 t
Barrel Code4A4A
Shot Volume (PS)6.4 oz180 g
Shot Volume (PE)5.1 oz144.9 g
Screw Diameter1.57"39.878 mm
Maximum Injection Pressure29000 psi
Maximum Holding Pressure29000 psi
Screw Speed STD320 rpm320 RPM
Injection Rate STD15.3 ft³/min.0.4 m³/min.
Injection Rate High Speed30.7 ft³/min.0.9 m³/min.
Screw Torque STDlbflbf
Plasticizing Capacity (PS) STDOZ/Sec31.2 g
Nozzle Touch Force2 T1.814 t
Tie Bar Distance H20.1"510.54 mm
Tie Bar Distance V18.1"459.74 mm
Platen Dimension H28.3"718.82 mm
Platen Dimension V26.4"670.56 mm
Clamp Stroke15.7"398.78 mm
Maximum Daylight37.4"949.96 mm
Mold Height Min7.1"180.34 mm
Mold Height Max21.7"551.18 mm
Ejector Force3.3 T2.994 t
Ejector Stroke3.54"89.916 mm
Main Breaker Electric Capacity48 kva
Heater Capacity11.2 kva11.2 kV·A
Injection OrientationHorzHorz
ControlCNC (INJECTVISOR V 70)CNC (INJECTVISOR V 70)
Dimensions16.7 x 4.7 x 5.616.7 x 4.7 x 5.6
Weight11,60011,600

Dual Air Blow Auto Purge
Ejector Motor with Brake
Heater Band Failure Alarm
Hopper Throat Temperature Control
Selectable Signal Output (x6)
Mold Ejector Plate Monitor
Pneumatic Mold Valve Gate (1 Zone)
Simultaneous Screw Charging and Clamp
SPI Robot Interface Recept (50pin/Euromap67)
USB Memory Port

Screw Anti-Wear DBG Design & Tungsten Carbide Barrel in lieu of standard
