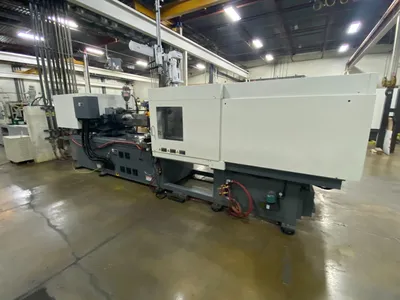

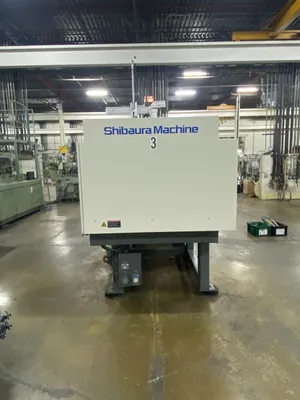

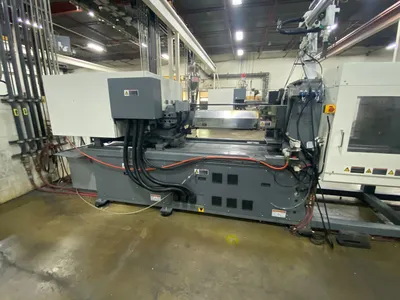

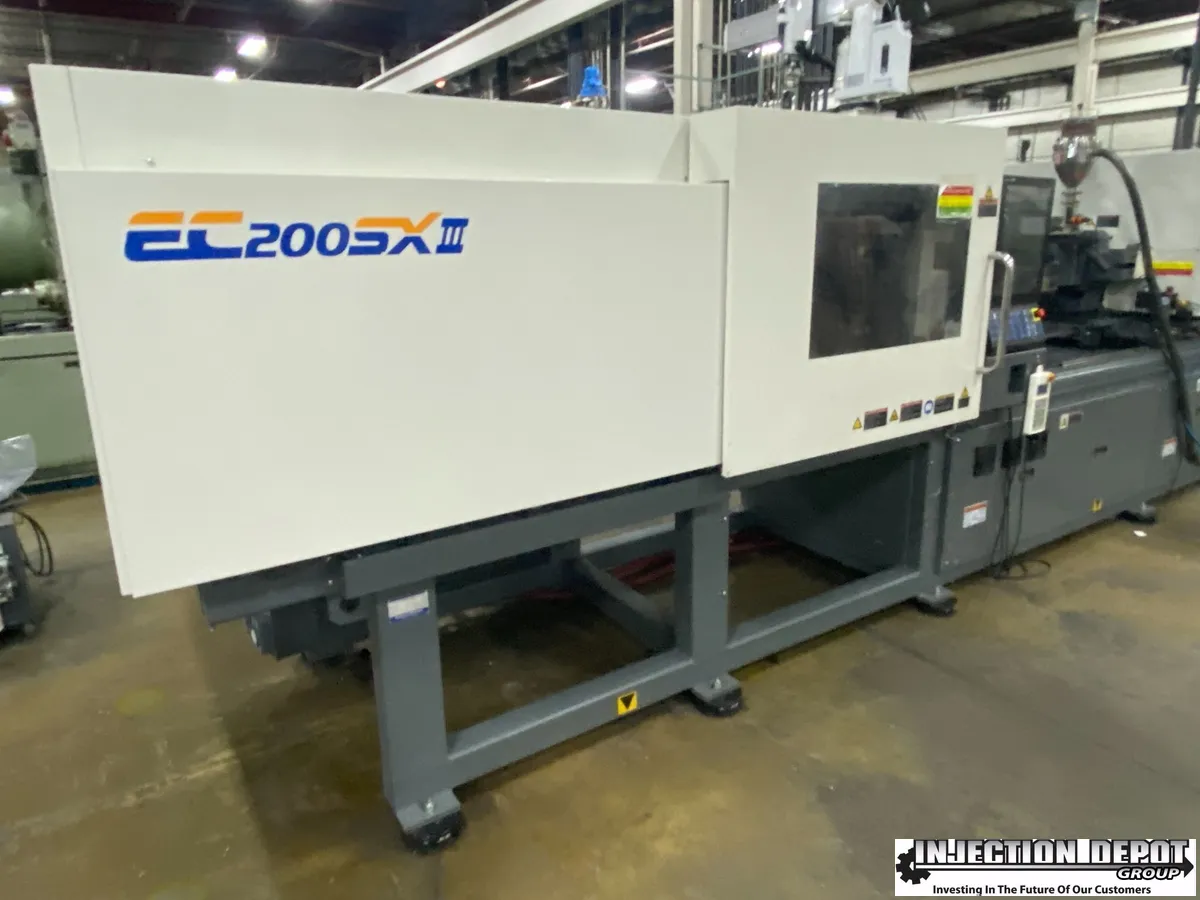

2020 Shibaura Machine EC200SXIIV70-U48-8B
Have one to sell?
ConditionUsed
1 available
Screw Anti-Wear DBG Design & Tungsten Carbide Barrel in lieu of standard
Dual Air Blow Auto Purge
Pneumatic Core Pull-Single (Timer Only)
Ejector Motor with Brake
Heater Band Failure Alarm
Hopper Throat Temperature Control
Selectable Signal Output (x6)
Mold Ejector Plate Monitor
Pneumatic Mold Valve Gate (1 Zone)
Simultaneous Screw Charging and Clamp
SPI Robot Interface Recept (50pin/Euromap67)
USB Memory Port
Imperial
| Clamping Force Tonnage | 198 T |
| Barrel Code | 8B |
| Shot Volume (PS) | 15.4 oz |
| Shot Volume (PE) | 12.2 oz |
| Screw Diameter | 2.17" |
| Maximum Injection Pressure | 23900 psi |
| Maximum Holding Pressure | 23900 psi |
| Screw Speed STD | 230 rpm |
| Injection Rate STD | 23.2 ft³/min. |
| Screw Torque STD | 1048 |
| Plasticizing Capacity (PS) STD | OZ/sec |
| Nozzle Touch Force | 0.33 T |
| Tie Bar Distance H | 22" |
| Tie Bar Distance V | 20.1" |
| Platen Dimension H | 31.1" |
| Platen Dimension V | 29.1" |
| Clamp Stroke | 17.7" |
| Maximum Daylight | 41.3" |
| Mold Height Min | 7.87" |
| Mold Height Max | 23.6" |
| Ejector Force | 5.5 T |
| Ejector Stroke | 5.12" |
| Main Breaker Electric Capacity | 61 kva |
| Heater Capacity | 15.8 kw |
| Injection Orientation | Horz |
| Control | CNC (INJECTVISOR V 70) |
| Dimensions | 19.9 x 5.1 x 5.9 FT |
| Weight | 16,000 lbs |
Screw Anti-Wear DBG Design & Tungsten Carbide Barrel in lieu of standard
Dual Air Blow Auto Purge
Pneumatic Core Pull-Single (Timer Only)
Ejector Motor with Brake
Heater Band Failure Alarm
Hopper Throat Temperature Control
Selectable Signal Output (x6)
Mold Ejector Plate Monitor
Pneumatic Mold Valve Gate (1 Zone)
Simultaneous Screw Charging and Clamp
SPI Robot Interface Recept (50pin/Euromap67)
USB Memory Port
