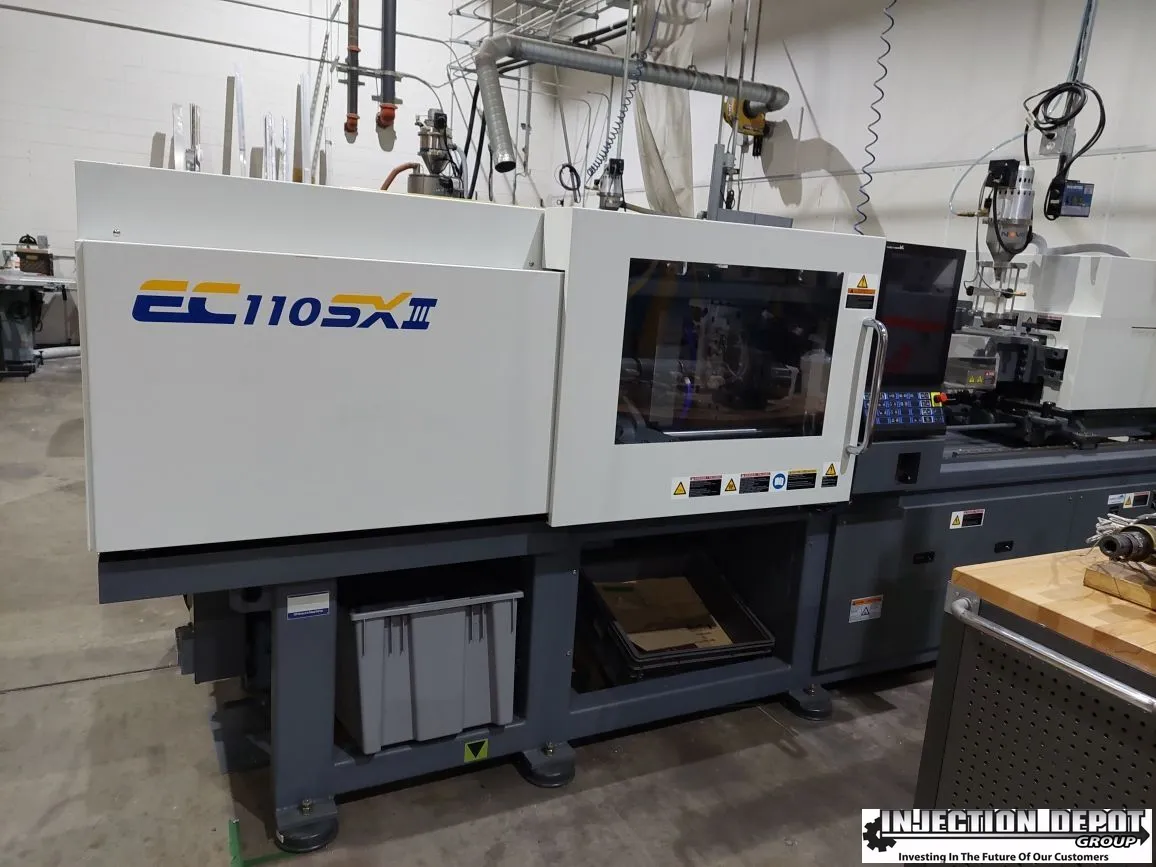

2023 Shibaura MachineEC110SXIIIV70-U34-4B
Have one to sell?
ConditionUsed
1 available
injection Molding Machine Configuration
1. Hydraulic Core Pull – Dual Program with Electrical Interface
2. Dual Air Blow
3. Pneumatic Core Pull – Single, Timer Only
4. SPI Robot Interface Receptacle (50-pin / Euromap 67)
5. Programmable Output Signals – 6 Total
6. MachiNetCloud IIoT Connection – Capable
7. Certified Machine Model: EC110SXIIIV70-U34-4B (8.11 oz shot size)
8. Transformer – Not Required
9. Pneumatic Mold Valve Gate (1 Zone)
10. Vibration Mounting Pads
11. 3-Piece Free Flow Screw Tip (in lieu of standard)
12. Screw Anti-Wear Single Flight Design & Tungsten Carbide Barrel (in lieu of standard)
13. Screw & Barrel Conversion Kit – From 4B to 2Y
14. Intrusion Circuit
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 110 T |
| Barrel Code | 4B |
| Shot Volume (PS) | 8.1 oz |
| Shot Volume (PE) | 6.5 oz |
| Screw Diameter | 1.77" |
| Maximum Injection Pressure | 22900 psi |
| Maximum Holding Pressure | 22900 psi |
| Screw Speed STD | 285 rpm |
| Screw Torque STD | lbf・ft |
| Plasticizing Capacity (PS) STD | 1.2 oz |
| Nozzle Touch Force | 2 T |
| Tie Bar Distance H | 18.1" |
| Tie Bar Distance V | 16.1" |
| Platen Dimension H | 26" |
| Platen Dimension V | 24" |
| Clamp Stroke | 13.8" |
| Maximum Daylight | 35.4" |
| Mold Height Min | 7.71" |
| Mold Height Max | 21.7" |
| Ejector Force | 3.3 T |
| Ejector Stroke | 3.54" |
| Power supply Volts | 230 |
| Main Breaker Electric Capacity | 100 |
| Heater Capacity | 11.9 kw |
| Injection Orientation | Horz |
| Hours | 537 hr. |
| Machine under power | Under Power no Mould in Machine |
| Control | CNC (INJECTVISOR V 70) |
| Dimensions | 16.1 x 4.2 x 5.4 FT |
| Weight | 9400 lbs |
injection Molding Machine Configuration
1. Hydraulic Core Pull – Dual Program with Electrical Interface
2. Dual Air Blow
3. Pneumatic Core Pull – Single, Timer Only
4. SPI Robot Interface Receptacle (50-pin / Euromap 67)
5. Programmable Output Signals – 6 Total
6. MachiNetCloud IIoT Connection – Capable
7. Certified Machine Model: EC110SXIIIV70-U34-4B (8.11 oz shot size)
8. Transformer – Not Required
9. Pneumatic Mold Valve Gate (1 Zone)
10. Vibration Mounting Pads
11. 3-Piece Free Flow Screw Tip (in lieu of standard)
12. Screw Anti-Wear Single Flight Design & Tungsten Carbide Barrel (in lieu of standard)
13. Screw & Barrel Conversion Kit – From 4B to 2Y
14. Intrusion Circuit
