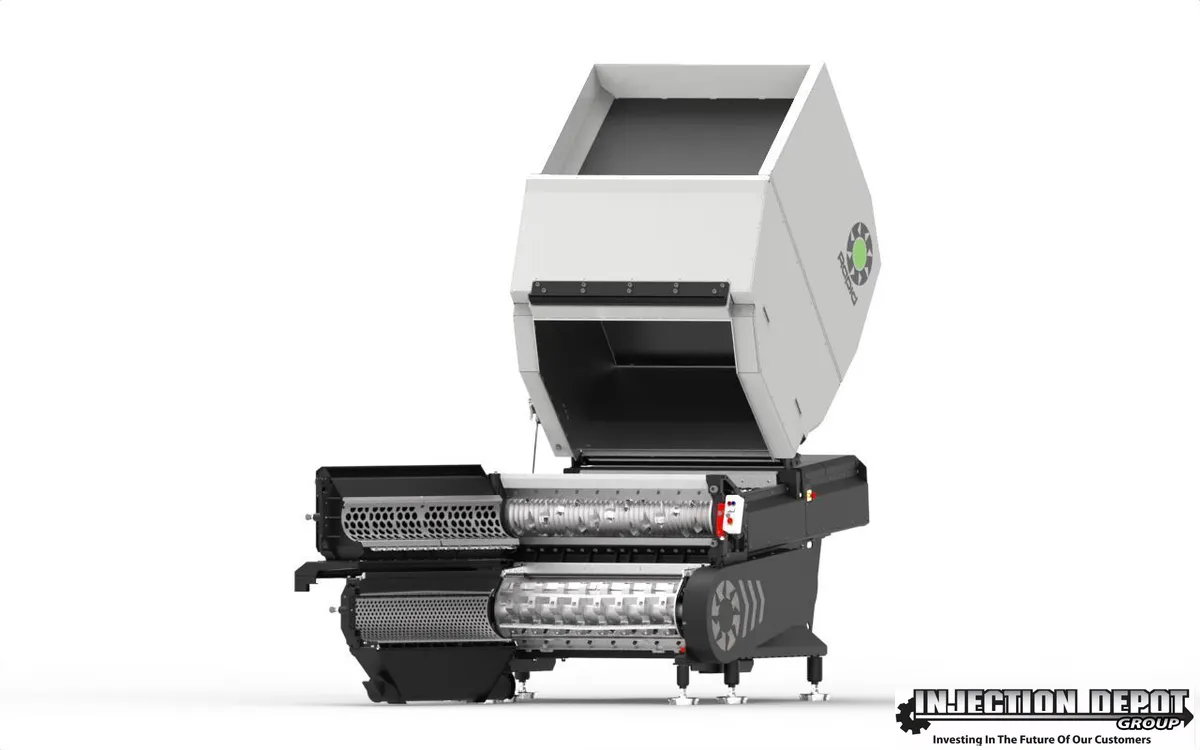

ONE-step solution. Fully integrated granulator into the Raptor chassis. Based on the bespoken Rapid 400 series. Bolted modular design enables easy change of wear parts. Available for Raptor 1350.
> High quality regrind
The Rapid cutting technique, comprised of clean scissors-cutting action and constant cutting circle, produces granules of a uniform size with minimal dust content even with the toughest materials.
> Low energy consumption
With a genuine double-scissor knife configuration, where both the fixed and rotating knives are angled, the force needed to cut the plastic is significantly reduced. This in combination with a large torque means that a smaller motor can be used thereby saving energy costs.
> Pre-adjustable knives
With a fixture, presetting the knives outside the machine is easy, providing fast and convenient servicing. The optional grinding fixture makes resharpening of knives easy and guarantees the correct knife angles.
> Constant Cutting Circle (CCC)
Rapid granulators and shredders deliver precise, consistent cuts every time. This design ensures even wear, improved efficiency, and reduced energy consumption, making our machines durable, reliable, and ideal for heavy-duty applications.
Rotor
Rotor diameter, (inch) 13 3/4"
Rotor, type 5-blade open
Rotating knives 10 (5x2)
Cutterhouse
Tangential, dim (inch) 48"x14.2"
Fixed knives 6 (3x2)
Transmission
Motor, standard (HP) 22
Optional motor alternatives, (HP) 15, 20, 30
Screen
Screen hole diam., (inch) 0.3 (option: 0.2, 0.4, 1.5)
