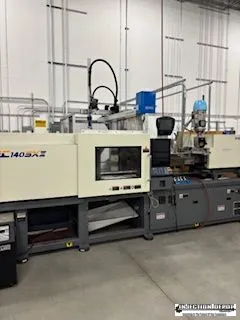

2018 Toshiba Machine EC140SXIIV70-A
Have one to sell?
ConditionUsed
1 available
Sepro Robot, moreto loader, conevor for sale separately for addition cost
Imperial
| Type | All Electric |
| Clamping Force Tonnage | 143 T |
| Barrel Code | 4A |
| Shot Volume (PS) | 5.1 oz |
| Shot Volume (PE) | 4.1 oz |
| Screw Diameter | 1.42" |
| Maximum Injection Pressure | 35800 psi |
| Maximum Holding Pressure | 35800 psi |
| Screw Speed STD | 350 rpm |
| Tie Bar Distance H | 20.1" |
| Tie Bar Distance V | 18.1" |
| Platen Dimension H | 28.3" |
| Platen Dimension V | 26.4" |
| Clamp Stroke | 15.7" |
| Maximum Daylight | 37.4" |
| Mold Height Min | 7.1" |
| Mold Height Max | 21.7" |
| Ejector Force | 3.3 T |
| Ejector Stroke | 3.54" |
| Injection Orientation | Horz |
| Hours | 3,538 hr. |
| Machine under power | Under power running with mould |
| Control | CNC (INJECTVISOR V 70) |
Sepro Robot, moreto loader, conevor for sale separately for addition cost
