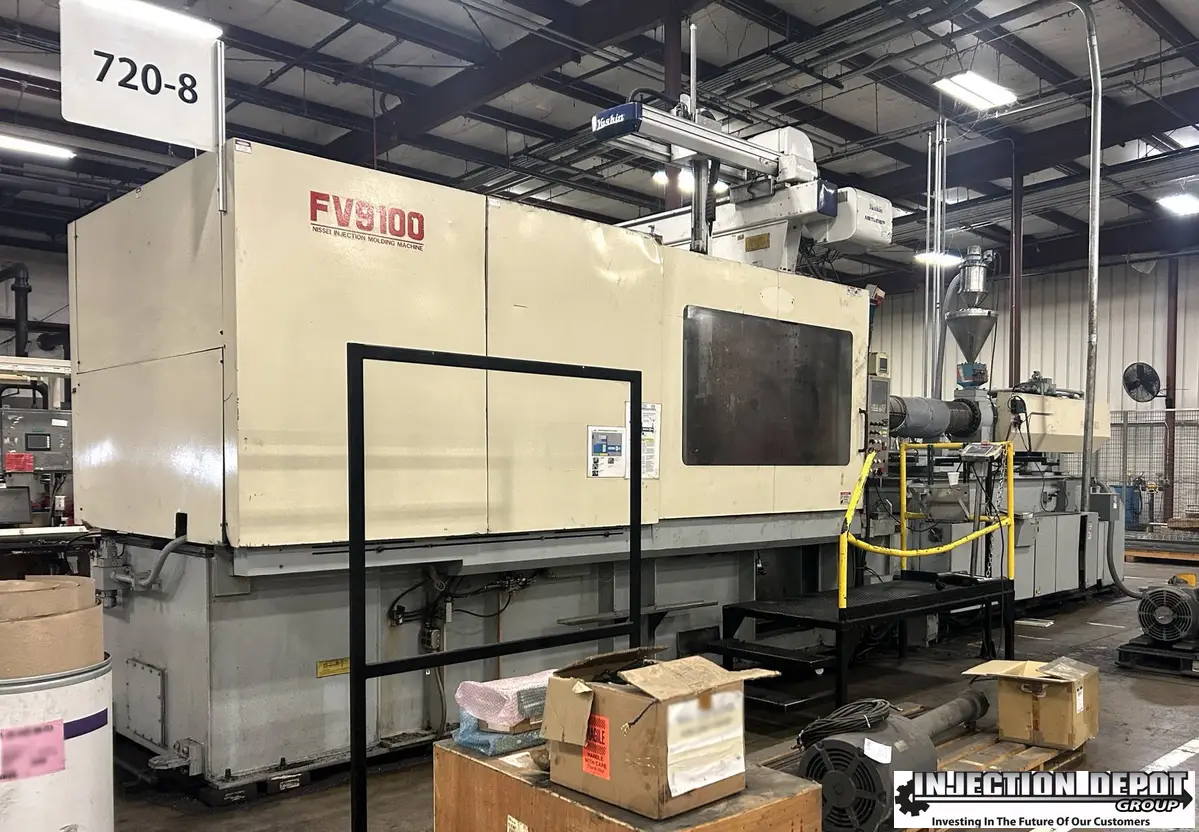

2002 720 TON FV9100-400L NISSEI
Have one to sell?
ConditionUsed
1 available
| Yushin Robot may be purchased separately for an additional cost |
Imperial
| Type | Servo Hydraulic |
| Clamping Force Tonnage | 720 T |
| Shot Volume (PS) | 168 oz |
| Screw Diameter | 4.41" |
| Maximum Injection Pressure | 24225 psi |
| Maximum Holding Pressure | 24225 psi |
| Screw Speed STD | 0 rpm |
| Tie Bar Distance H | 43.3" |
| Tie Bar Distance V | 43.3" |
| Platen Dimension H | 60.6" |
| Platen Dimension V | 60.6" |
| Clamp Stroke | 37.4" |
| Maximum Daylight | 75.2" |
| Mold Height Min | 17.7" |
| Mold Height Max | 37.4" |
| Ejector Stroke | 7.9" |
| Power supply Volts | 460 |
| Injection Orientation | Horz |
| Hours | 95,387 hr. |
| Control | CNC (NC9300T) |
| Yushin Robot may be purchased separately for an additional cost |
