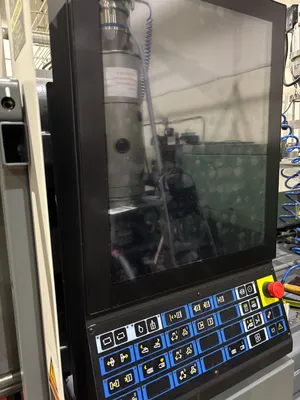

2023 SHIBAURA MACHINE

Have one to sell?
705-627-5456
sales@injectiondepot.ca
ConditionUsed
1 available
Have one to sell?

Overview

Type:
HORIZONTAL INJECTION MOULDING MACHINES
Manufacturer:
Shibaura Machine
Model:
EC110SXIIIV70-U34 4B
Year:
2023
Status:
For Sale
Clamping Force Tonnage110 T99.79 t
Shot Volume (PS)8.1 oz229.9 g
Shot Volume (PE)6.5 oz184.8 g
Screw Diameter1.77"44.958 mm
Maximum Injection Pressure22900 psi
Maximum Holding Pressure22900 psi
Screw Speed STD285 RPM285 rpm
Injection Rate STD19.4 ft³/min.0.5 m³/min.
Injection Rate High Speed38.8 ft³/min.1.1 m³/min.
Screw Torque STD516516
Plasticizing Capacity (PS) STD1.2 oz34 g
Nozzle Touch Force2 T1.814 t
Tie Bar Distance H18.11"459.99 mm
Tie Bar Distance V16.14"409.96 mm
Platen Dimension H26"660.4 mm
Platen Dimension V24"609.6 mm
Clamp Stroke13.8"350.52 mm
Maximum Daylight35.4"899.16 mm
Mold Height Min7.1"180.34 mm
Mold Height Max21.7"551.18 mm
Ejector Force3.3 T2.994 t
Ejector Stroke3.54"89.916 mm
Power supply Volts220220
Main Breaker Electric Capacity125125
Heater Capacity11.9 kW11.9 kw
Injection OrientationHorzHorz
Machine under powerUnder power running with mouldUnder power running with mould
ControlCNC (INJECTVISOR V 70)CNC (INJECTVISOR V 70)
Dimensions16.1 x 4.2 x 5.416.1 x 4.2 x 5.4
Weight94,600 lbs94,600 lbs
