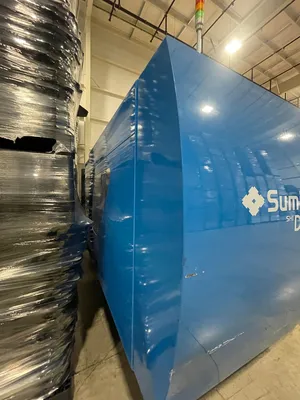

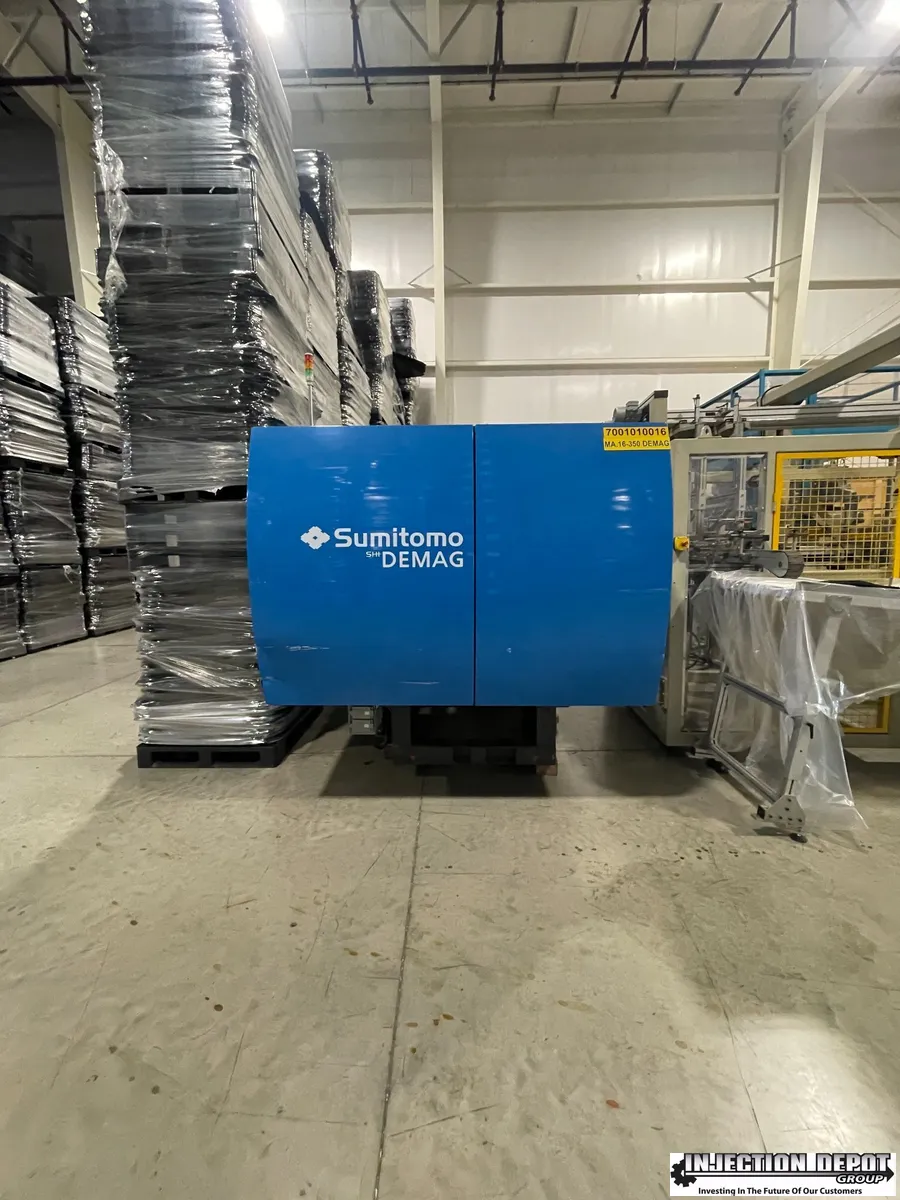

2017 Sumitomo SE350EV-A-C220HD
Have one to sell?
ConditionUsed
1 available
Imperial
| Clamping Force Tonnage | 393 T |
| Barrel Code | A |
| Tie Bar Distance H | 32.68" |
| Tie Bar Distance V | 32.68" |
| Platen Dimension H | 44.88" |
| Platen Dimension V | 44.88" |
| Maximum Daylight | 58.1" |
| Mold Height Min | 13.78" |
| Mold Height Max | 27.56" |
| Ejector Force | 6.74 T |
| Ejector Stroke | 8.66" |
| Power supply Volts | 230 |
| Heater Capacity | 38.03 kw |
| Injection Orientation | Horz |
| Control | CNC (NC-10) |
| Dimensions | 24.42 ft × 6.83 ft × 7.08 ft |
| Weight | Aprox 39,400 lbs |
