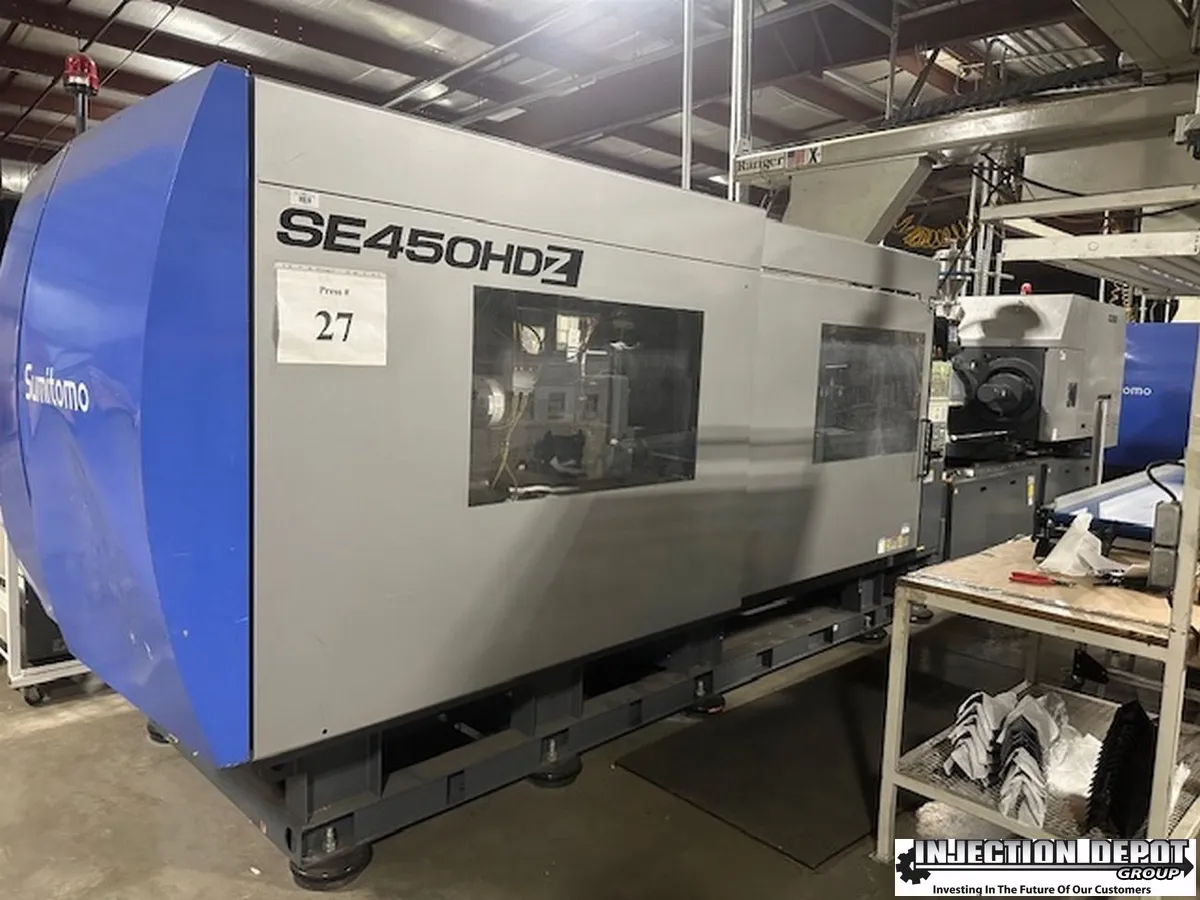

2015 SUMITOMO SE450HDZ_C3000
Have one to sell?
ConditionUsed
1 available
Air blow
Robot interface
Imperial
| Clamping Force Tonnage | 500 T |
| Shot Volume (PS) | 48 oz |
| Tie Bar Distance H | 34.25" |
| Tie Bar Distance V | 32.28" |
| Platen Dimension H | 50.79" |
| Platen Dimension V | 47.24" |
| Clamp Stroke | 31.5" |
| Maximum Daylight | 62.99" |
| Mold Height Min | 17.72" |
| Mold Height Max | 31.5" |
| Ejector Stroke | 6.89" |
| Power supply Volts | 230 |
| Heater Capacity | 39.4 kw |
| Injection Orientation | Horz |
| Hours | 14,960 hr. |
| Machine under power | Under power running with mould |

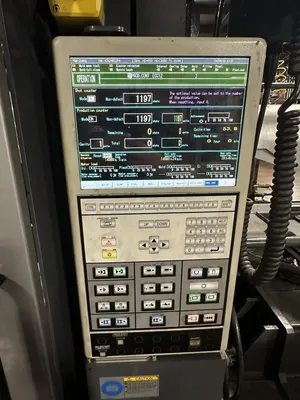

| Control | CNC (Sumitomo) |
| Weight | 55,000 Lbs |
Air blow
Robot interface
