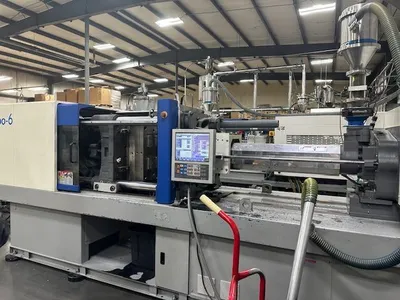

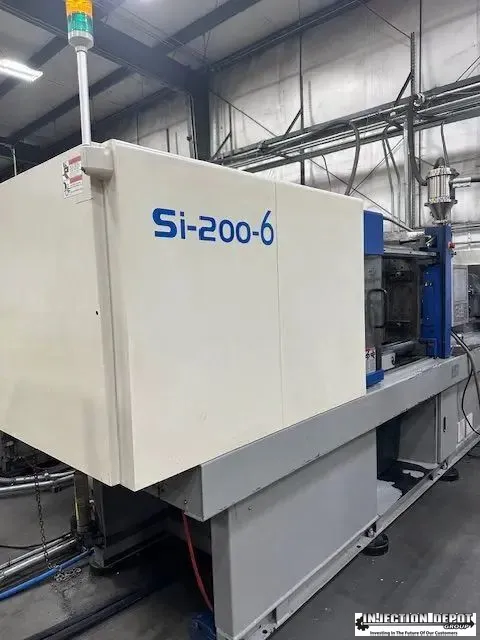

2015 Toyo SI-200-6S-H300EU
Have one to sell?
ConditionUsed
1 available
Wired for Dual Core Pull
Robot Interface
Imperial
| Clamping Force Tonnage | 200 T |
| Shot Volume (PS) | 17 oz |
| Tie Bar Distance H | 24.04" |
| Tie Bar Distance V | 24.04" |
| Platen Dimension H | 30.7" |
| Platen Dimension V | 30.7" |
| Clamp Stroke | 18.5" |
| Mold Height Min | 7.87" |
| Mold Height Max | 23.62" |
| Ejector Force | 4.72 T |
| Injection Orientation | Horz |
| Hours | 24,204 hr. |
| Machine under power | Under power running with mould |
| Control | CNC (System 600) |
Wired for Dual Core Pull
Robot Interface
